AU-XBR753

Smart, Energy Saving Detection for your spaces

Download Brochure PDF
Request a Quote
AU-XBR753_ANGLE.

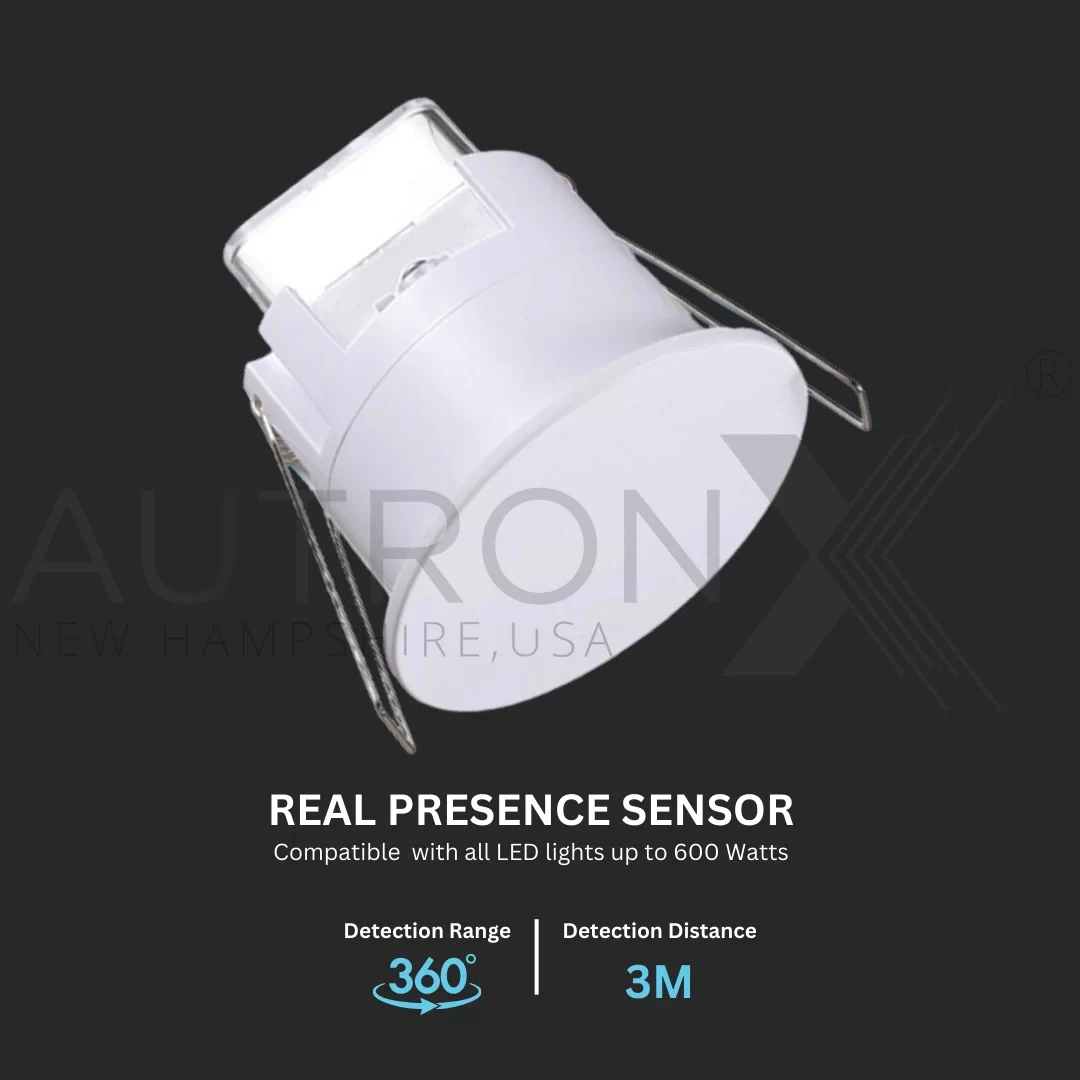

AU-XBR753_ANGLE1

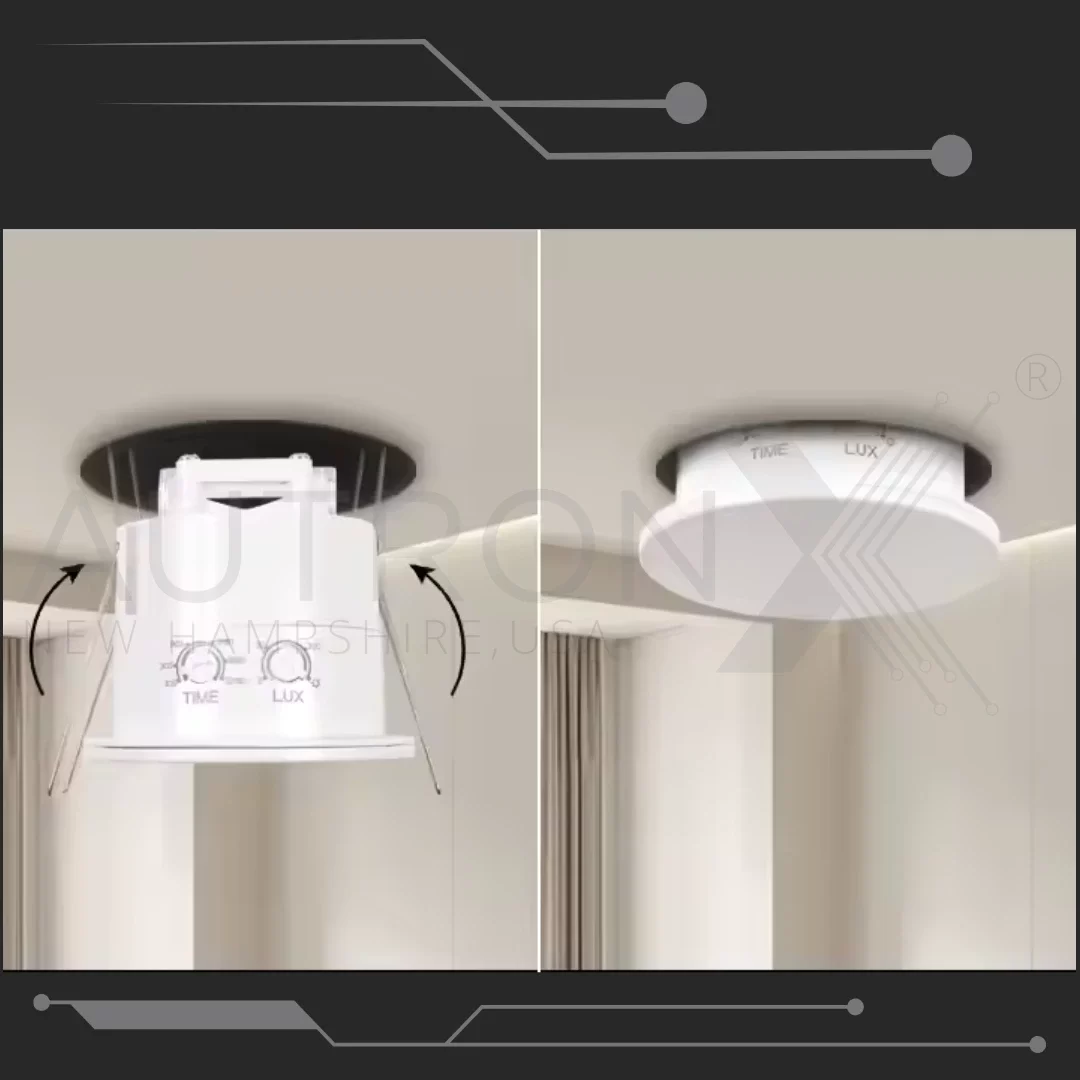

AU-XBR753_Flush_Mounting

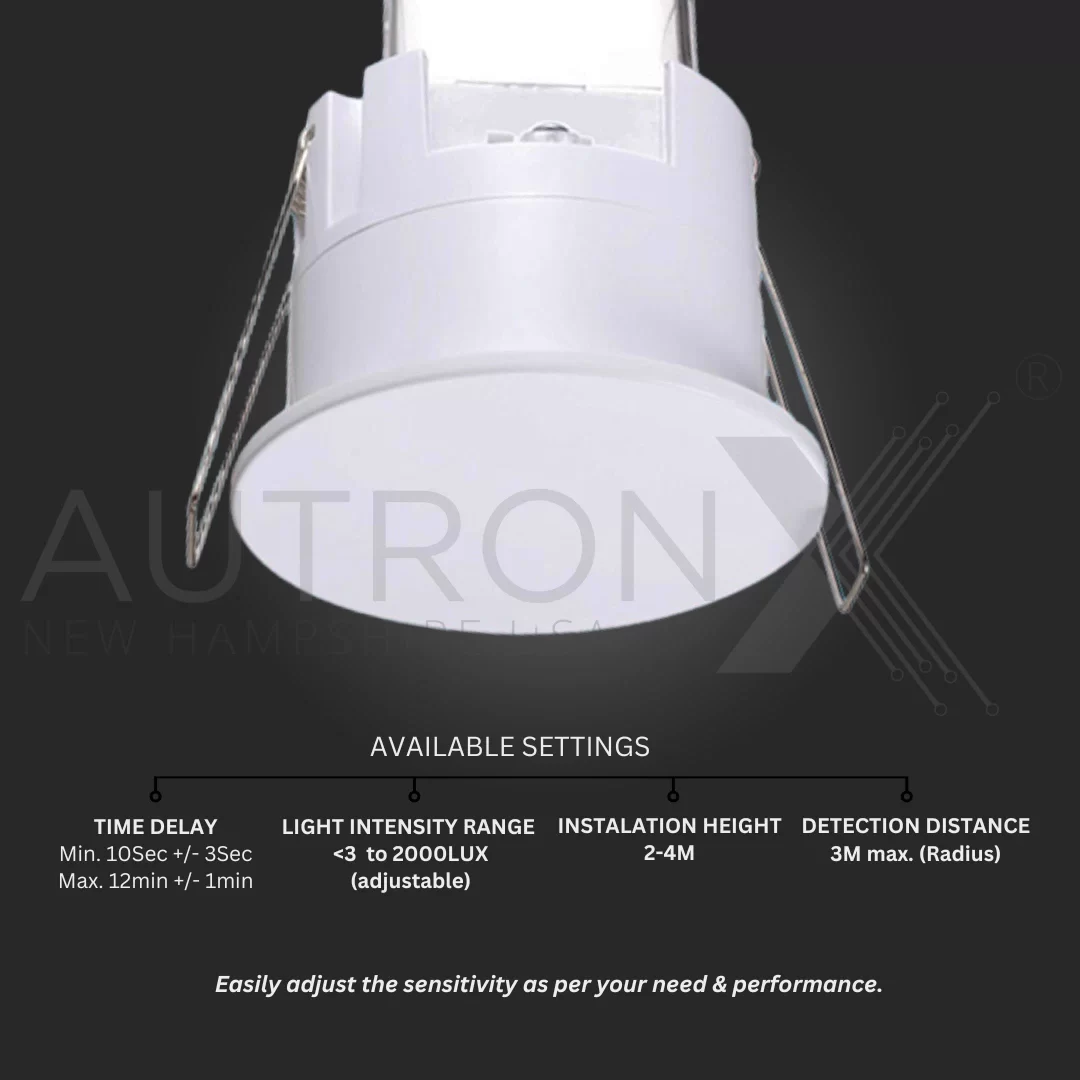

AU-XBR753_Settings

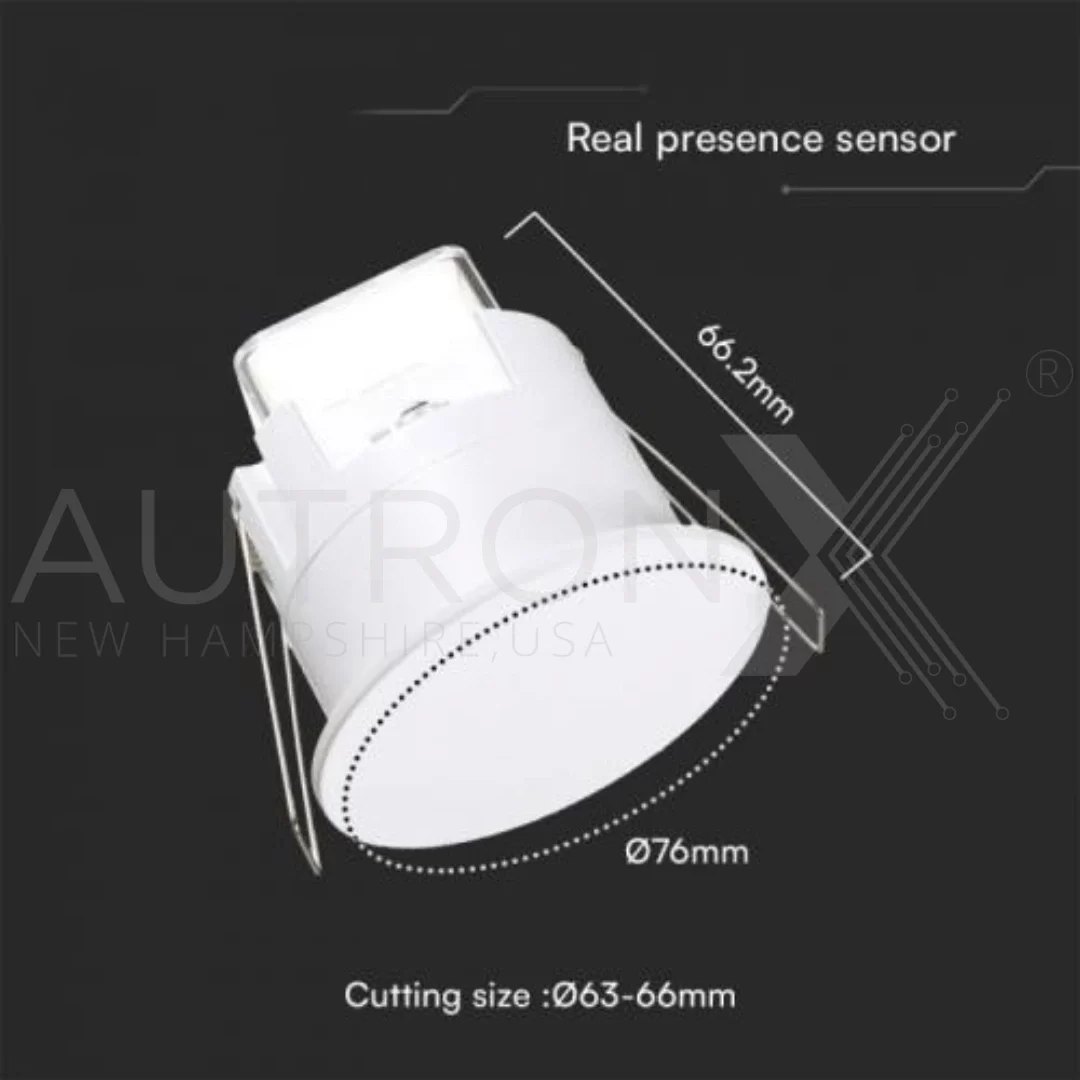

AU-XBR753_Size

AU-XBR753

The AU-XBR753 Microwave Real Presence Sensor is an advanced motion and presence detection device that utilises 24GHz continuous wave radar technology within the ISM band. Designed for high precision, it detects subtle human presence, including breathing, ensuring lights stay on as long as someone is in the area.

Built with an integrated circuit and energy-saving automation, this sensor ensures convenience, safety, and reduced energy consumption. Its reliable detection through walls, glass, and thin barriers makes it ideal for various indoor environments such as classrooms, offices, yoga centres, and kitchens.

Download Datasheet
Download Catalogue

Breathing Detection

Recognises even micro-movements like human breathing to keep lights on continuously.

Day & Night Operation

Smart ambient light detection allows the sensor to function optimally in both daylight and low-light conditions.

Adjustable Precision

Offers 360° detection with up to 3–4.5m range while consuming less than 1W power.

Technical Specifications

ModelAU-XBR753
Power Source110–240V AC, 50/60Hz
HF System24GHz CW Radar, ISM Band
Transmission Power<10mW
Time Delay10s ±3s (min) to 12min ±1min (max)
Rated Load1200W (Incandescent), 600W (LED)
Detection Angle360°
Detection DistanceUp to 3m radius from ceiling
Ambient Light DetectionAdjustable: <3 to 2000 LUX
Installation HeightCeiling mount: 2–4m
Power ConsumptionApprox. 0.9W
No. of Wires3 Wires
Ingress ProtectionIP54

Key Functional Modes

Ambient Brightness Adaptation

Adapts lighting based on ambient brightness to optimise energy usage.

  • Works during both day and night depending on LUX settings.
  • “SUN” mode allows operation in bright light; “3” mode enables low-light activation.
  • Ideal for areas needing intelligent light control.
Motion & Breath-Based Presence Sensing

Detects not just movement but human presence through subtle breathing signals.

  • Activates lighting when a person is within 3m range (breath detection).
  • Detects motion up to 4.5m and switches lights on accordingly.
  • Maintains illumination as long as presence is sensed.
Adjustable Time Delay

Provides flexibility in setting how long lights stay on after movement.

  • Time delay ranges from 10 seconds to 12 minutes.
  • Timer resets with every new detection within the delay window.
  • Customisable to user preference for different spaces.

Installation Guide

  • Switch off power and remove the transparent cover.
  • Connect wires as per the wiring diagram.
  • Reattach the transparent cover securely.
  • Fold the sensor’s metal springs upward and insert into ceiling cutout or box.
  • Release the spring and turn on power to test the installation.

Troubleshooting & FAQs

1
Why doesn’t the load activate after installation?
Check the power supply and verify whether the indicator light responds after motion. Ensure ambient light settings are appropriate and voltage is within range.
2
The sensor has poor sensitivity. What should I check?
Ensure the ambient temperature is suitable, the target is within detection range, and the installation height matches the recommended 2–4m.
3
The sensor doesn’t turn off automatically. Why?
Check for continuous movement in the detection zone or if the time delay is set to maximum. Also, verify power compatibility.
4
Why is the sensor not responding in daylight?
Ensure the LUX knob is turned to the “SUN” position during testing. Low LUX settings prevent operation under bright light.
5
Can the sensor detect through glass or thin walls?
Yes, the sensor uses 24GHz radar which can penetrate common materials like glass or drywall for effective presence detection.
