AU-XT5
Smart, Energy Saving Detection for your spaces
AU-XT5

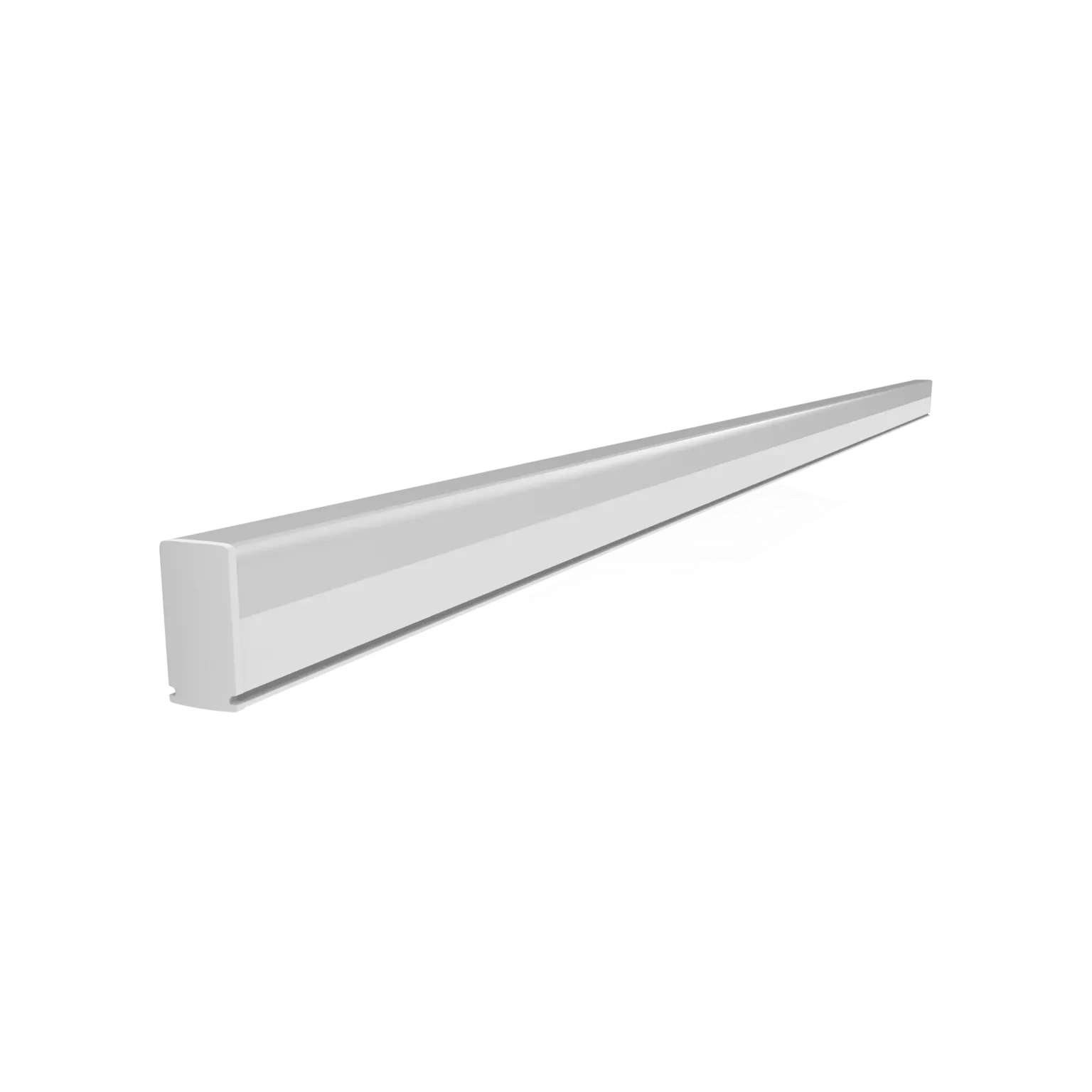

The AutronX AU-XT5 Smart Sensor Tube Light is designed for energy-efficient lighting automation in residential and commercial spaces. Featuring motion detection and dimming capabilities, it switches between automatic and manual modes for versatile control.
Available in 20W and 36W variants, this tube light offers 120 lumens per watt efficiency and a wide detection range of up to 6 metres. Its sleek surface-mounted design ensures easy installation and long-lasting performance with over 40,000 burning hours.
Motion-Activated Lighting Control
Lights up on movement, dims or turns off automatically after inactivity.
High Efficiency & Dual Power Options
Available in 20W and 36W with 120 lumens per watt for energy savings.
User-Friendly Surface Mounting
Designed for self-installation in homes, offices, and commercial spaces.
Technical Specifications
| Model | AU-XT5 |
|---|---|
| Power Source | 220–240V AC, 50/60Hz |
| Wattage | 20W / 36W |
| Power Consumption | 20W / 36W (Bright), 3.6W (Dim) |
| Lighting Output | 120 lumens/Watt |
| Detection Range | Up to 6m |
| Operation | ON with motion, DIM or OFF after 30s no movement |
| Installation Type | Surface Mount & Self Installation |
| Color Temperature | 3000K / 4000K / 6500K |
| Beam Angle | 150° |
| Sensor Type | On-Off & Dimmable |
| Dimensions | 1170mm x 37mm x 22mm (4ft) |
| Power Factor | <0.98 |
| Efficiency | >90% at Full Brightness |
| THD | <15% at Full Brightness |
| Burning Hours | 40,000+ Hours |
| IP Rating | IP20 |
Key Functional Modes
On-Off Mode
Activates when motion is detected- Light switches ON with movement
- Turns OFF after 30 seconds of no motion
- Ensures hands-free lighting automation
Dimming Mode
Maintains ambient light after inactivity- Full brightness when motion is detected
- Dims to 30% after 30 seconds of inactivity
- Reduces power consumption while maintaining visibility
Memory Function Mode
Restores settings after power interruptions- Remembers last active mode post power cut
- Eliminates need for manual resetting
- Provides uninterrupted smart lighting
Installation Guide
- Power Off: Disconnect power before starting installation.
- Mounting: Fix the tube light securely onto the surface using mounting brackets.
- Wiring: Connect power supply wires as per diagram ensuring correct polarity.
- Sensor Positioning: Ensure clear sensor range up to 6m for optimal detection.
- Test Operation: Power on and verify motion detection and dimming modes.
