AU-XSL

Smart, Energy Saving Detection for your spaces

AU-XSL

AU-XSL

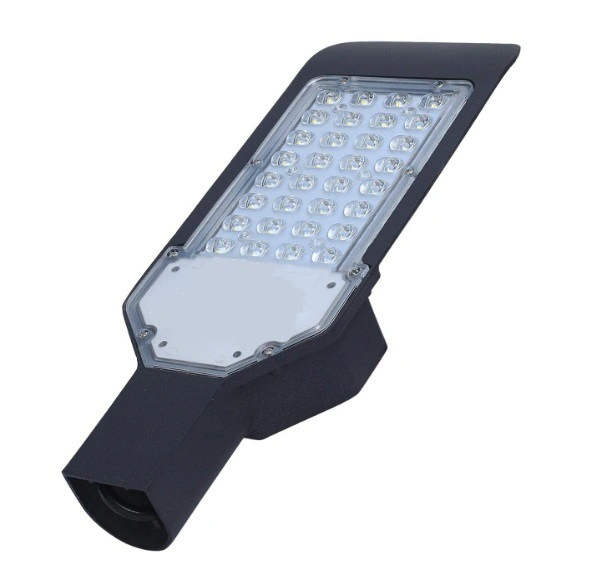

The AutronX AU-XSL is a smart sensor street light designed to automate outdoor lighting with advanced motion detection and dimming features. With power options of 50W and 100W, this street light delivers high-performance illumination while reducing energy consumption.

Equipped with IP65 protection and a durable design, the AU-XSL is suitable for pole-mounted installations in streets, townships, and outdoor commercial areas. Its auto ON-OFF and dimming modes ensure efficient, hands-free lighting control for safety and convenience.

Download Datasheet
Download Catalogue

Motion-Activated Lighting

Turns ON with motion detection and dims or switches OFF after inactivity.

High Efficiency & Power Options

Available in 50W and 100W variants, delivering 120 lumens per watt.

Weatherproof Outdoor Design

IP65-rated with surge protection up to 4kV for reliable outdoor operation.

Technical Specifications

ModelAU-XSL
Power Source220–240V AC, 50/60Hz
Wattage50W / 100W
Power Consumption50W / 100W (Bright), 10W / 30W (Dim)
Lighting Output120 lumens/Watt
Detection RangeUp to 7m
OperationON with motion, DIM or OFF after 30s no movement
Color Temperature3000K / 4000K / 6500K
Beam Angle150°
Sensor TypeOn-Off & Dimmable
ProtectionOver Voltage, Short Circuit, Open Circuit
Surge ProtectionUp to 4kV
Power Factor<0.95 at Full Load
Driver Efficiency>85% at Full Brightness
THD<15% at Full Brightness
Burning Hours35,000+ Hours
IP RatingIP65

Key Functional Modes

On-Off Mode
Activates when motion is detected
  • Light switches ON with movement
  • Turns OFF after 30 seconds of no motion
  • Automates street lighting for safety and energy saving
Dimming Mode
Maintains low-level lighting after inactivity
  • Full brightness on motion detection
  • Dims to 30% after 30 seconds of no movement
  • Enhances visibility while reducing power usage
Memory Function Mode
Restores operation after power interruptions
  • Remembers last mode after power cuts
  • No manual resetting required
  • Ensures continuous lighting automation

Installation Guide

  • Power Off: Disconnect mains power before installation for safety.
  • Mounting: Install the street light onto the pole securely using appropriate hardware.
  • Wiring: Connect according to wiring diagram, ensuring correct polarity and surge protection.
  • Sensor Positioning: Ensure clear line of sight for optimal motion detection up to 7m range.
  • Test Operation: Switch on power and verify motion detection and dimming functions.

Troubleshooting & FAQs

1
Why doesn’t the street light detect motion?
Ensure the sensor is unobstructed and installed at the correct height and angle for the detection area.
2
How does the dimming mode function?
The light operates at full brightness when motion is detected and dims to 30% after 30 seconds of inactivity.
3
Is this light suitable for outdoor use?
Yes, it is IP65 rated for outdoor environments, including streets, townships, and commercial areas.
4
What happens during a power outage?
The built-in memory function restores the last mode automatically after power restoration.
5
Can the light handle power surges?
Yes, it has surge protection up to 4kV to safeguard against voltage spikes.
