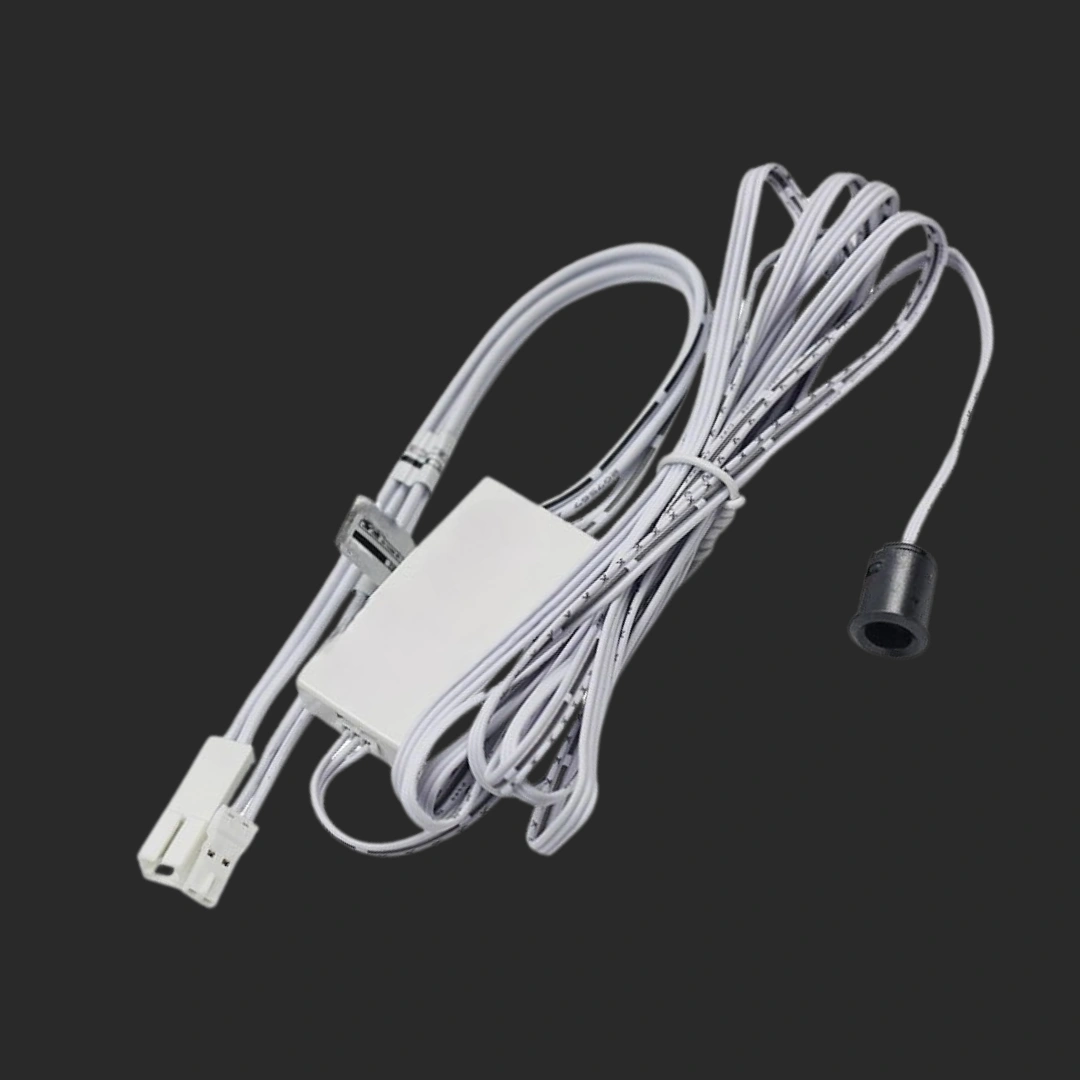

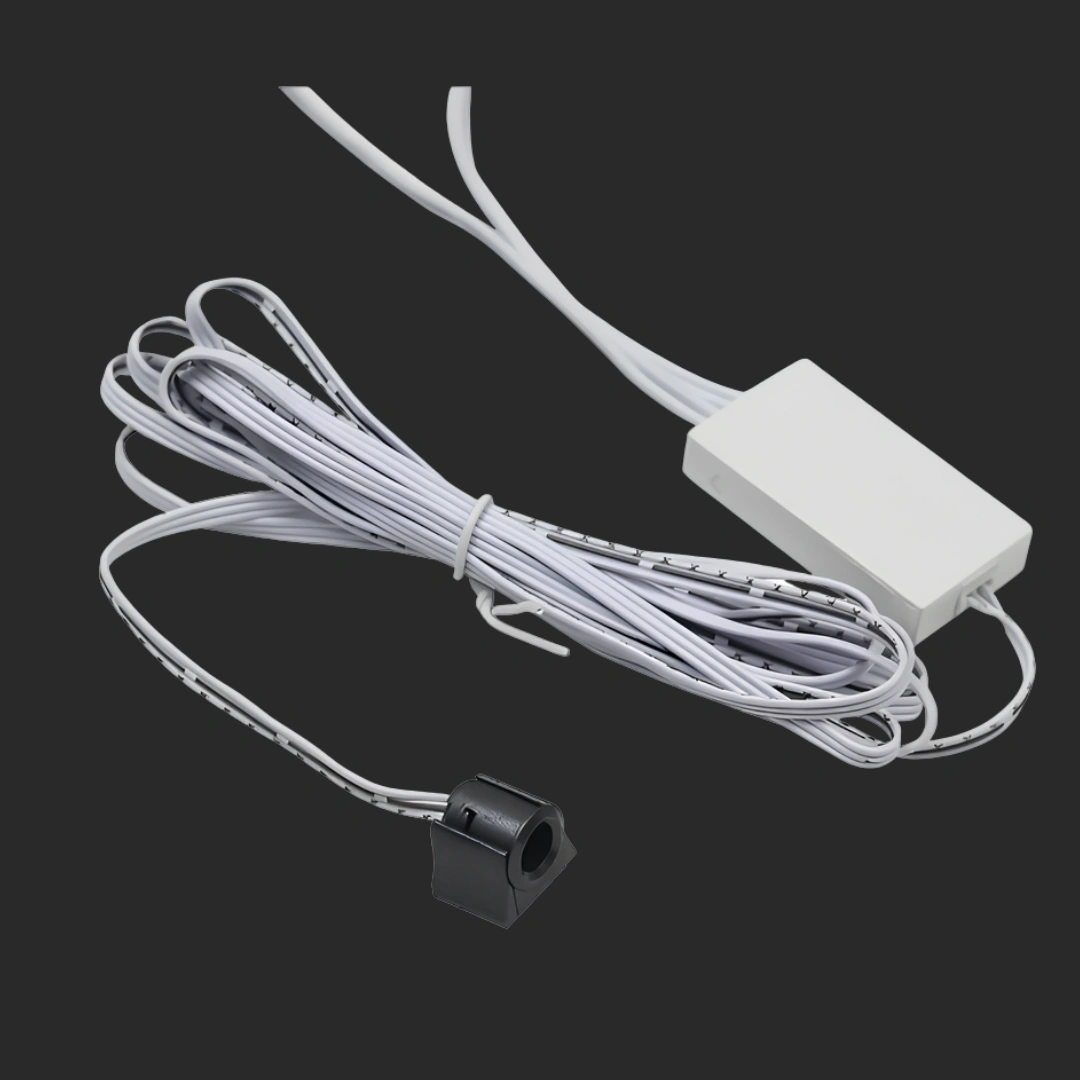

AU-XSD60

The AutronX AU-XSD60 is a DC-powered single door infrared sensor designed for smart cabinet and wardrobe lighting automation. With a sensing range of 5–10cm, it activates lighting systems when a door is opened and switches them off when the door is closed.

Operating on a 12–24V DC input, the AU-XSD60 supports both concealed and surface mounting methods. Its replaceable sensor head ensures durability and cost-effective maintenance, making it ideal for kitchen cabinets, wardrobes, and washrooms.

Download Datasheet
Download Catalogue

Precise Single Door Detection

Monitors door opening within a 5–10cm range for accurate lighting control.

Flexible DC Power Support

Compatible with 12V/60W and 24V/100W LED loads for various setups.

Replaceable Sensor Head

Easy maintenance by replacing only the sensor head without full unit replacement.

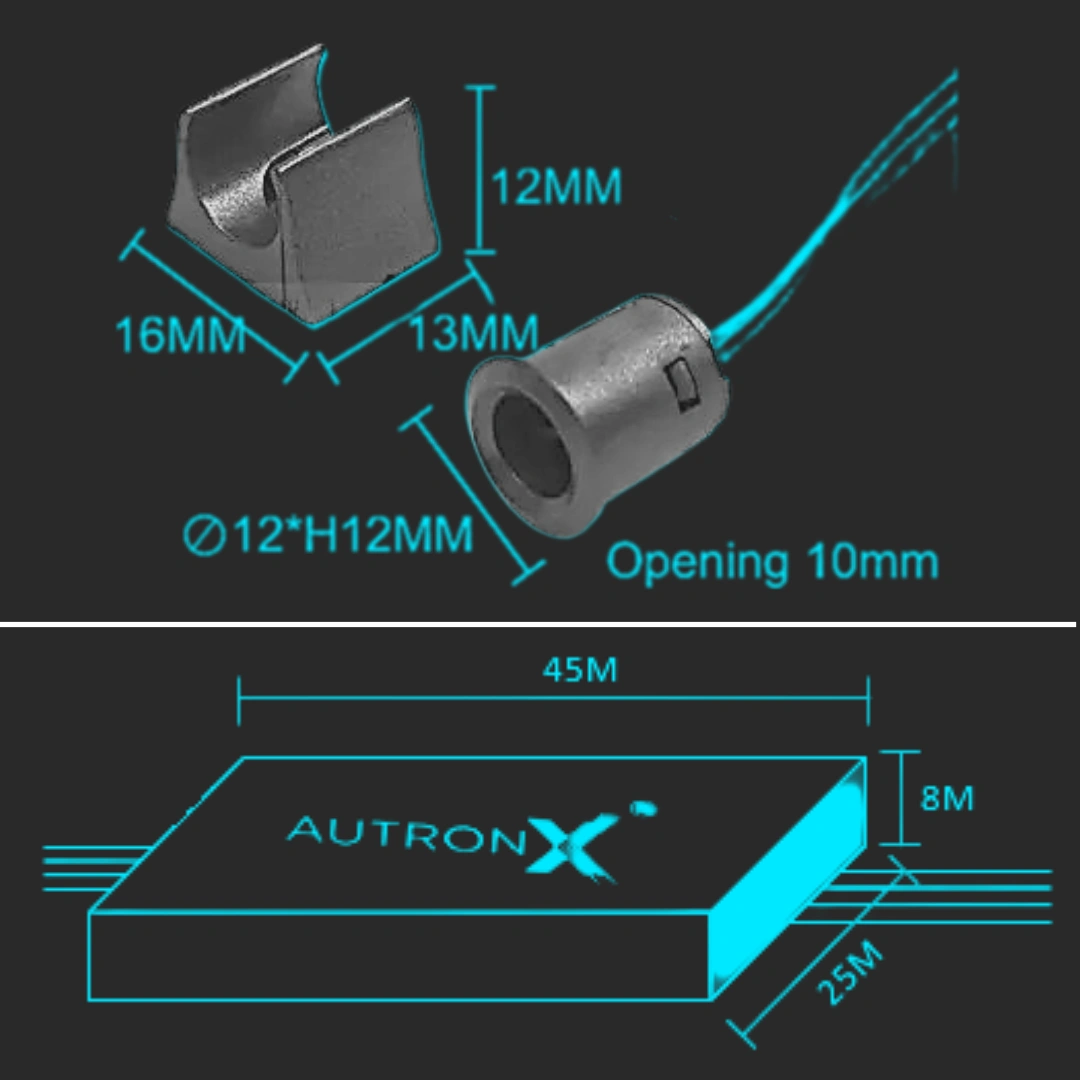

Technical Specifications

ModelAU-XSD60
Product NameSingle Door Sensor
Input Power SupplyDC 12–24V
Sensing Range5–10cm
Maximum Load12V–60W / 24V–100W
Sensor Head Wire Length2 metres
Operating ModeDoor Sensing Mode
Installation MethodConcealed / Surface Mount

Key Functional Modes

Single Door Activation

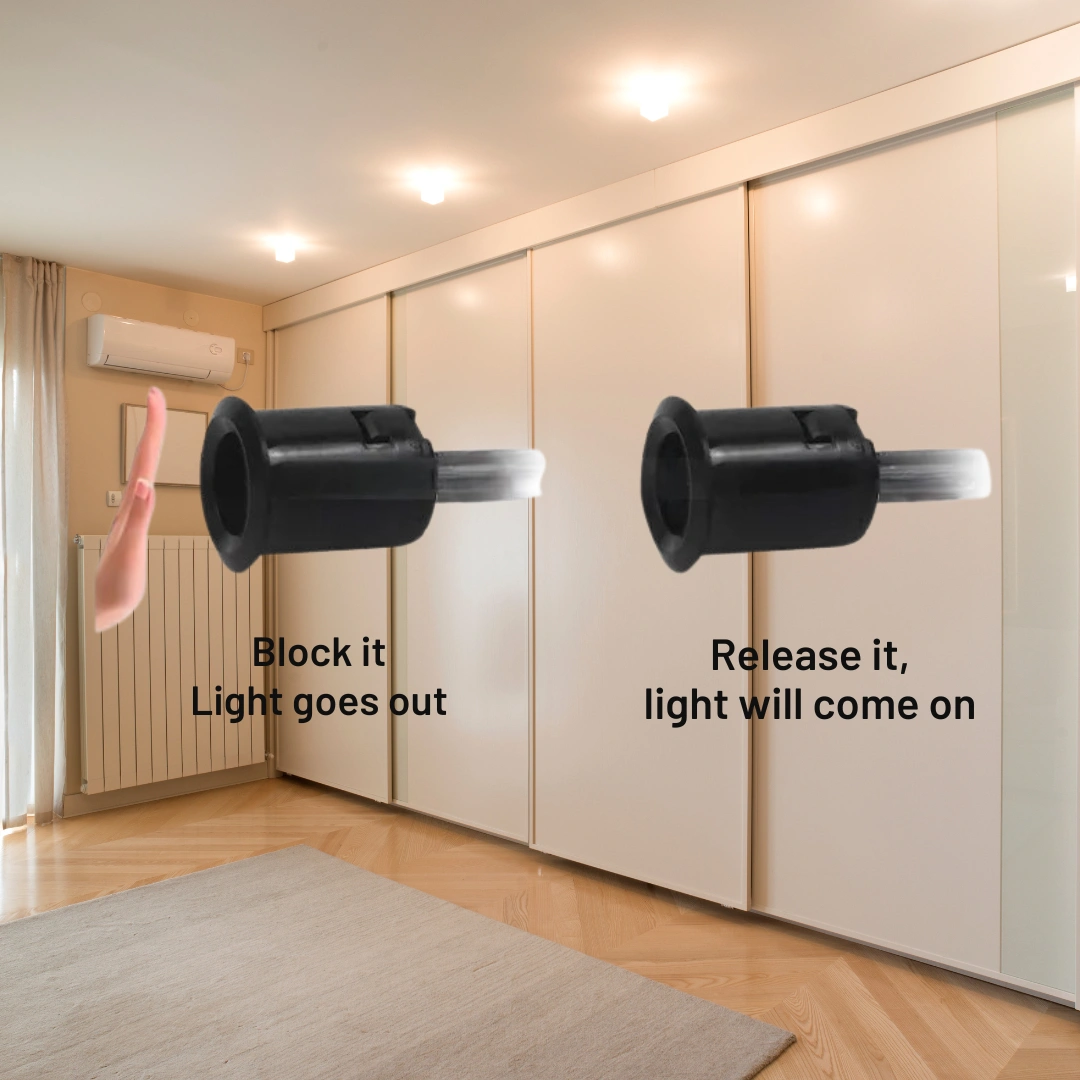

Lights up when door opens, turns off when closed
  • Instant response within 5–10cm range
  • Energy-saving operation
  • Ideal for cabinets and wardrobes
DC Power Mode
Operates with 12V or 24V DC input
  • Supports varying LED load capacities
  • Easy integration with low-voltage systems
  • Reliable performance in furniture automation
Service-Friendly Design
Simplifies maintenance through replaceable sensor heads
  • Reduces downtime and costs
  • Extends product lifespan
  • Convenient for installers

Installation Guide

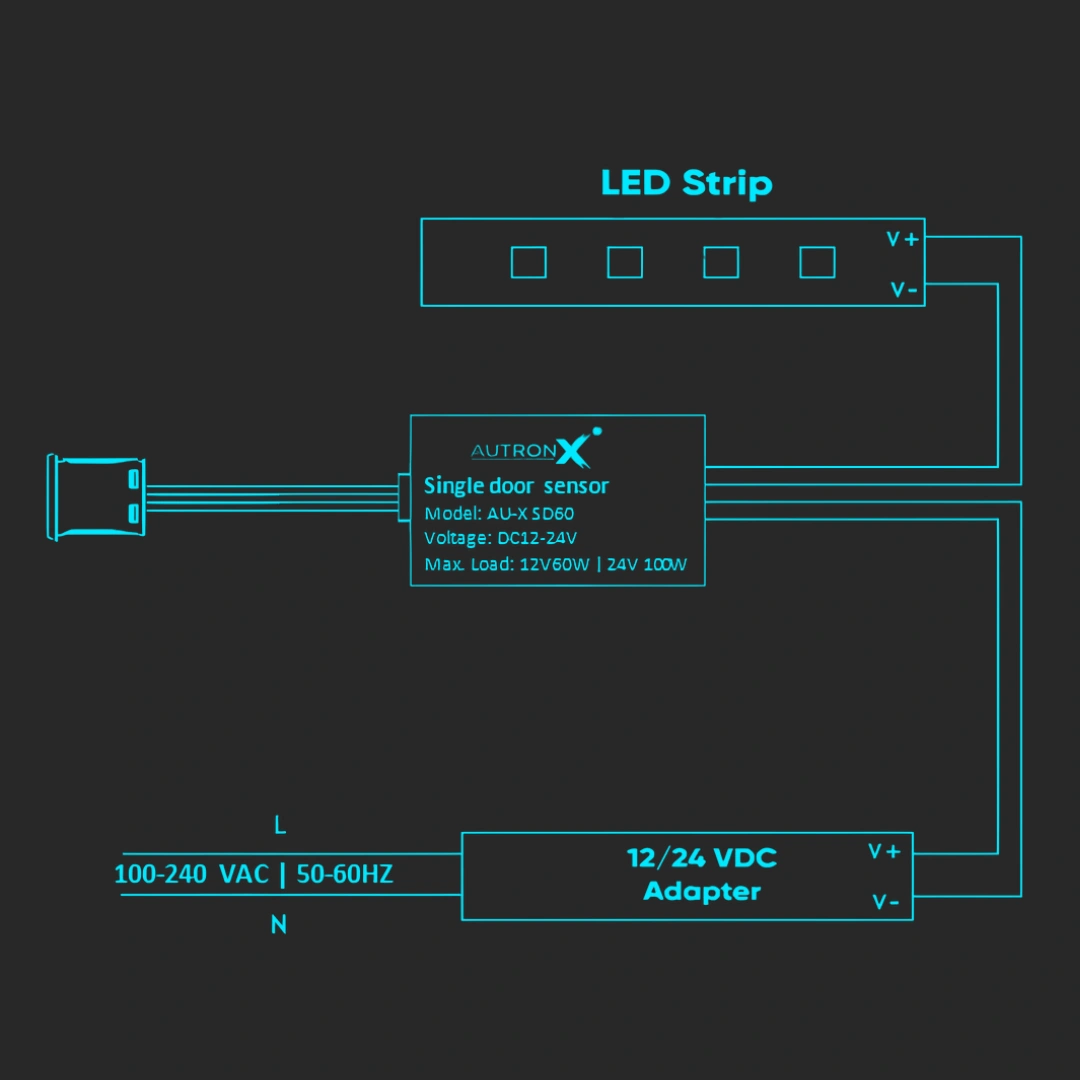

  • Power Connection: Connect SMPS/Adapter +VE and –VE to input marked wires.
  • LED Output: Connect LED +VE and –VE to output marked wires.

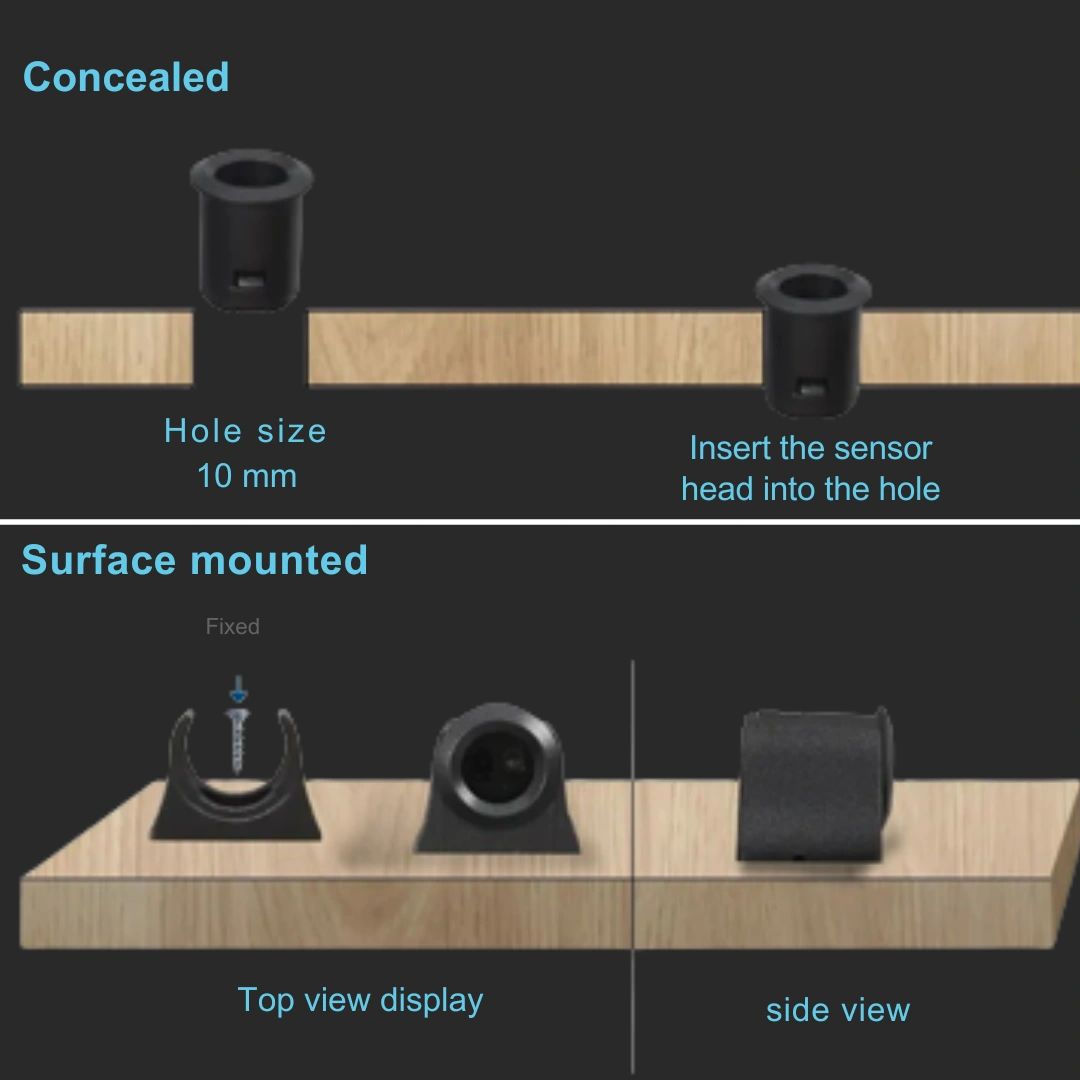

  • Concealed Mount: Drill holes for sensor head and cable routing, then fix the sensor.
  • Surface Mount: Secure the clamp with screws and insert the sensor head.
  • Test Functionality: Verify that the sensor activates the load when the door opens.

Troubleshooting & FAQs

1
Why isn’t the sensor detecting the door movement?
Ensure the door moves within 5–10cm of the sensor and check wiring connections.
2
Can the sensor head be replaced separately?
Yes, only the sensor head needs to be replaced if damaged.
3
Does it support both concealed and surface mounting?
Yes, the AU-XSD60 is designed for both installation types.
4
What loads can this sensor handle?
It supports up to 60W at 12V and 100W at 24V DC.
5
Is this suitable for outdoor use?
No, it is designed strictly for indoor applications.
