AU-XF8

Smart, Energy Saving Detection for your spaces

AU-XF8_1
AU-XF8_2
AU-XF8_3
AU-XF8_4
AU-XF8_5
AU-XF8_6

AU-XF8

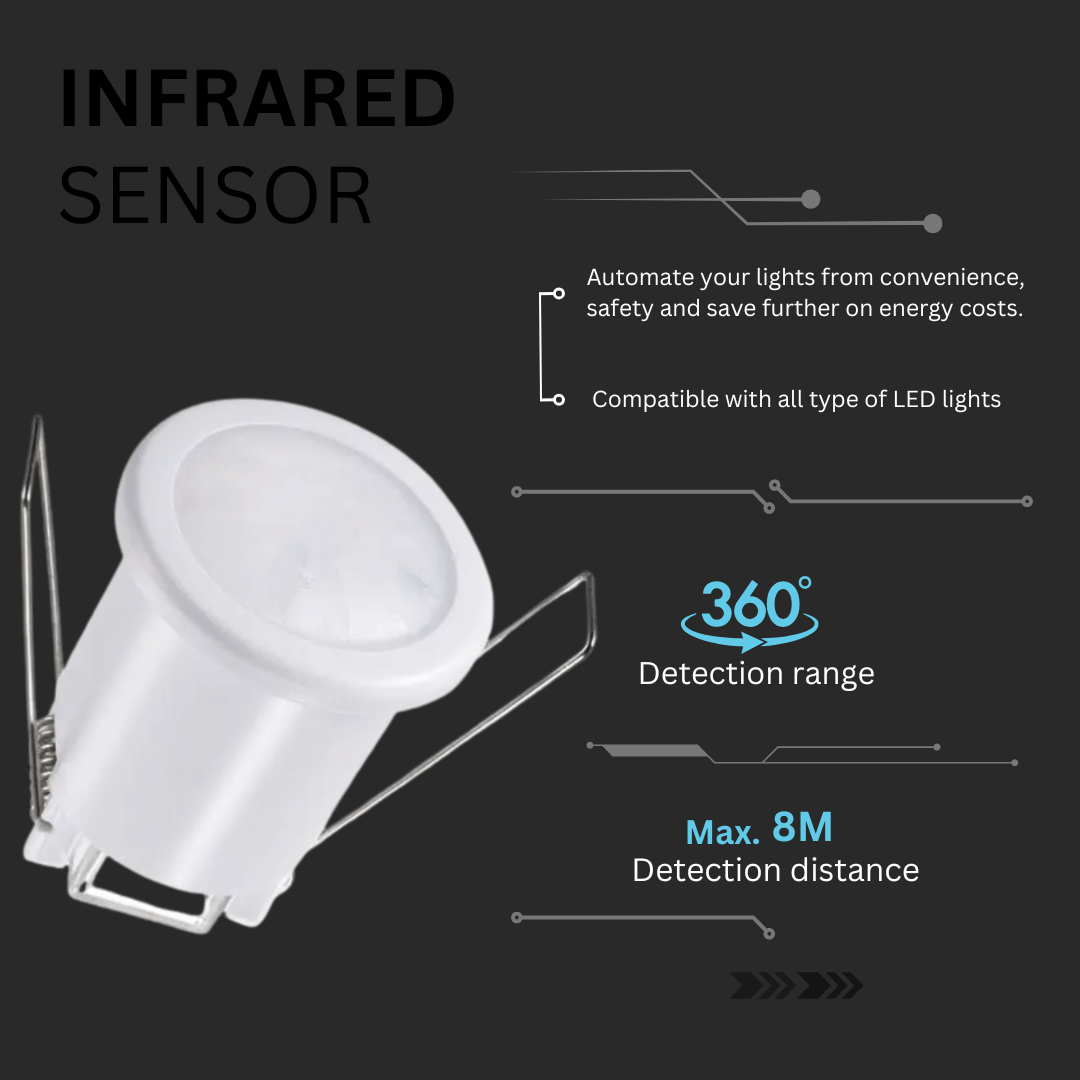

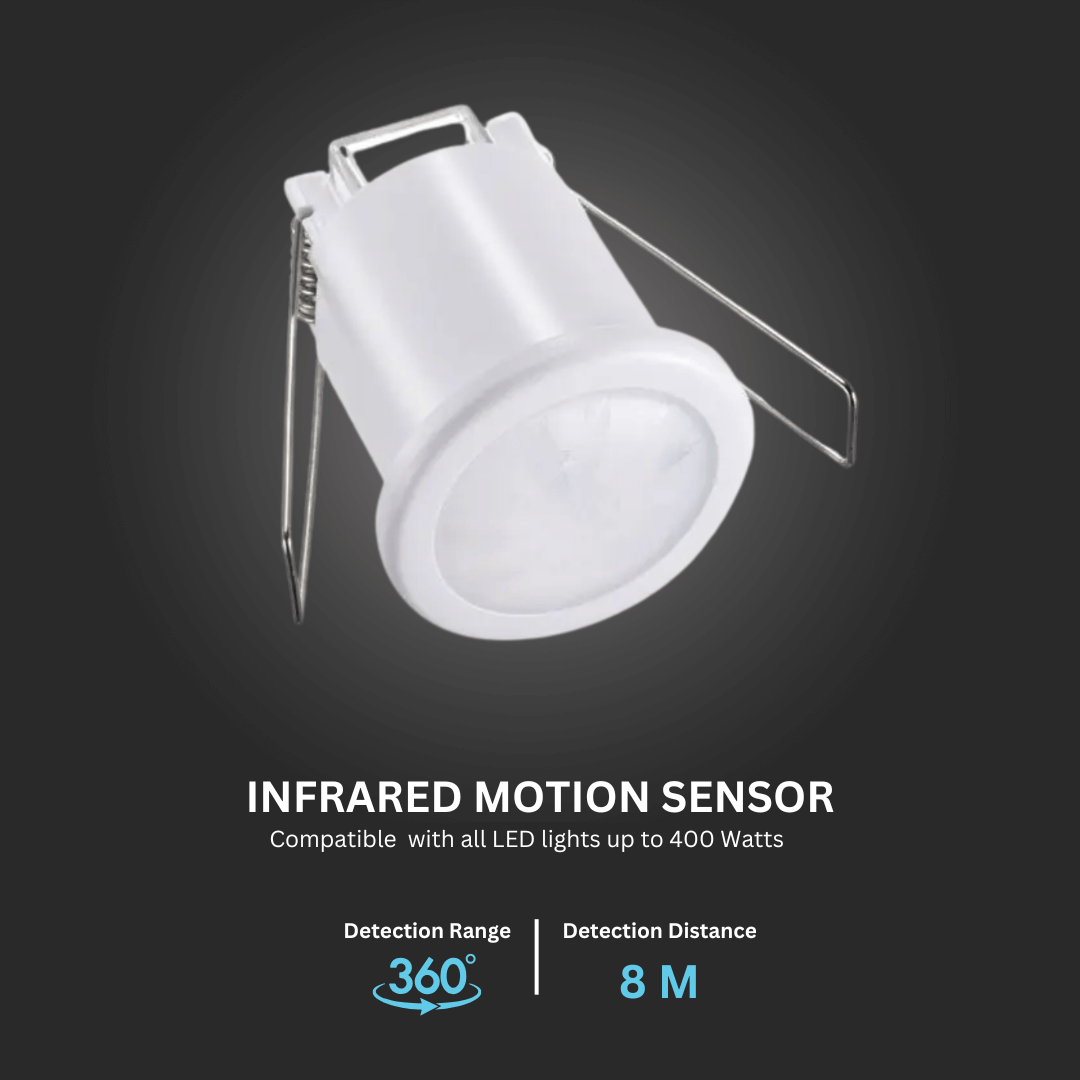

The AutronX AU-XF8 is a high-sensitivity ceiling-mounted PIR motion sensor designed for intelligent lighting control. It leverages passive infrared (PIR) technology combined with an integrated circuit to provide reliable motion-based activation.

With a 360° detection field and up to 8 metres of range, the AU-XF8 automatically triggers lighting when motion is detected, making it ideal for energy-saving applications. Its ability to differentiate between day and night via adjustable ambient light sensitivity ensures optimal functionality in various environments.

Designed for ceiling heights from 2.2 to 4 metres, this sensor is commonly used in lobbies, parking areas, hotel corridors, washrooms, and dressing rooms. It’s easy to install and delivers practical automation and convenience in both residential and commercial spaces.

Download Datasheet
Download Catalogue

360° Detection Coverage

Full-room sensing with up to 8m range for complete area monitoring.

Day/Night Auto Mode

Adjustable LUX settings for operation in both bright and dark environments.

Flexible Timer Control

Set light-on duration from 10 seconds to 15 minutes as per requirement.

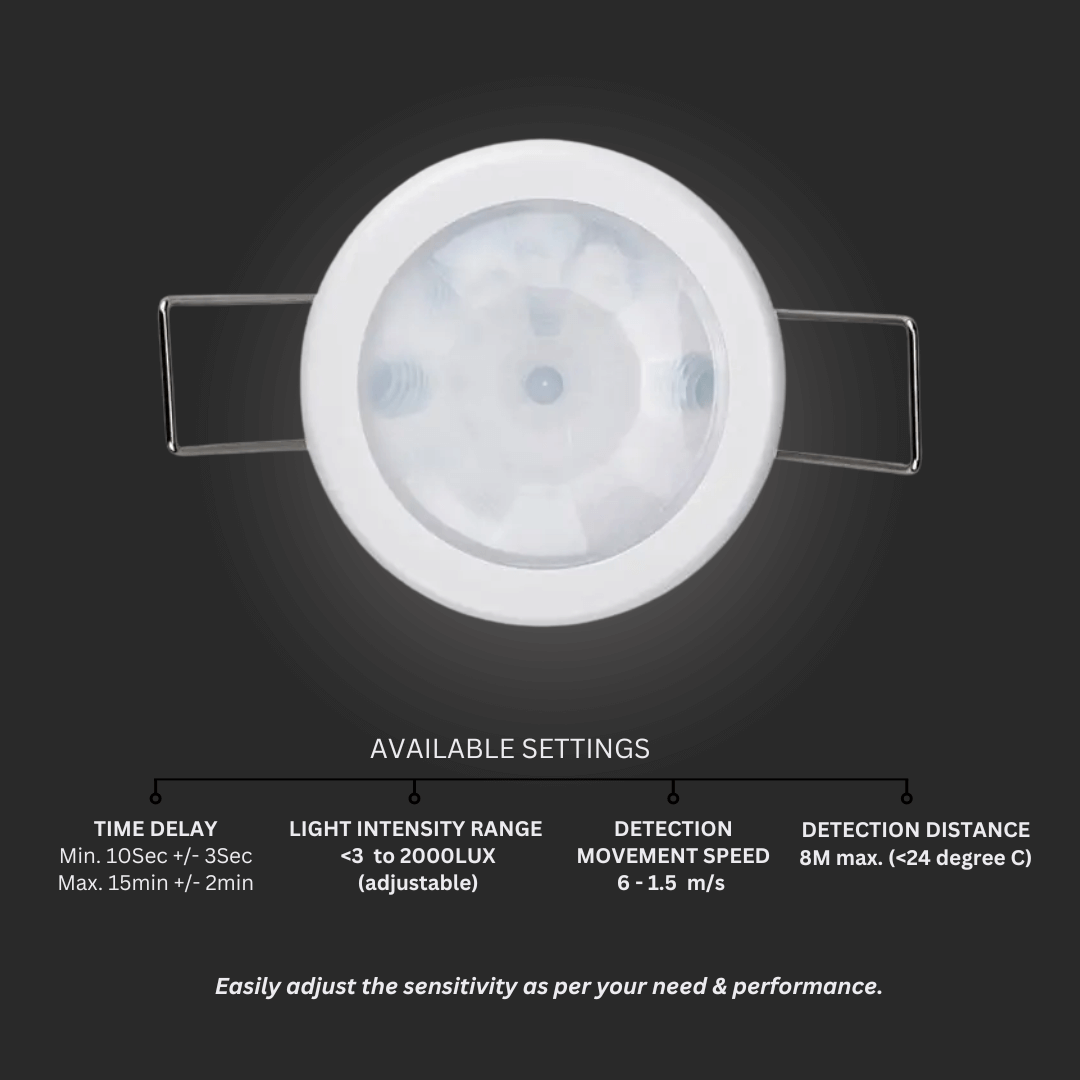

Technical Specifications

ModelAU-XF8
Power Source220–240V AC, 50Hz
Detection Range360°
Detection Distance≤8m (@ <24°C)
Ambient Light<3–2000 LUX (Adjustable)

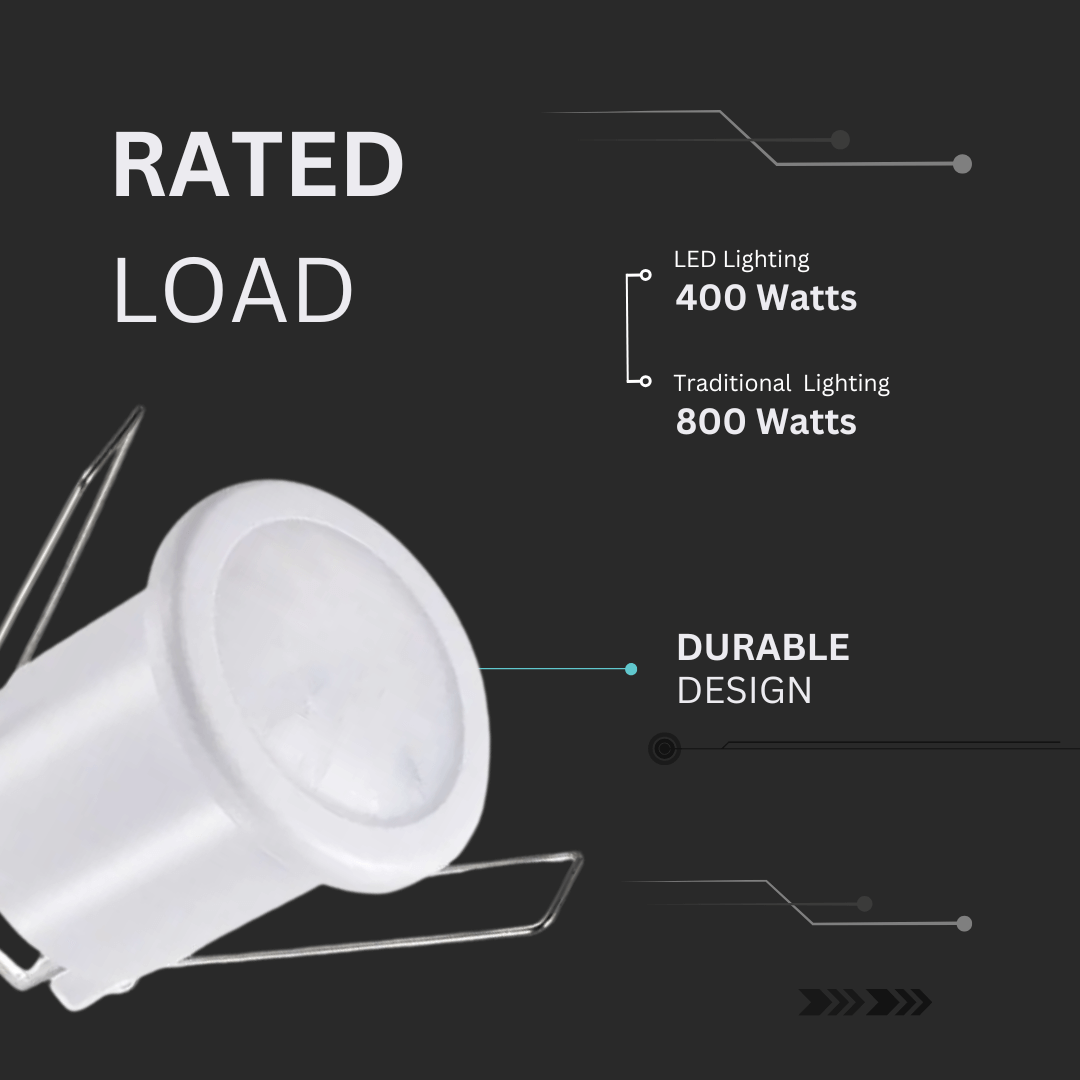

Rated Load800W (Incandescent), 400W (LED)

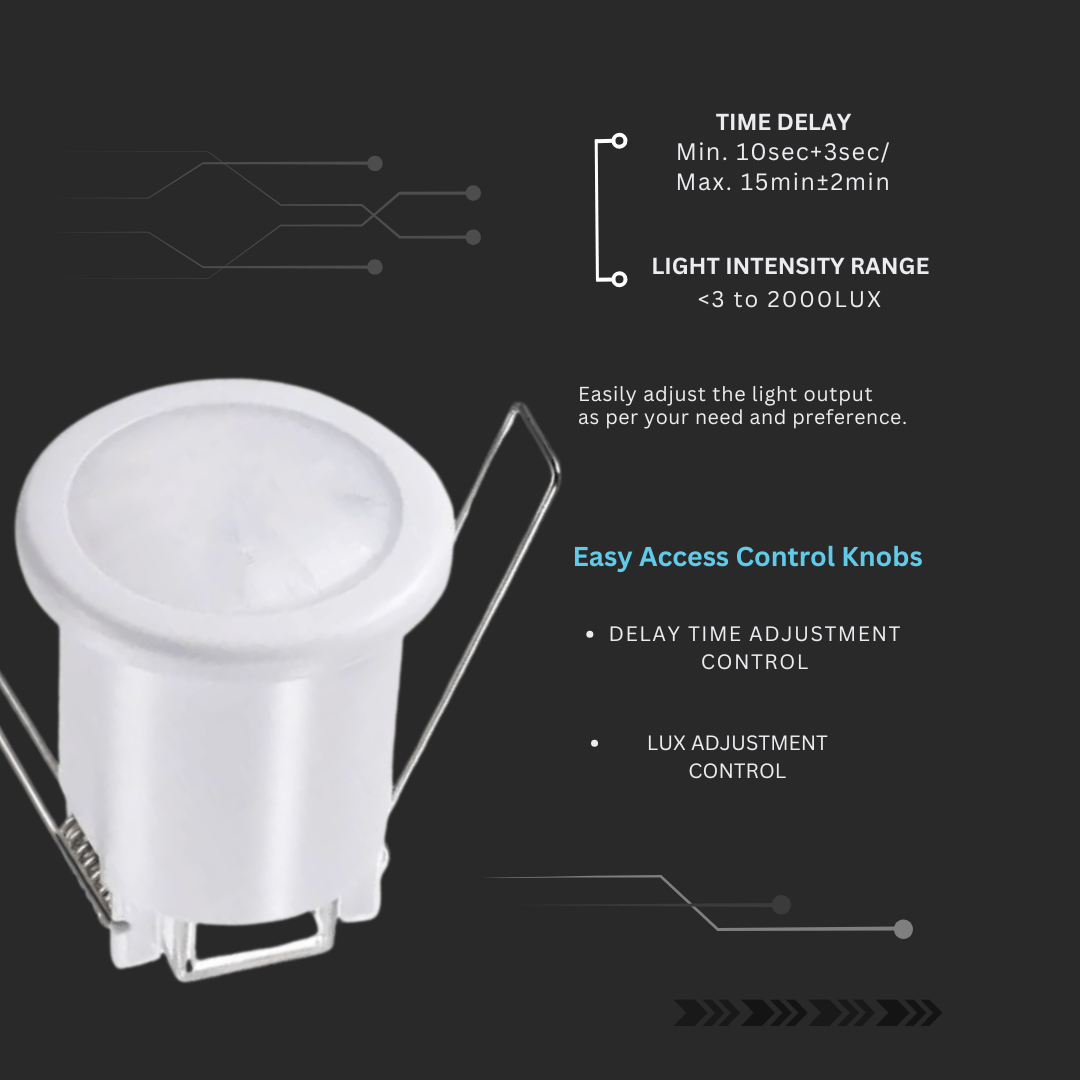

Time DelayMin. 10s ±3s, Max. 15min ±2min
Installation HeightCeiling: 2.2–4m
Power ConsumptionApprox. 0.5W
Working Temperature−20°C ~ +40°C
Working Humidity<93% RH
Number of Wires3 wires
Detection Motion Speed0.6–1.5 m/s

Key Functional Modes

Day/Night Sensitivity Mode

Automatically adjusts detection based on ambient light.

  • Works in full light (sun symbol) or dark (3 LUX minimum)
  • Ideal for day/night auto-switching
  • Adjustable via LUX dial
Auto Time Delay Mode

Sets how long the light remains on after no motion is detected.

  • Time adjustable between 10 seconds to 30 minutes
  • Resets timer if motion is re-detected during delay
  • Reduces energy consumption
Continuous Induction Reset

Ensures seamless operation during frequent movement.

  • Timer resets with every new motion detection
  • Prevents premature light turn-off
  • Suitable for high-traffic areas

Installation Guide

  • Avoid installation near reflective surfaces like mirrors.
  • Do not mount near heat sources, vents, or moving objects like curtains.
  • Remove the cover to access internal wiring.
  • Connect wires according to the wiring diagram.
  • Secure the sensor to the ceiling using screws.
  • Reinstall the cover and perform testing procedures.

Troubleshooting & FAQs

1
Why is the sensor not activating the light in daylight?
Ensure the LUX dial is set to the 'sun' symbol. If set to 'moon' (min), the sensor will only work in low light (<3 LUX).
2
The sensor is not detecting motion—what should I check?
Ensure no obstructions are blocking the sensor. Also, verify the detection zone and avoid installing near metal or glass surfaces.
3
The light stays on continuously—what could be wrong?
There may be constant movement in the detection area. Check the zone or reduce the sensor's sensitivity.
4
Motion is not being detected reliably—what’s the fix?
Ensure proper mounting height (2.2–4m) and a clear field of view. Also, check for reflective or heat-generating objects nearby.
5
How do I test the sensor?
Set the LUX dial to maximum and time to minimum. Power on, wait 30 seconds for warm-up, then walk into the detection area to verify operation.
