AU-XDD123

Smart, Energy Saving Detection for your spaces

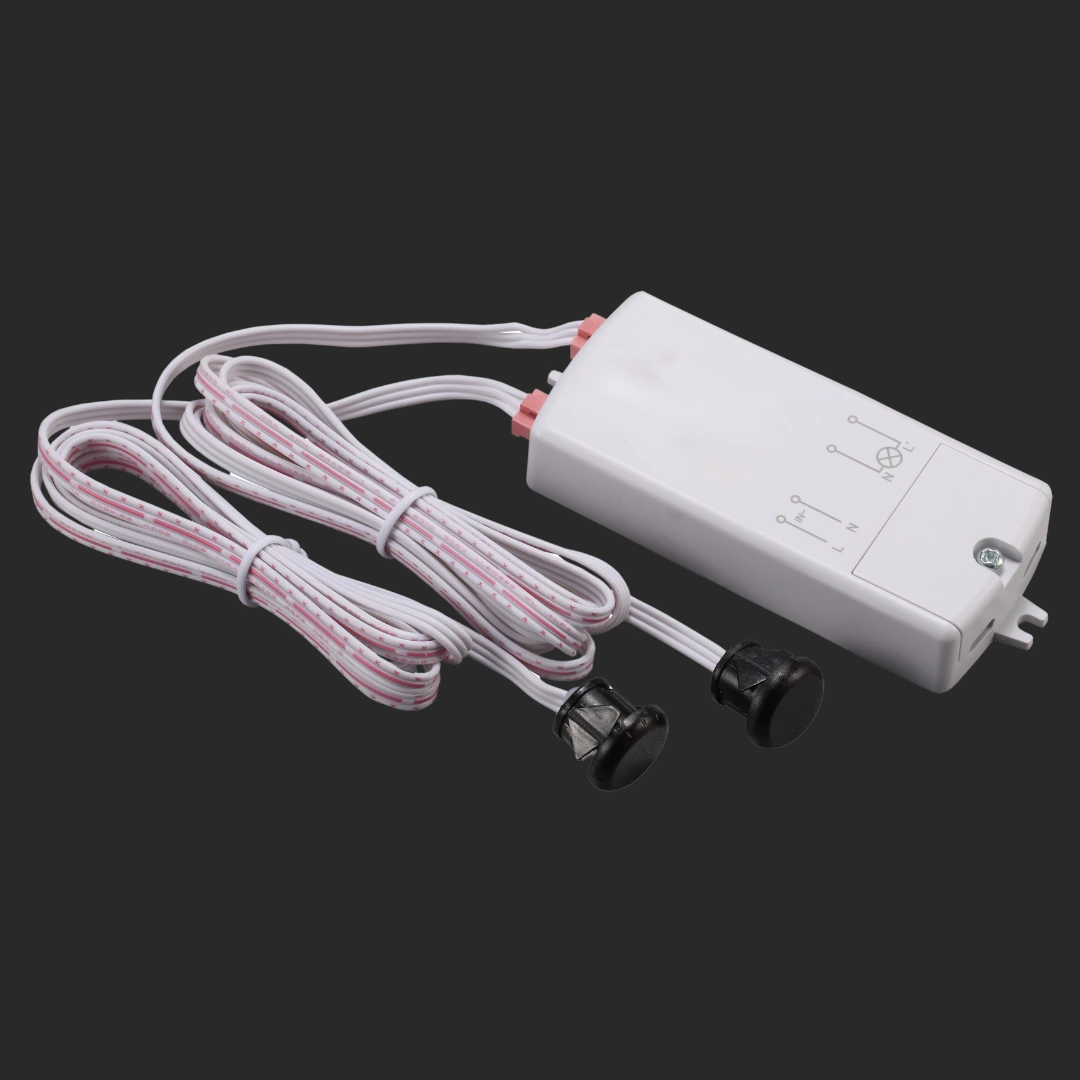

AU_XDD123_1

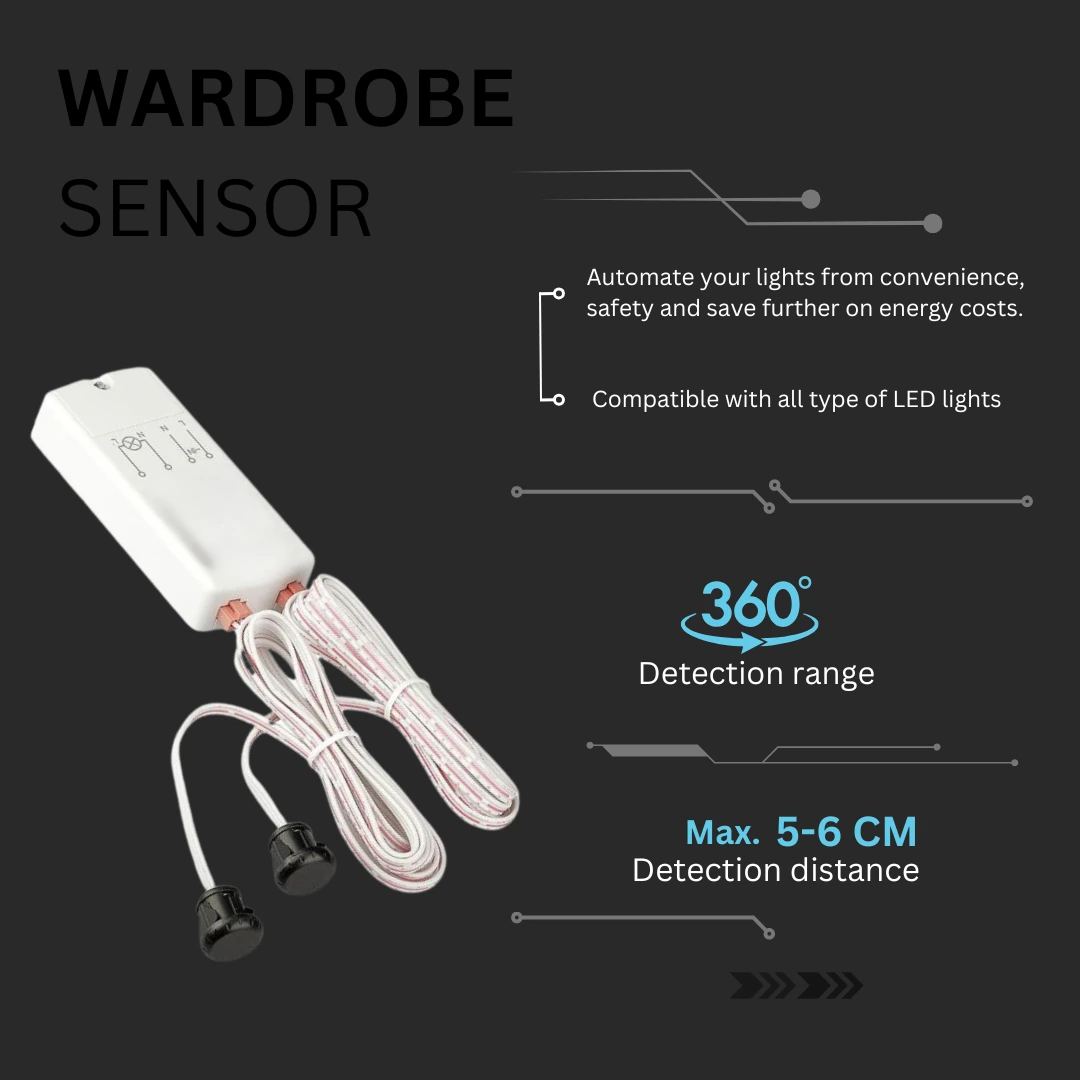

AU_XDD123_2

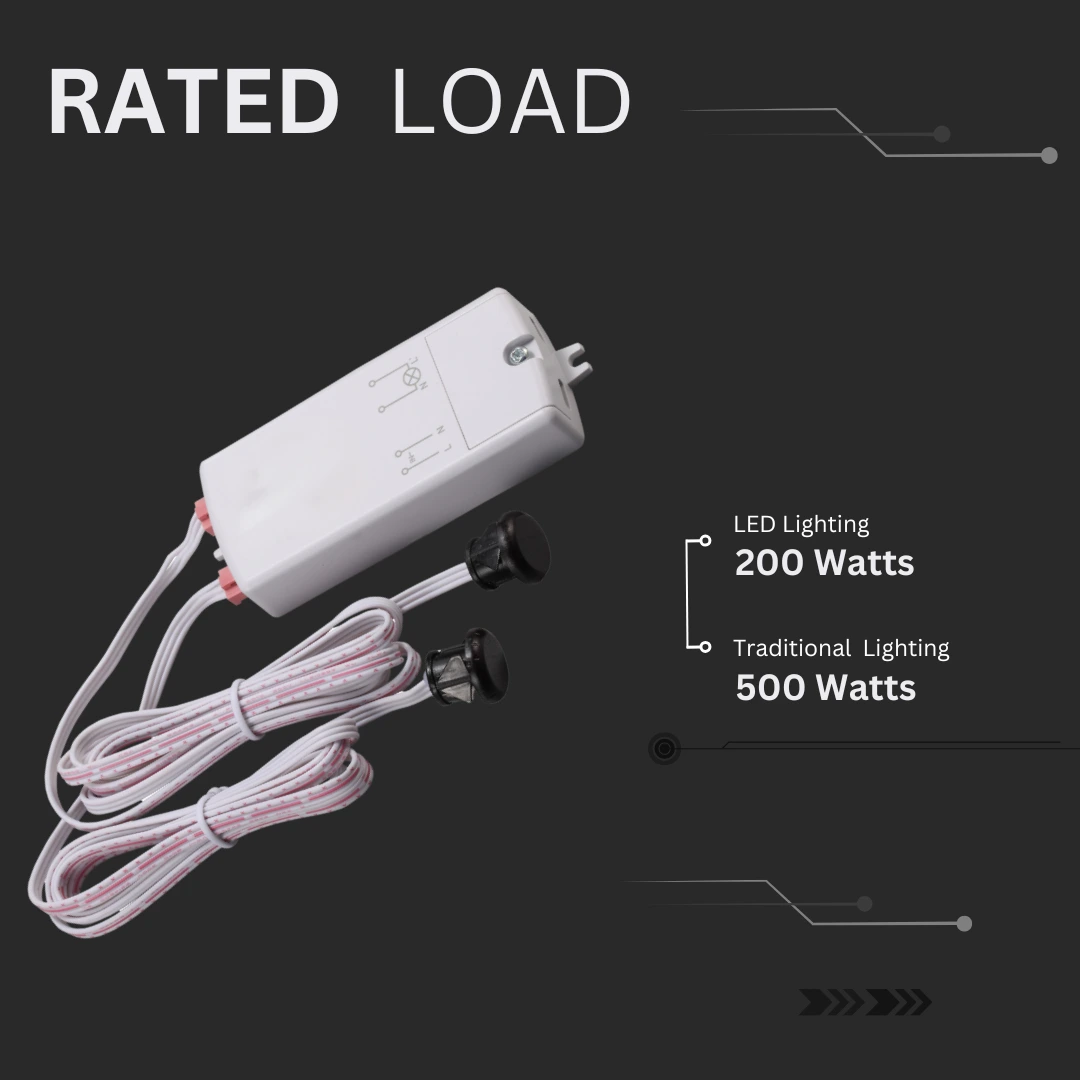

AU_XDD123_3

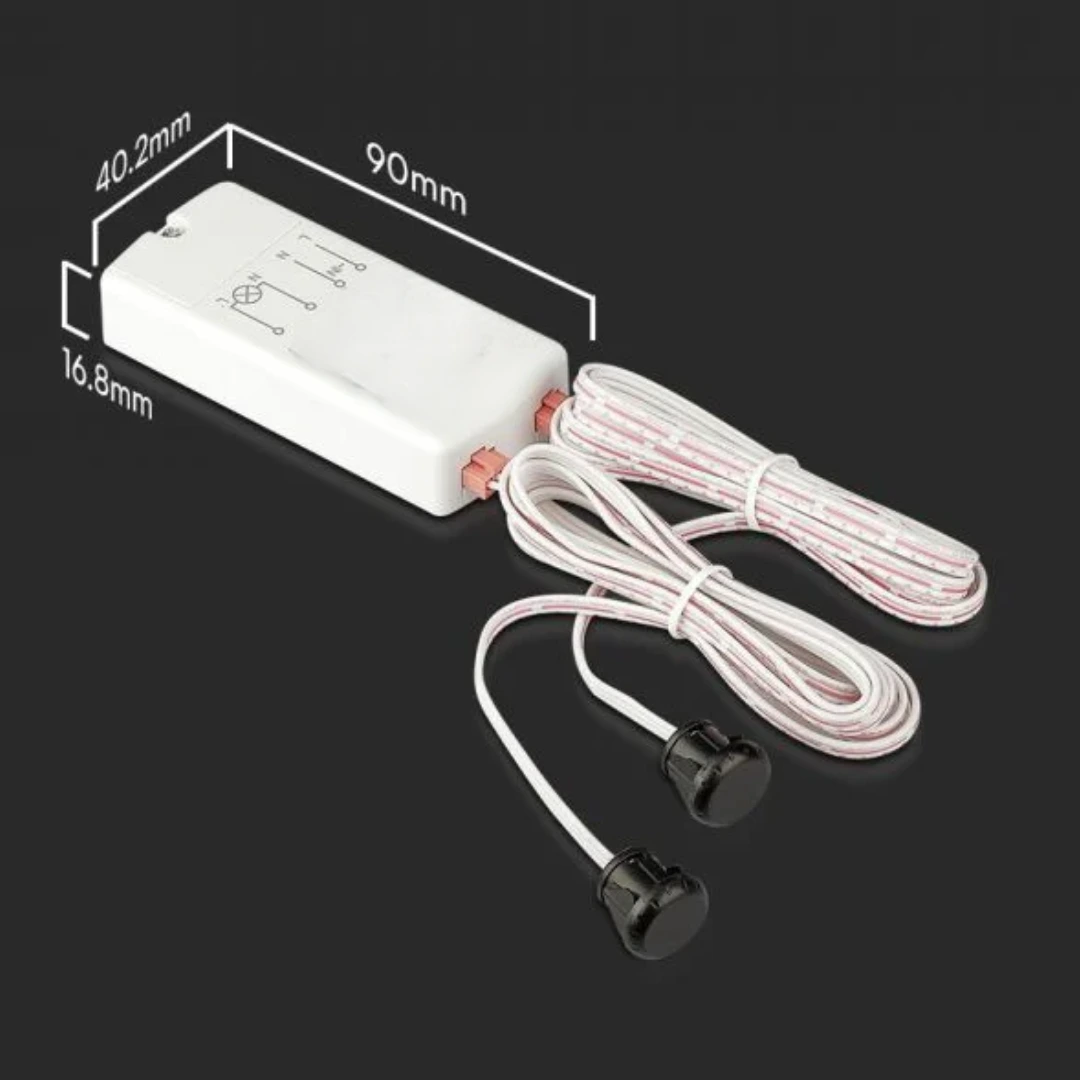

AU_XDD123_4

AU-XDD123

The AutronX AU-XDD123 is an AC-powered double door infrared sensor designed for indoor cabinet and wardrobe automation. With a short-range detection of 5–6cm, it controls lighting based on the opening and closing of two doors, ensuring efficient energy usage.

This sensor is ideal for concealed or surface-mounted applications in kitchens, dressing areas, and closets. When either door is opened, the sensor activates the connected lighting; once both doors are closed, the lighting automatically switches off, enhancing convenience and energy savings.

Download Datasheet
Download Catalogue

Dual Door Activation

Lights turn ON when either door opens and OFF only when both doors close.

AC Powered Control

Operates on 220–240V AC with up to 200W LED load capacity.

Discreet Installation

Supports both concealed and surface mounting with a compact design.

Technical Specifications

ModelAU-XDD123
Product NameDouble Door AC Sensor
Input Power Supply220–240V AC, 50Hz
Sensing Range5–6cm
Rated Load200W (LED Load)
Rated Load-Current5 Amp
Stand-by Current8mA
Sensor Head Wire Length1 metre
Operating ModeDoor Sensing Mode
Installation MethodConcealed / Surface Mount

Key Functional Modes

Double Door Monitoring
Activates lights when either door opens
  • Lights switch OFF only when both doors are closed
  • Short-range IR detection for fast response
  • Perfect for wardrobe and cabinet setups
Energy-Saving Mode
Controls light usage based on presence
  • Turns OFF when not in use
  • Enhances efficiency in enclosed spaces
  • Minimises energy wastage
Indoor Automation Mode
Designed for built-in lighting control
  • Supports 200W LED loads
  • Seamless integration with cabinet wiring
  • Improves user experience in smart interiors

Installation Guide

  • Power Off: Ensure main power is switched off before installation.
  • Mount Sensor: Use enclosed screws to install the unit on a stable surface.
  • Wire Connection: Connect sensor to power and load as per the wiring diagram.
  • Silver Label: For enhanced detection, affix the silver label facing the sensor on the door.
  • Test Operation: Power on and verify lights activate when either door opens and deactivate when both are closed.

Troubleshooting & FAQs

1
Why don’t the lights switch off after closing one door?
The sensor is designed to turn off the load only when both doors are fully closed.
2
What is the power rating supported?
The sensor supports a maximum of 200W LED load at 220–240V AC.
3
Can this be used in outdoor cabinets?
No, the sensor is intended strictly for indoor use only.
4
Can I surface-mount this sensor?
Yes, the AU-XDD123 supports both surface and concealed mounting.
5
What if the sensor stops responding?
Ensure the wiring is secure and no obstructions are blocking the IR signal path.
