AU-X 2x2PL
Smart, Energy Saving Detection for your spaces
AU-X 2x2PL

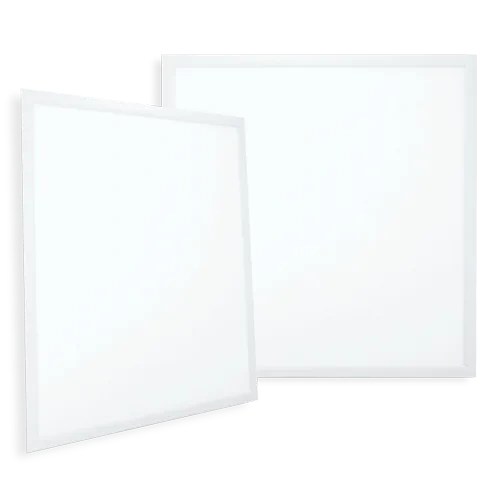

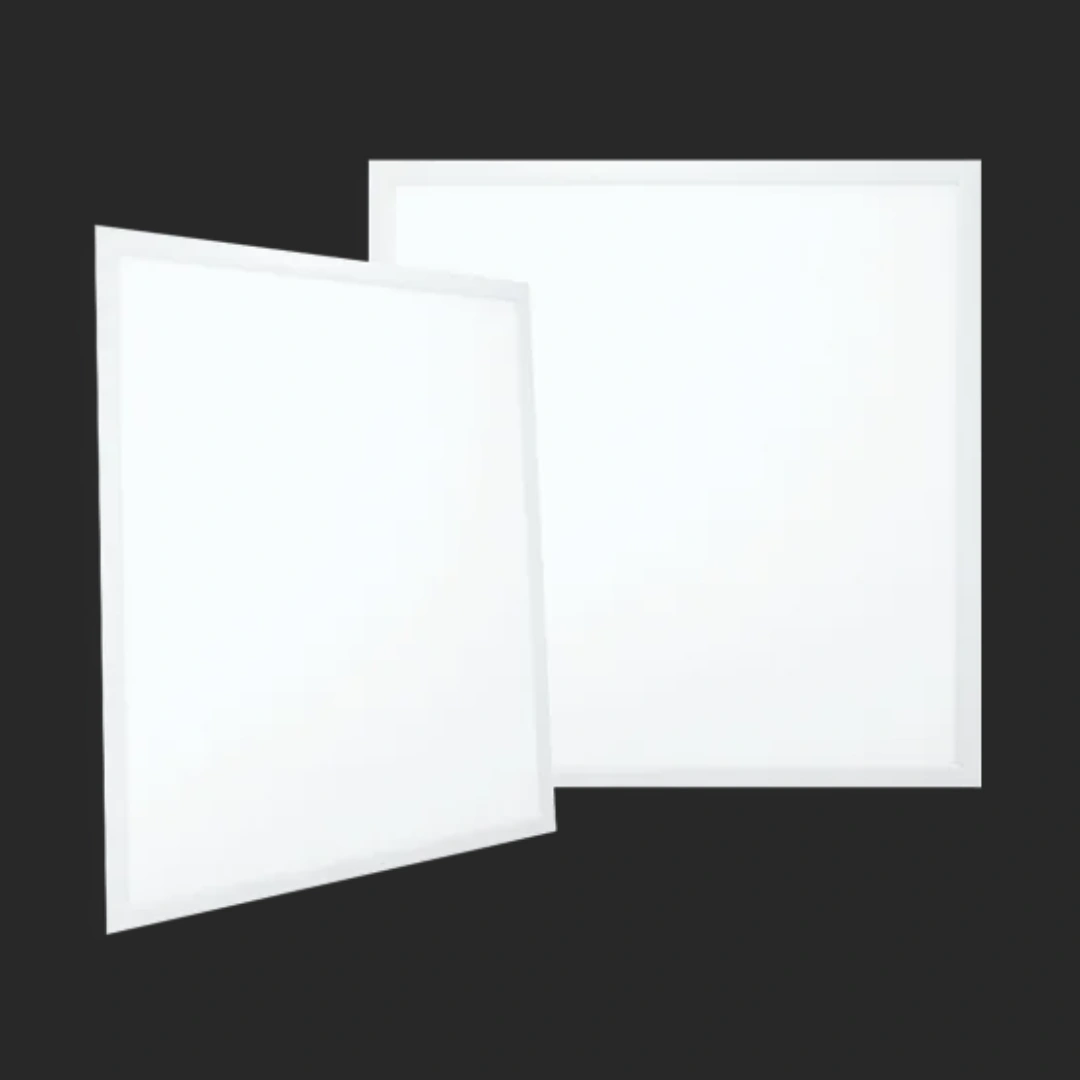

The AutronX AU-X 2x2PL is a smart sensor panel light designed for efficient lighting in homes, offices, and commercial spaces. Offering both automatic and manual modes, it enables hands-free operation with motion detection and dimming capabilities.
With a power consumption of 36W at full brightness and only 8W in dim mode, this panel light maximises energy savings. Its sleek design supports surface and flush mounting, making it a versatile solution for modern lighting needs.
Motion Sensor with Dimming Mode
Automatically adjusts brightness based on movement, dimming to 30% after inactivity.
Energy Efficient Performance
Delivers 120 lumens per watt with over 40,000+ burning hours, reducing energy costs.
Dual Mounting Options
Supports surface and flush mount installations for flexible application in homes and offices.
Technical Specifications
| Model | AU-X 2x2PL |
|---|---|
| Power Source | 220–240V AC, 50/60Hz |
| Wattage | 36W |
| Power Consumption | 36W (Bright), 8W (Dim) |
| Lighting Output | 120 lumens/Watt |
| Detection Range | Up to 7m |
| Installation Height | 10–12 feet |
| Installation Type | Surface Mount & Flush Mount |
| Color Temperature | 3000K / 4000K / 6500K |
| Burning Hours | 40,000+ Hours |
| Beam Angle | 150° |
| Sensor Type | On-Off & Dimmable |
| Dimensions | 170mm (L) / 30mm (W) / 20mm (H) | 4ft |
| Protection | Over Voltage, Short Circuit, Open Circuit |
| Surge Protection | Up to 4kV |
| Power Factor | <0.95 at Full Load |
| Driver Efficiency | >85% at Full Brightness |
| THD | <15% at Full Brightness |
Key Functional Modes
On-Off Mode
Activates when motion is detected- Light switches ON with movement
- Turns OFF after 30 seconds of no motion
- Hands-free energy-saving operation
Dimming Mode
Maintains ambient lighting after inactivity- Lights up at full brightness with motion
- Dims to 30% brightness after 30 seconds of no movement
- Enhances energy efficiency in shared spaces
Memory Function Mode
Remembers last settings after power outages- Restores preferred mode after restart
- Ensures continuous operation without reset
- Simplifies user experience
Installation Guide
- Power Off: Ensure mains power is disconnected before starting installation.
- Mounting: Choose between surface or flush mount as per site requirement.
- Wiring: Connect according to the provided wiring diagram ensuring correct polarity.
- Secure Panel: Fix the panel securely using appropriate mounting hardware.
- Test Functionality: Power on and test motion detection and dimming responses.
