AU-X765
Smart, Energy Saving Detection for your spaces
AU-X765

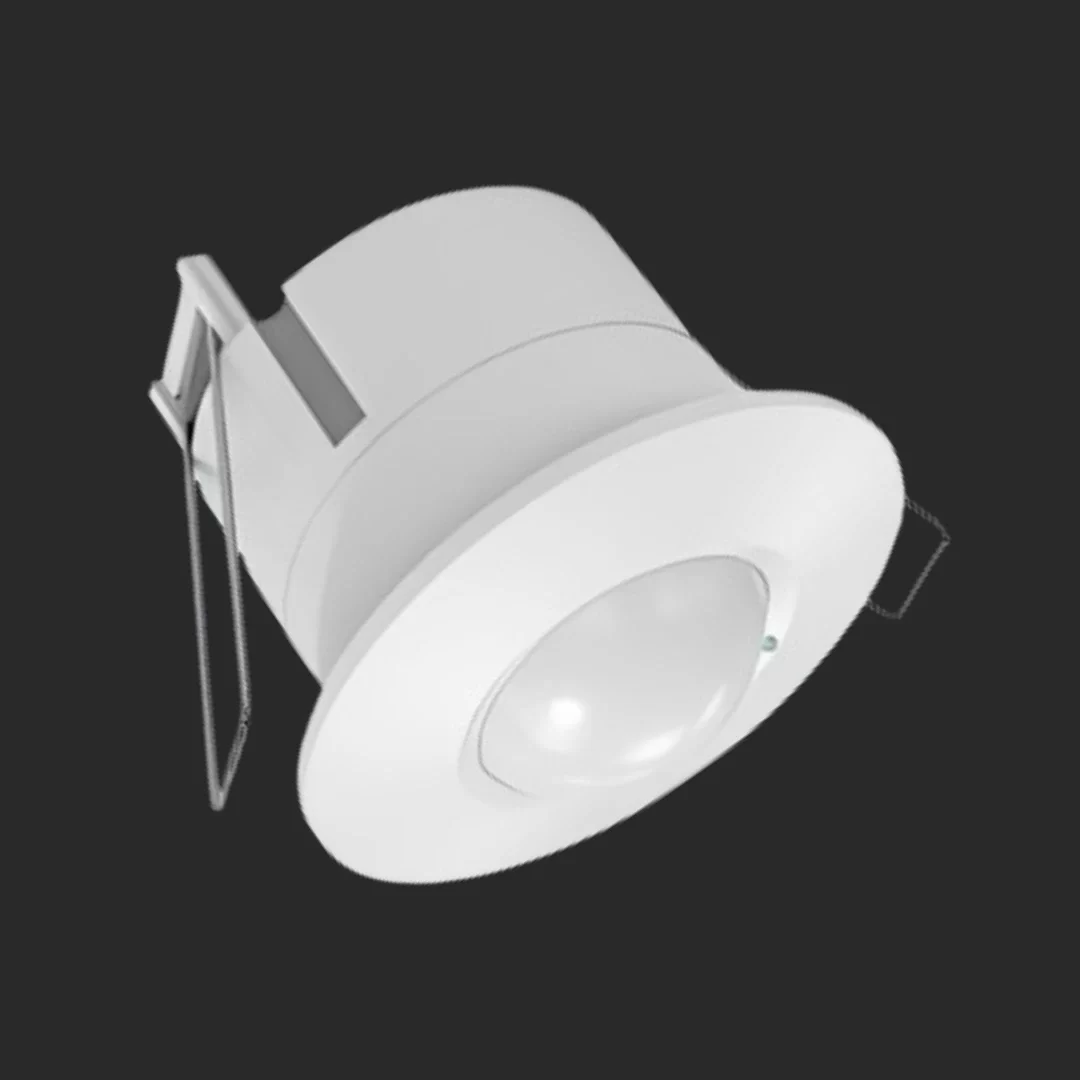

The AutronX AU-X765 is a high-performance microwave motion sensor designed to deliver precise, energy-efficient automation across commercial and residential spaces. Utilising 5.8GHz continuous wave radar technology, this sensor provides seamless motion detection with wide coverage and minimal blind spots.
Engineered with a compact integrated circuit and microwave sensing system, the AU-X765 ensures dependable activation of electrical loads based on human presence. With its advanced day-night identification feature and through-wall detection capability, it is ideal for areas like staircases, basements, hospital corridors, and parking lots where automated lighting is essential.
Through-Wall Sensing
Detects motion even through glass or thin partitions.
Low Power Usage
Consumes just ~0.9W with LUX-based activation.
Custom Range & Timer
Adjustable distance and delay for precise control.
Technical Specifications
| Model | AU-X765 |
|---|---|
| Power Source | 220–240V AC, 50Hz |
| HF System | 5.8GHz CW Radar, ISM Band |
| Transmission Power | <0.2mW |
| Time Delay | 10 sec ±3 sec to 12 min ±1 min |

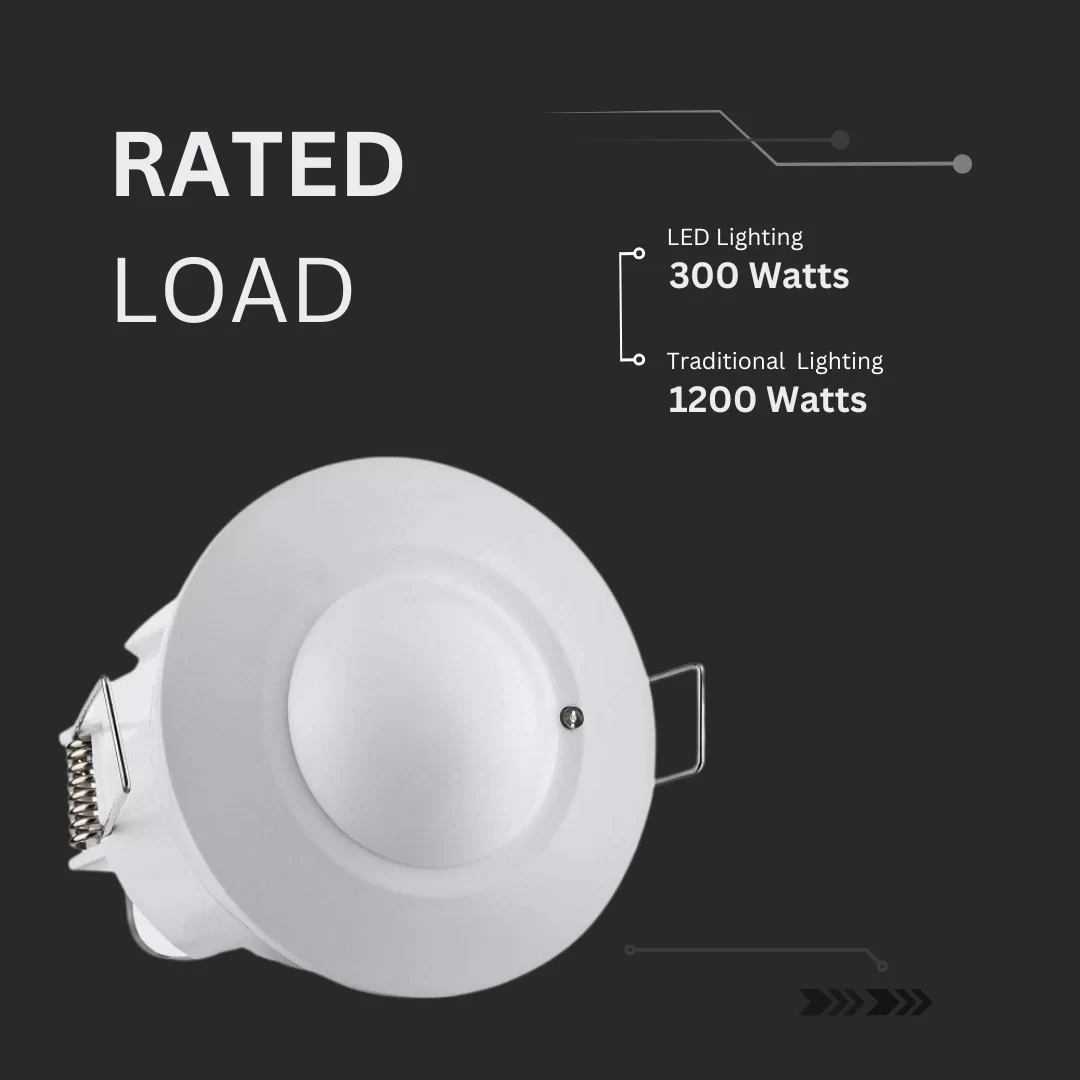

| Rated Load | 1200W (Incandescent), 300W (LED) |
| Detection Range | 180° |
| Detection Distance | 5–12m (adjustable) |
| Ambient Light | <3–2000 LUX |
| Installation Height | 1.5–3.5m |
| Power Consumption | Approx. 0.9W |
| Number of Wires | 3 Wires |
| Detection Motion Speed | 0.6–1.5 m/s |

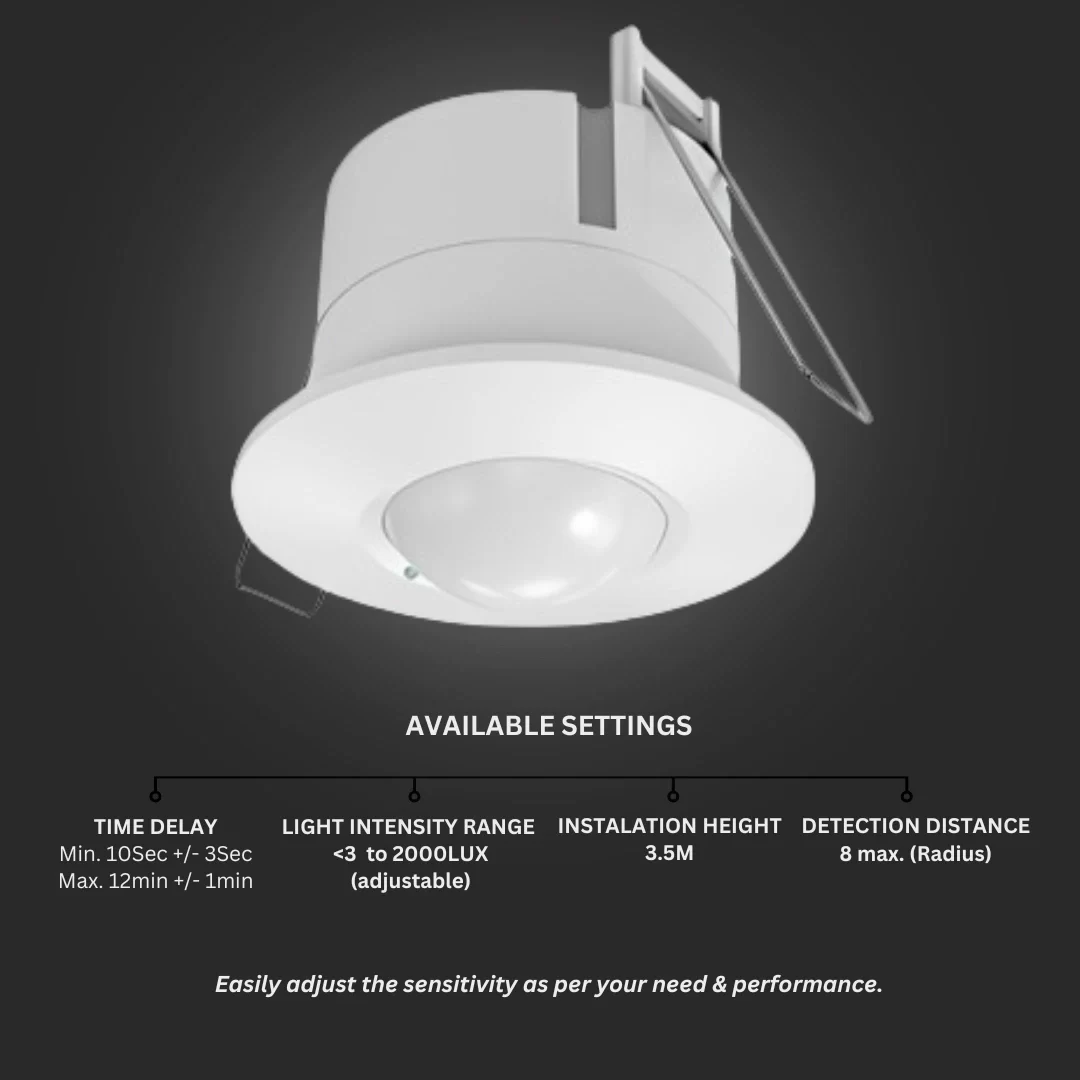

Key Functional Modes
Day/Night Recognition
Automatically adjusts sensor response based on ambient light levels
- Operates in full daylight or darkness depending on LUX setting
- LUX adjustable from <3 to 2000 for environment-specific use
- Ideal for energy-saving during daylight hours
Adjustable Sensitivity
Customisable detection radius based on installation area
- Sensitivity adjustable from 1m to 8m range
- Perfect for rooms of varying sizes
- Minimises false triggers with tailored detection
Customisable Time Delay
Controls load switch-off timing after last movement detection
- Delay range: 10 seconds to 12 minutes
- Restart timer on new movement detection
- Efficient control of lighting duration
Installation Guide
- Power Down: Always disconnect the power supply before installation.
- Open Unit: Loosen and remove the bottom screw to detach the base.
- Wire Routing: Pass the power wire through the gasketed hole in the base.
- Wiring: Connect wires as per the wiring diagram (L, N, Load).
- Mounting: Fix the base to a stable surface using wall anchors or screws.

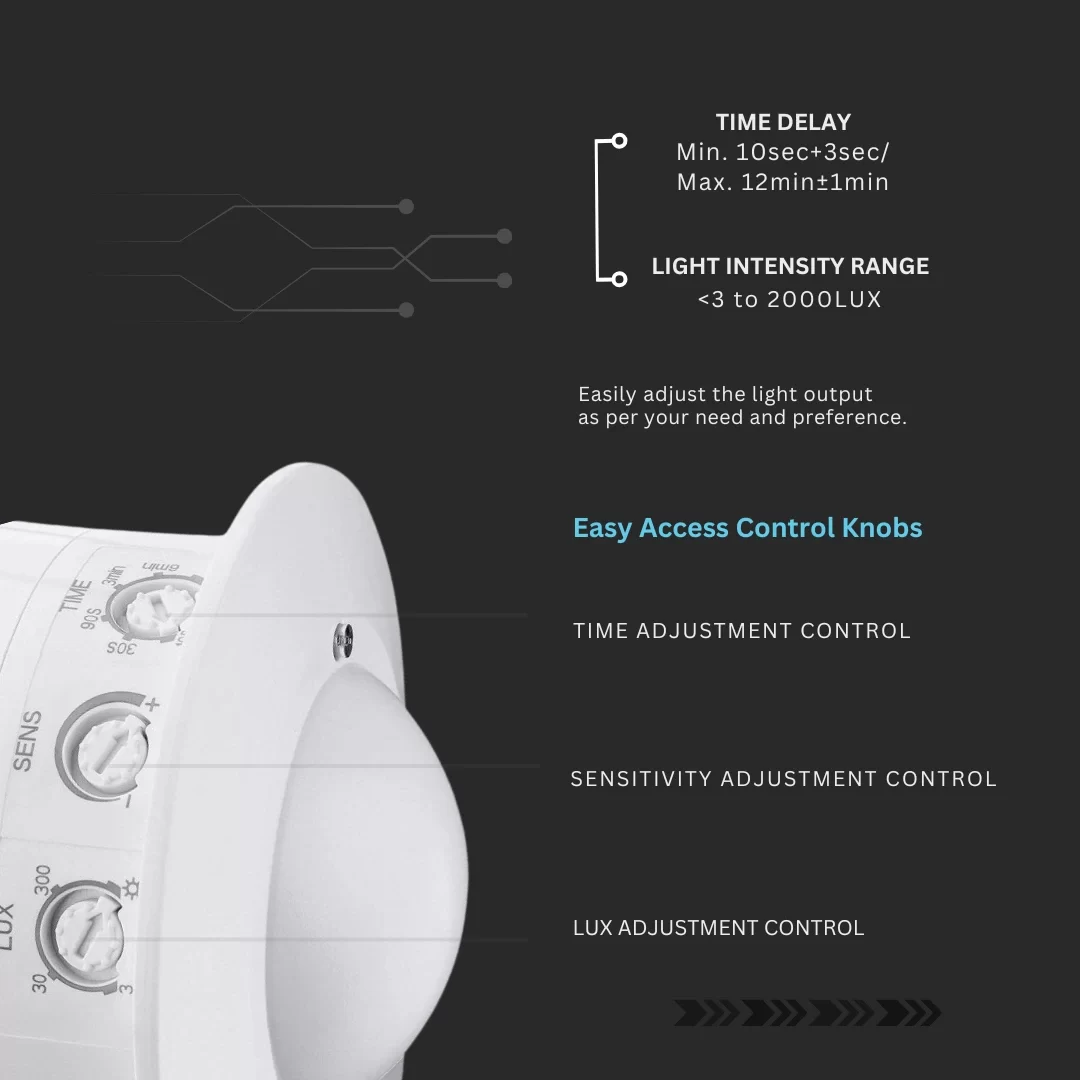

- Assemble & Test: Reattach sensor, tighten screws, adjust knobs, and verify detection.
