AU-X753

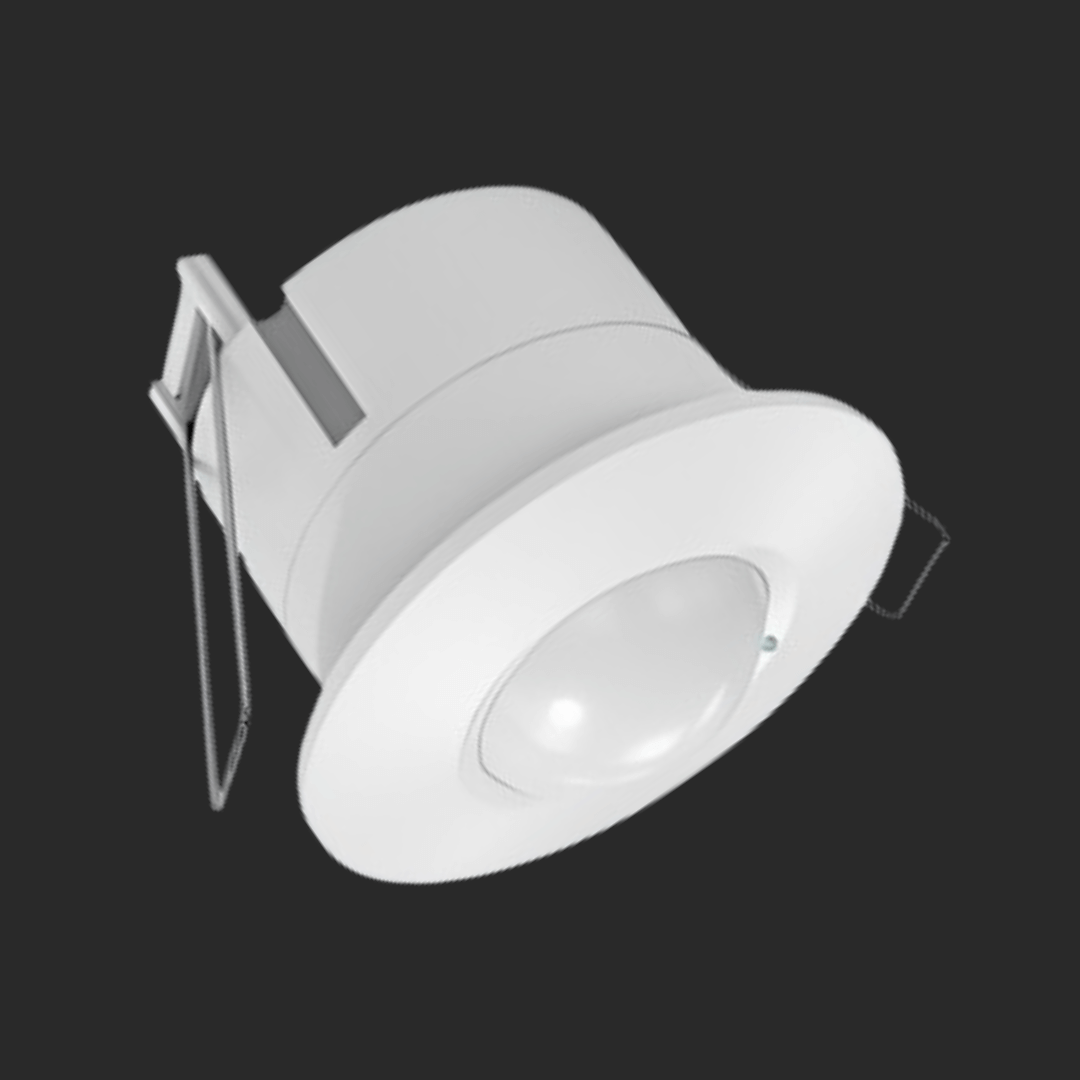

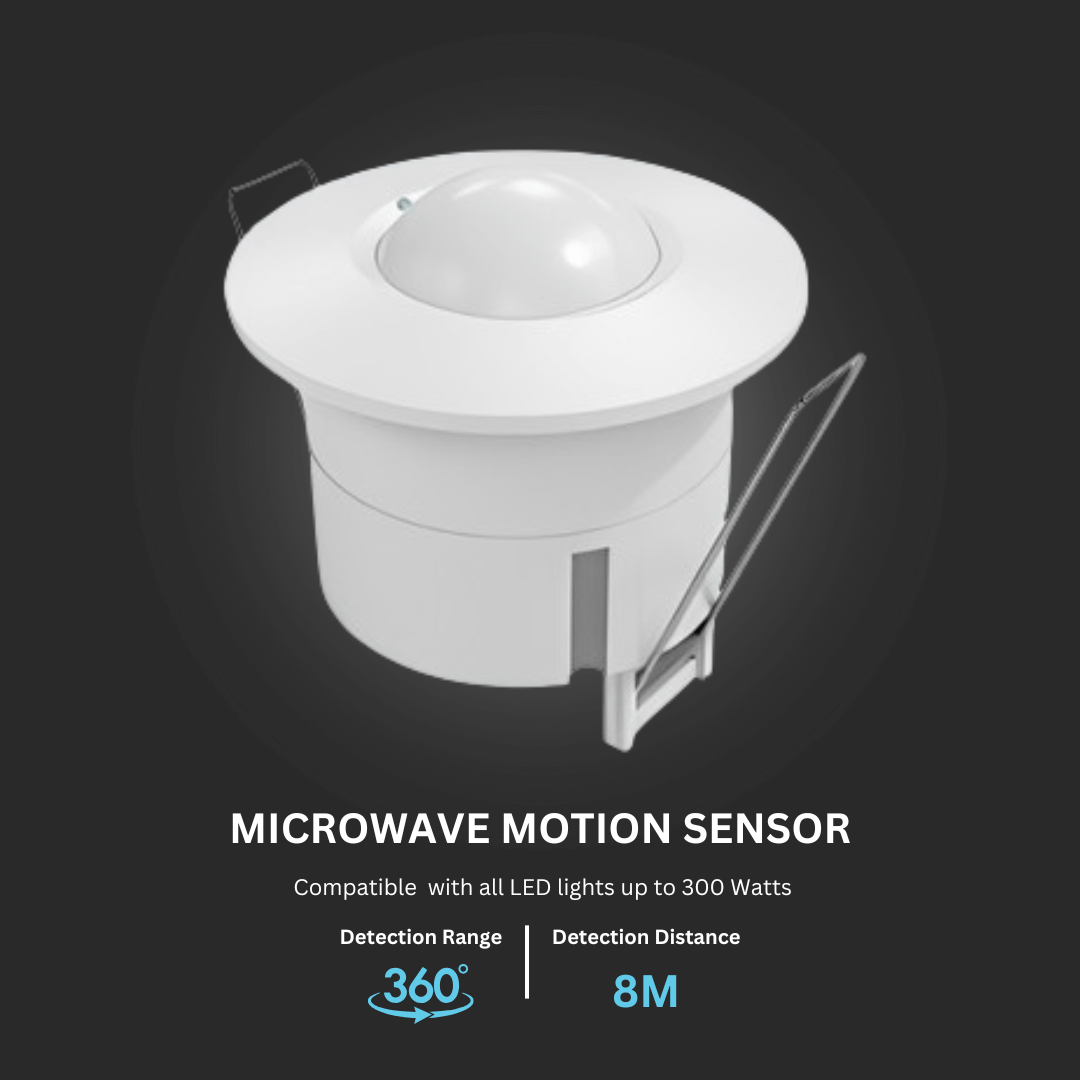

The AutronX AU-X753 is a 360° microwave motion sensor designed for ceiling installation in indoor automation environments. Operating at 5.8GHz CW radar frequency, it delivers high-precision motion detection through glass, wood, and thin walls with no dead zones.

This energy-saving switch offers automatic day/night detection, adjustable detection range, and timing control, making it ideal for cold storages, parking zones, hotel corridors, and more. With simple installation and reliable sensing, it ensures efficient lighting control for any space.

Download Datasheet
Download Catalogue

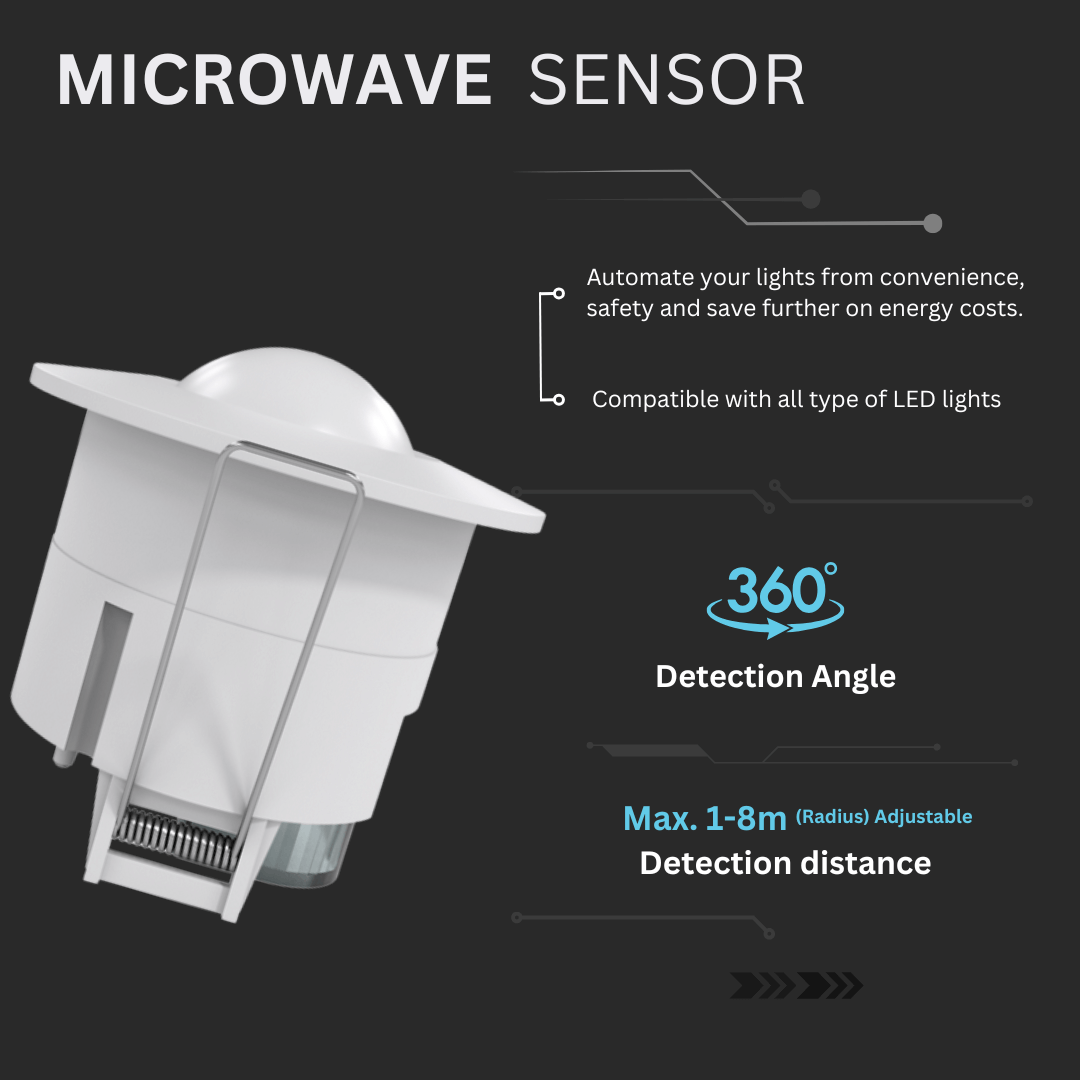

360° Full Coverage

Detects motion in all directions up to 8m ceiling radius.

Custom Sensitivity & Timing

Easily adjustable range and time delay to suit the space.

Through-Material Detection

Works reliably through glass, wood, and thin partitions.

Technical Specifications

Specification ItemValue
ModelAU-X753
Power Source220–240V AC, 50Hz
HF System5.8GHz CW Radar, ISM Band
Transmission Power<0.2mW

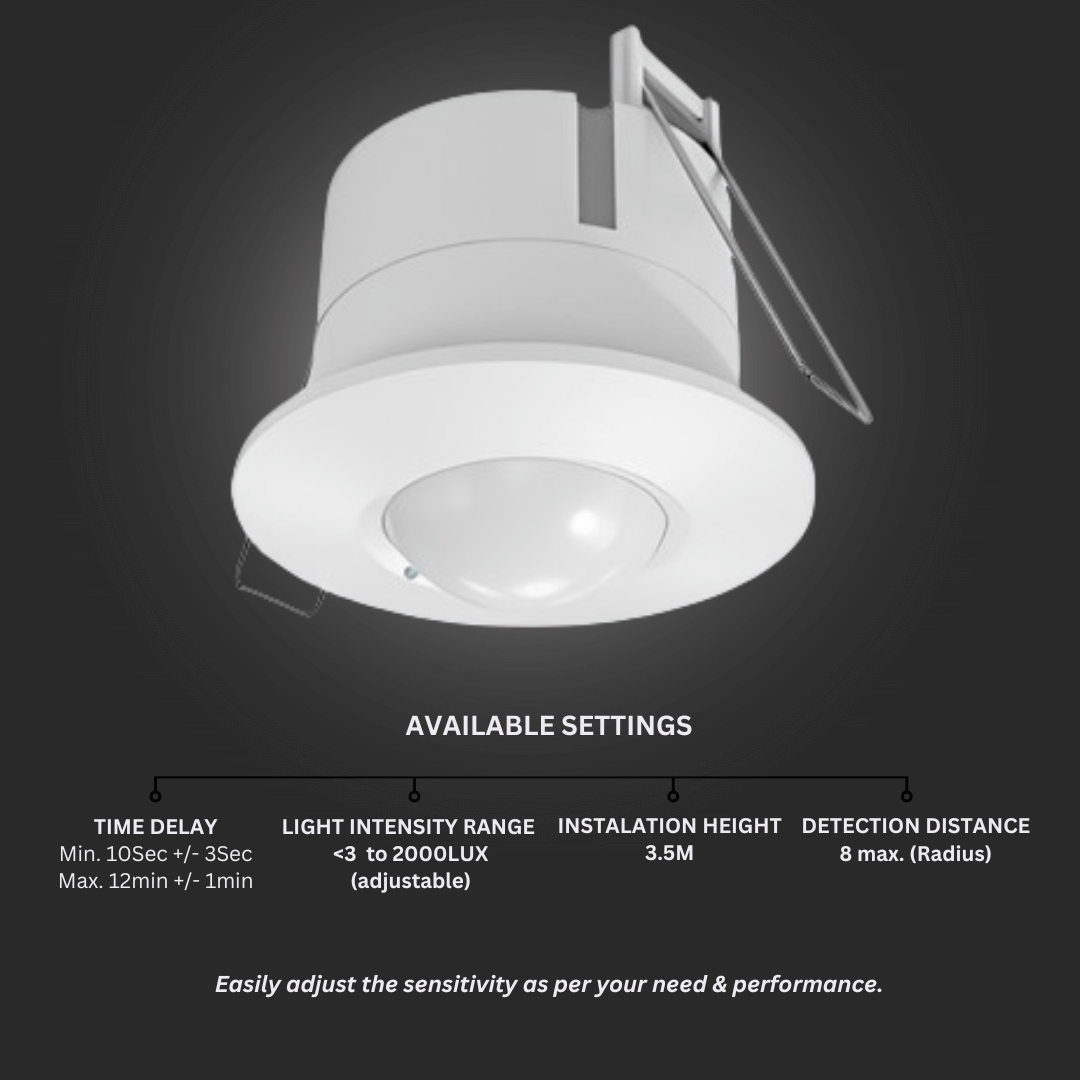

Time Delay10 sec ±3 sec to 12 min ±1 min

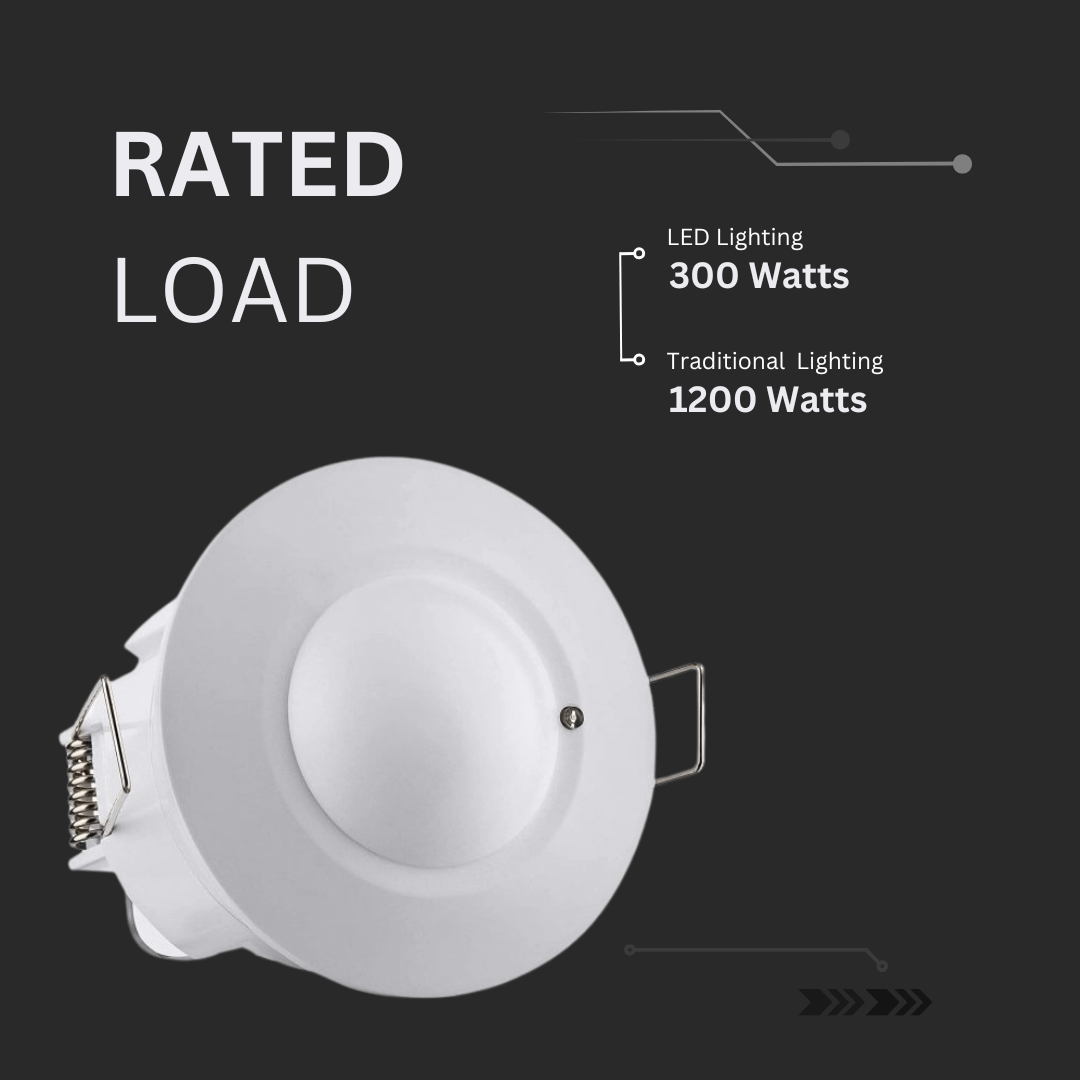

Rated Load1200W (Incandescent), 300W (LED)
Detection Range360°
Detection Distance1–8m (adjustable ceiling radius)
Ambient Light<3–2000 LUX
Installation Height1.5–3.5m
Power ConsumptionApprox. 0.9W
Number of Wires3 Wires
Detection Motion Speed0.6–1.5 m/s

Key Functional Modes

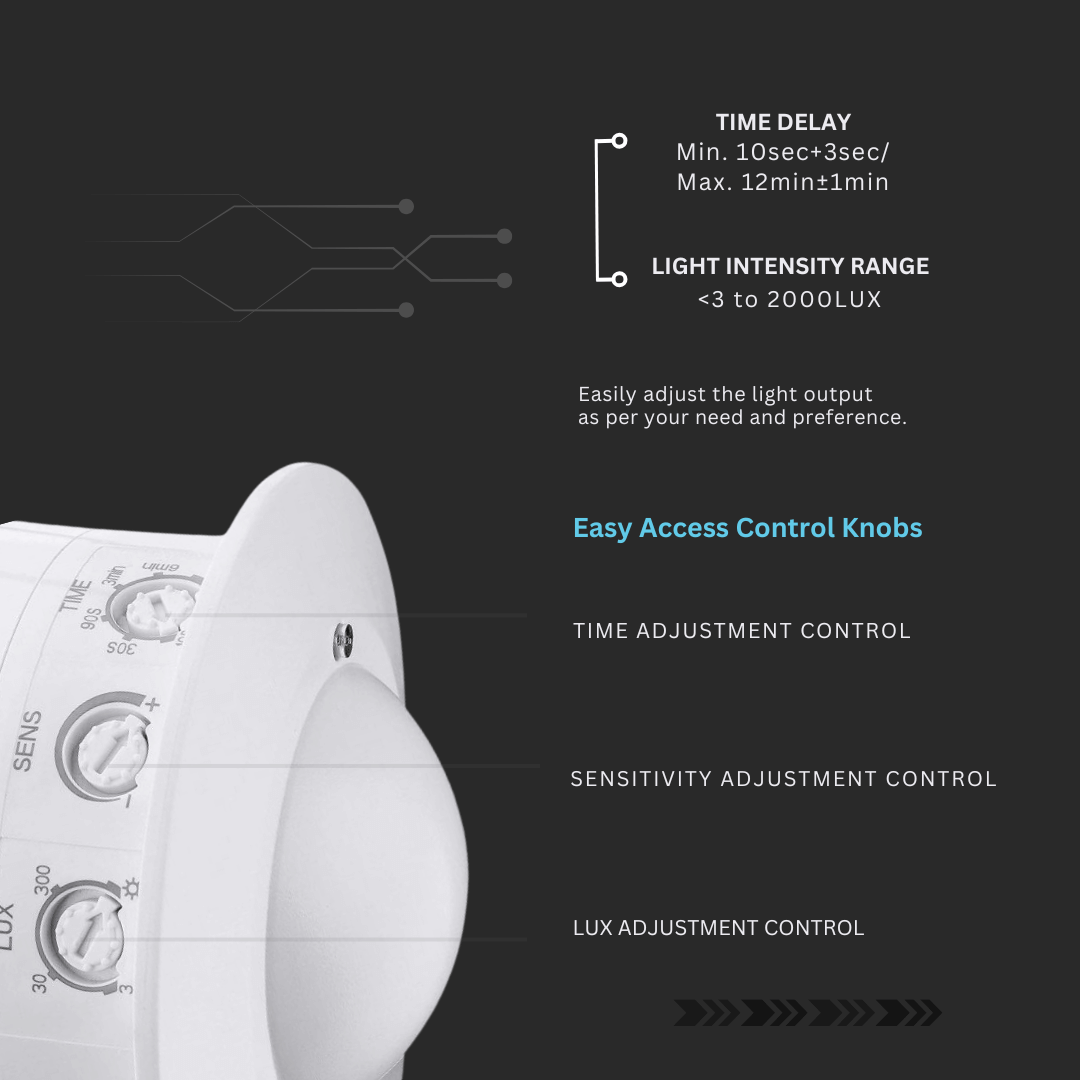

Daylight Sensitivity Adjustment

Responds to motion based on light levels

  • Activates light in low light conditions under <3 LUX
  • Daylight threshold adjustable up to 2000 LUX
  • Helps avoid unnecessary lighting
Auto Time Delay Reset

Tuned detection based on room size

  • Range configurable between 1m and 8m
  • Ideal for tight or open ceiling spaces
  • Reduces false triggers
LUX Sensitivity Test

Control duration of light-on after motion

  • Set between 10 seconds and 12 minutes
  • Resets on repeated motion
  • Improves energy savings

Installation Guide

  • Power Down: Switch off power before installation.
  • Access Terminals: Open the vinyl cover at the sensor base.
  • Wiring: Connect load and power wires to the terminal block as per the diagram.
  • Secure Wiring: Tighten terminal screws and replace the vinyl cover.
  • Mount Sensor: Fold metal springs into “I” position and insert into ceiling hole or box.

Troubleshooting & FAQs

1
Why isn’t the light activating during the day?
Set the LUX knob to “SUN” to enable daylight response.
2
Light stays on continuously. What's wrong?
Possible continuous motion in the detection area or incorrect positioning.
3
The light turns on with no visible movement.
May be detecting motion behind glass or a thin wall—adjust zone or placement.
4
Detection is inconsistent.
Turn the sensitivity (SENS) knob fully clockwise to ensure optimal response.
5
Can it be installed near glass or metal?
Avoid installation near such materials, as they may affect detection accuracy.
