AU-X700C

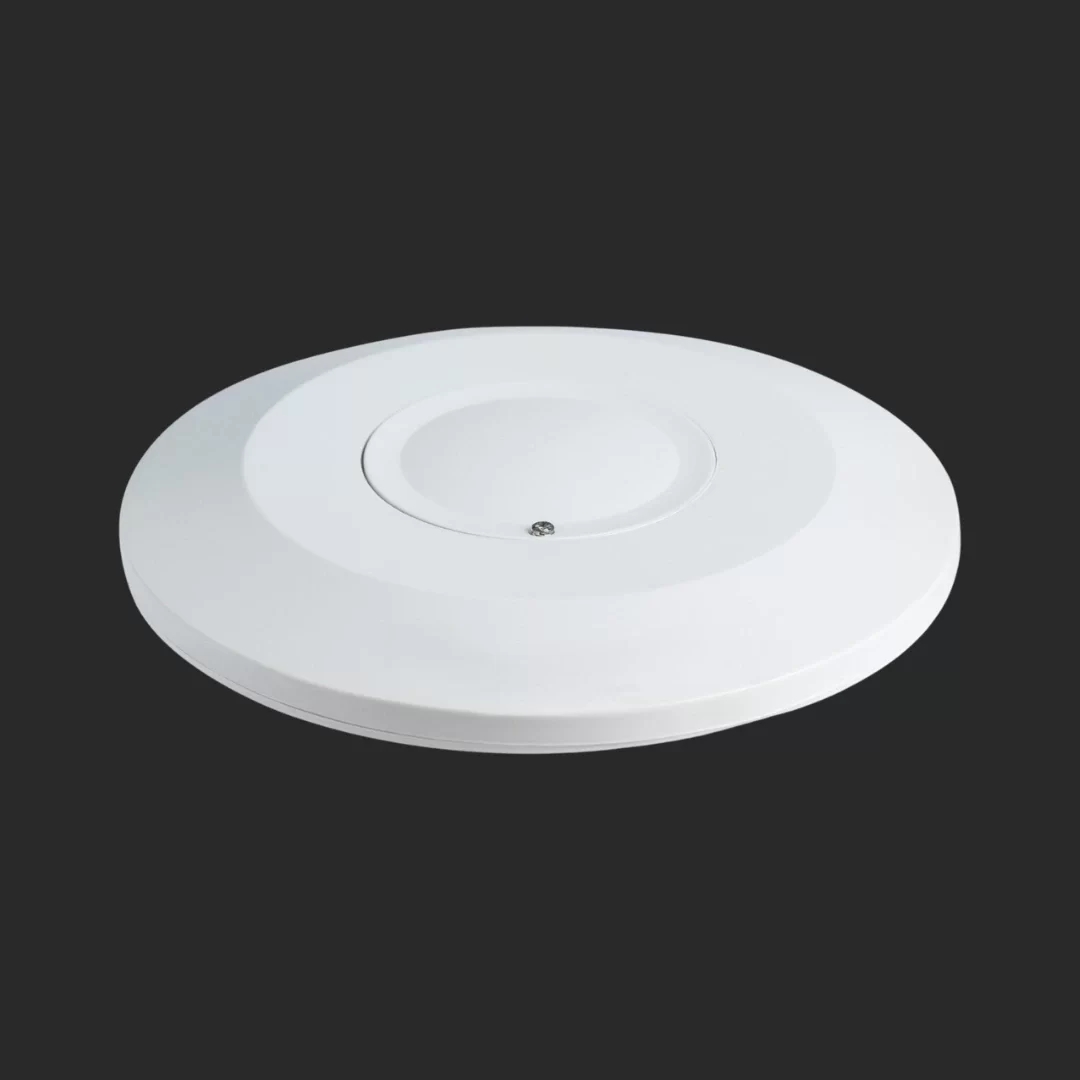

The AutronX AU-X700C is a 360° ceiling-mounted microwave motion sensor designed for reliable and efficient automation. Powered by a 5.8GHz CW radar system and integrated circuitry, it detects motion with precision across a wide radius, even through glass or thin walls.

This sensor is engineered for applications that require consistent motion tracking, such as cold storages, hotel lobbies, fire exits, and hospitals. With features like automatic day/night sensing, adjustable detection distance, and timing delay, the AU-X700C ensures intelligent lighting control and maximum energy savings.

Download Datasheet
Download Catalogue

Smart Detection

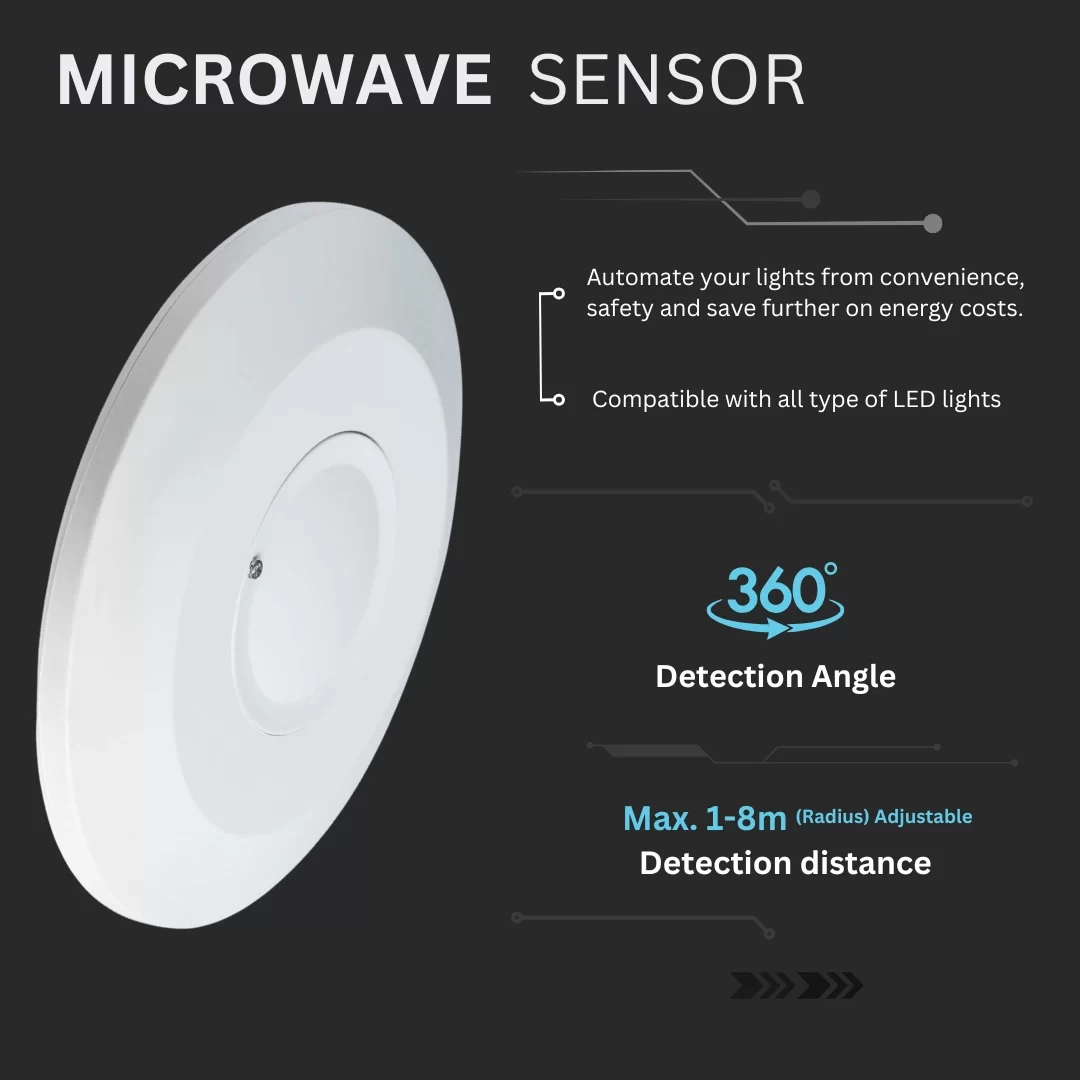

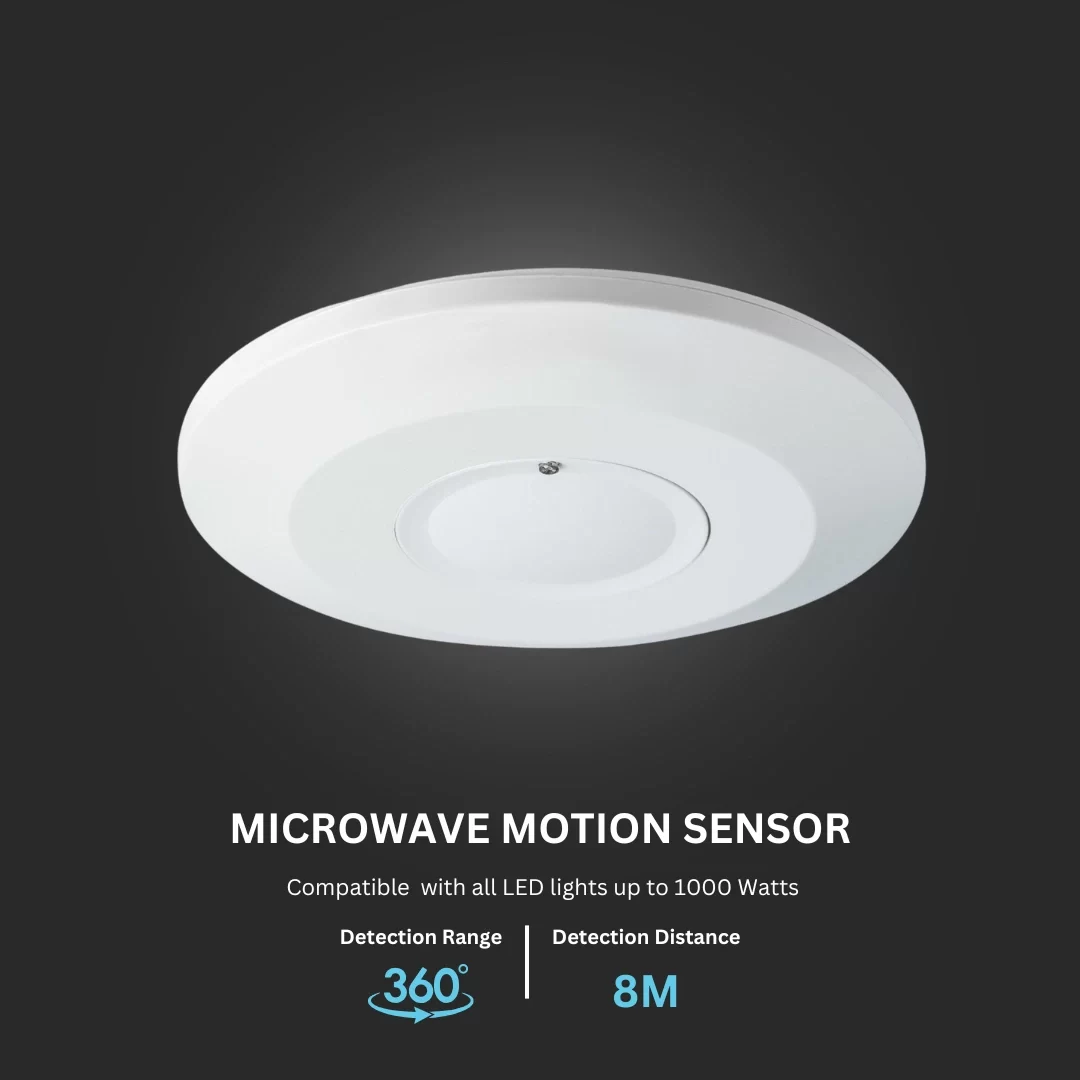

Covers up to 8m radius in all directions for complete ceiling-mounted coverage.

Energy Saving

Adjustable range (1–8m) and delay (10s–12min) based on room size or activity.

Easy Installation

Senses motion through glass, wood, and thin walls with no dead zones.

Technical Specifications

Model AU-X700C
Power Source 220-240V/AC || 50Hz
HF System 5.8GHz CW Radar, ISM Band
Transmission Power <0.2mW

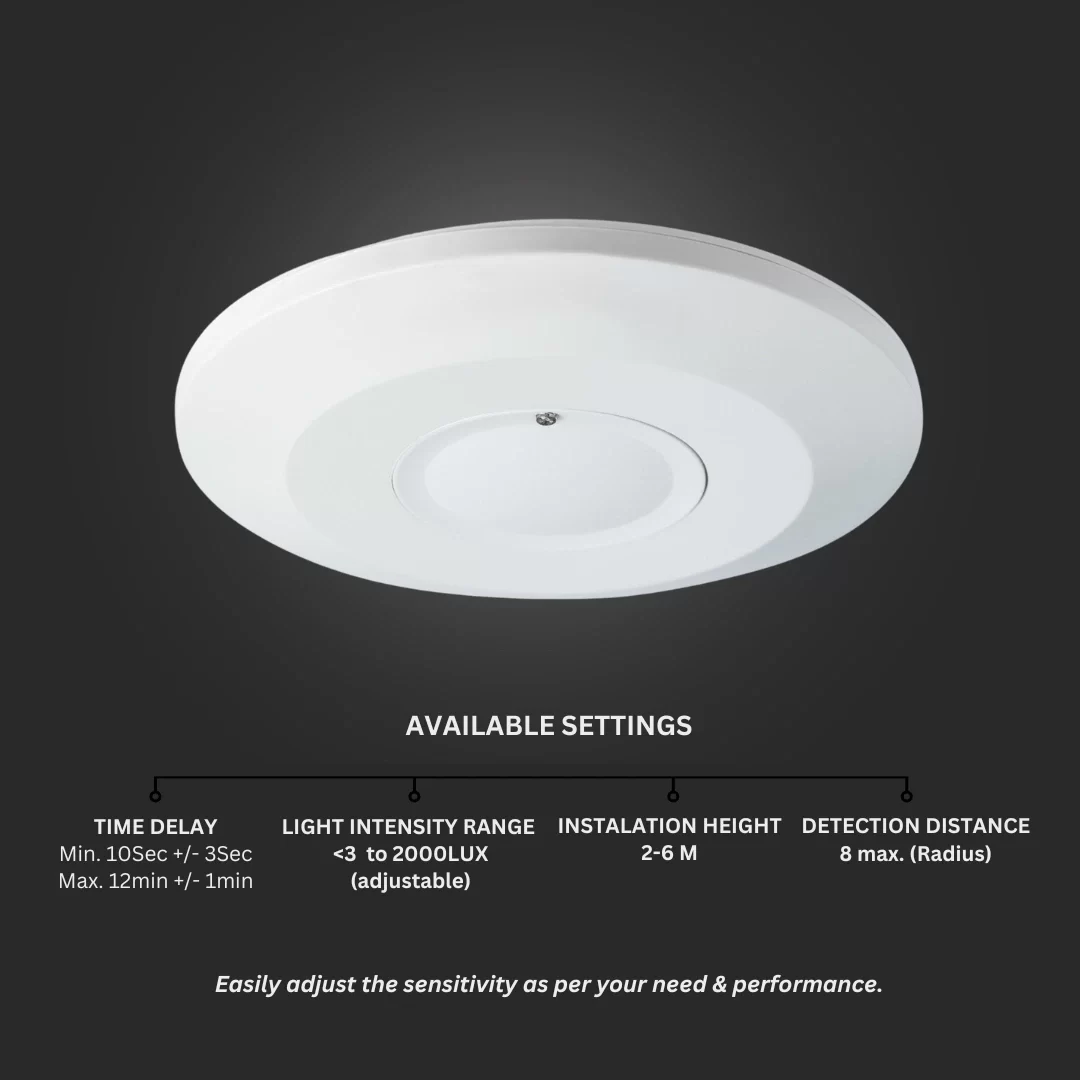

Time Delay Min. 10Sec ±3Sec, Max. 12Min ±1Min

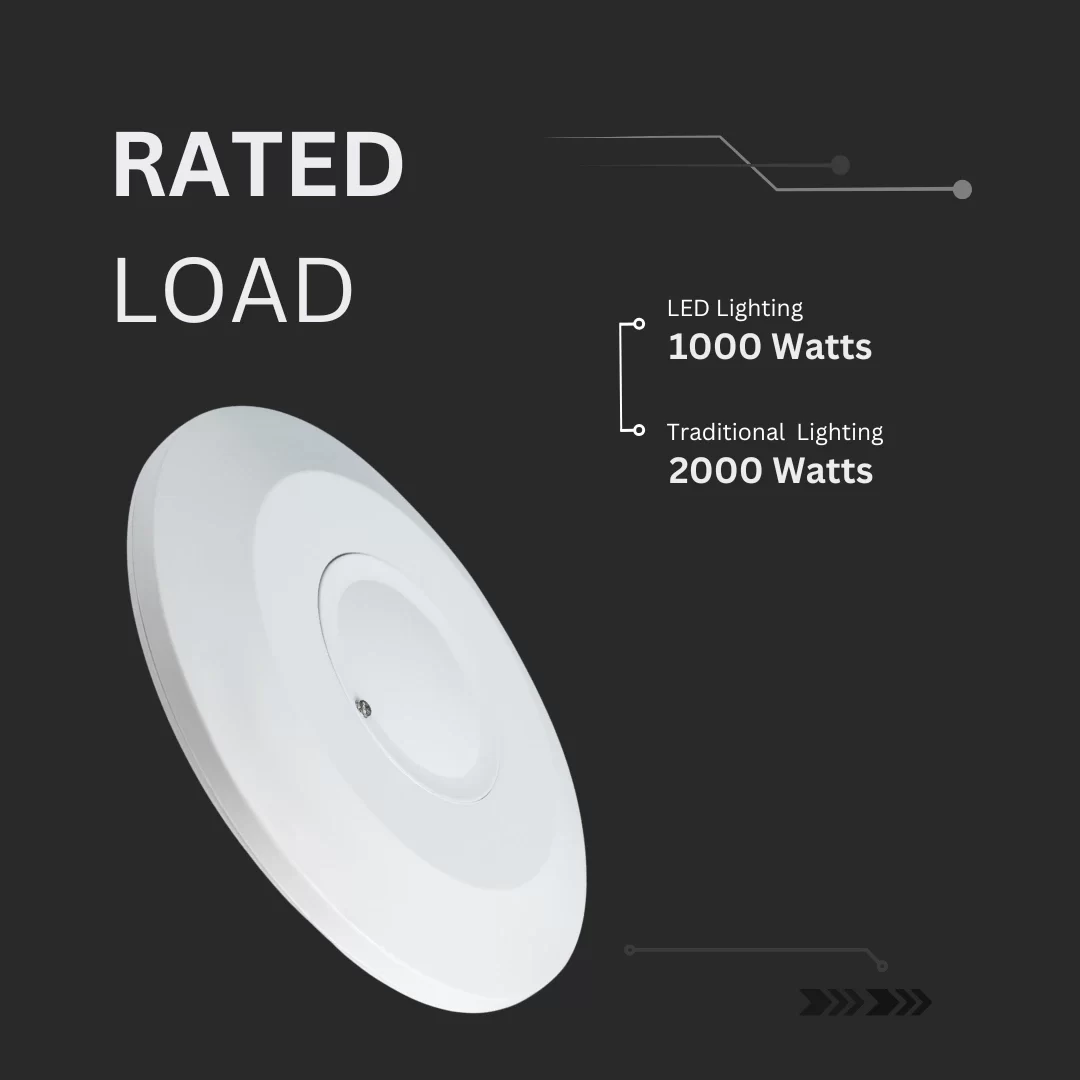

Rated Load 2000W (Incandescent), 1000W (LED Load)
Detection Range 360°
Detection Distance Ceiling: 1–8m (radius)
Ambient Light <3–2000 LUX
Installation Height Ceiling: 2–8m
Power Consumption Approx. 0.9W
No. of Wires 4 Wires
Detection Motion Speed 0.6–1.5m/s

Key Functional Modes

Day/Night Recognition

Automatically responds based on ambient light settings

  • Operates in full light or dark depending on LUX setting
  • Adjustable from <3 to 2000 LUX
  • Enhances energy efficiency in variable lighting
Adjustable Sensitivity

Tuned for different room sizes or activity levels

  • Detection radius adjustable from 1m to 8m
  • Ideal for small rooms or large lobbies
  • Minimises false triggers

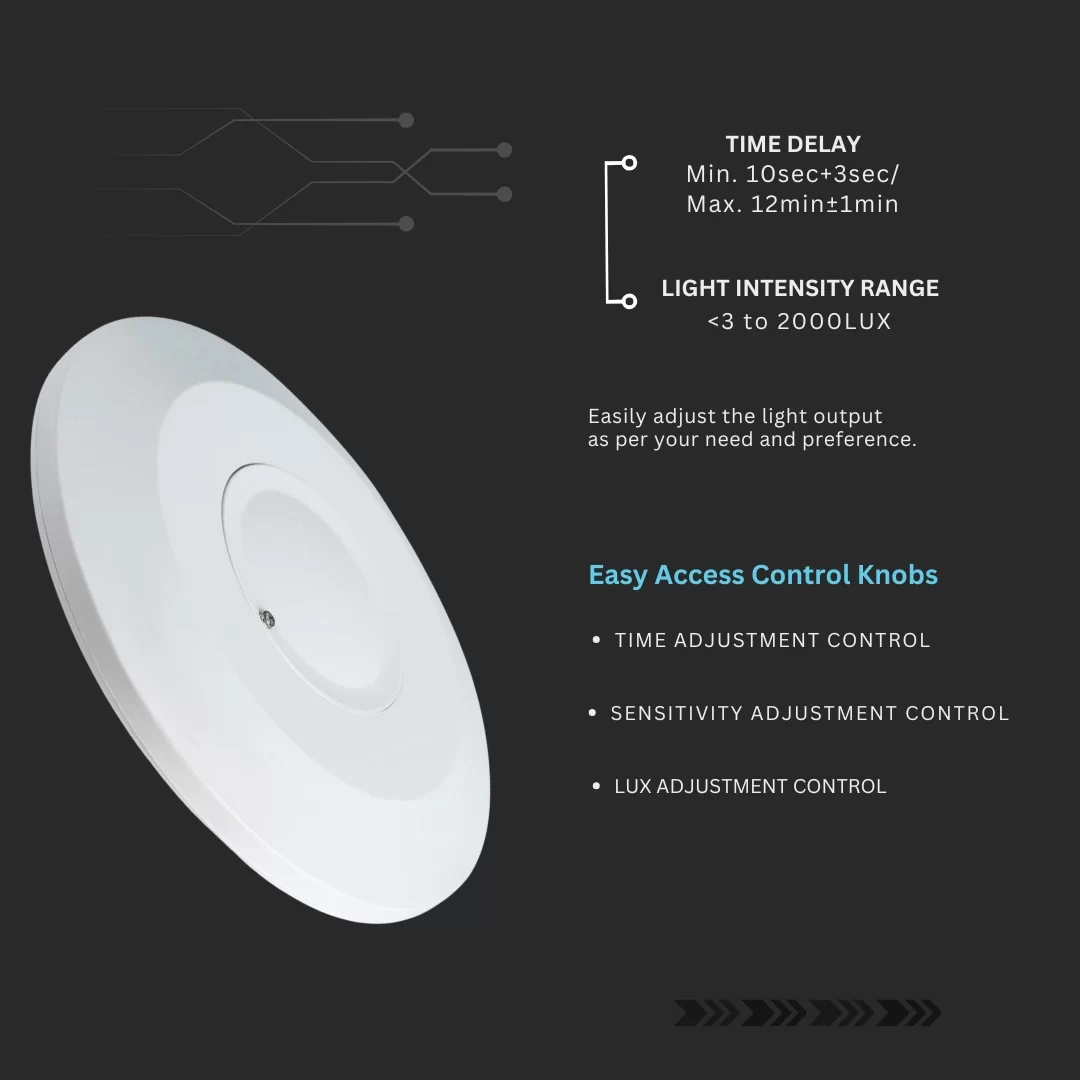

Customisable Time Delay

Controls light duration post detection

  • Set delay between 10 seconds and 12 minutes
  • Timer resets on continuous movement
  • Avoids unnecessary lighting during inactivity

Installation Guide

  • Power Down: Disconnect electrical supply before installation.
  • Open Sensor: Rotate the upper cover anti-clockwise to access wiring.
  • Wiring: Connect wires according to the diagram (L, N, Load, Earth).
  • Mounting: Fix the base securely on the ceiling using anchor screws.
  • Assemble: Reattach the cover, power up, and perform detection tests.

Troubleshooting & FAQs

1
Why doesn't the light turn on during the day?
Set the LUX knob to the “SUN” position to allow daylight detection.
2
The light stays on continuously. Why?
Check for constant movement or incorrectly positioned sensor facing high-traffic areas.
3
Light turns on with no visible movement.
Sensor may detect through nearby glass or thin partitions—adjust placement.
4
Detection seems too slow.
Increase sensitivity by turning the “SENS” knob fully clockwise.
5
Can I install this near metal or reflective surfaces?
Avoid doing so as it may interfere with detection accuracy.
