AU-X302

Smart, Energy Saving Detection for your spaces

AU_X302_1
AU_X302_2
AU_X302_3
AU_X302_4

AU-X302

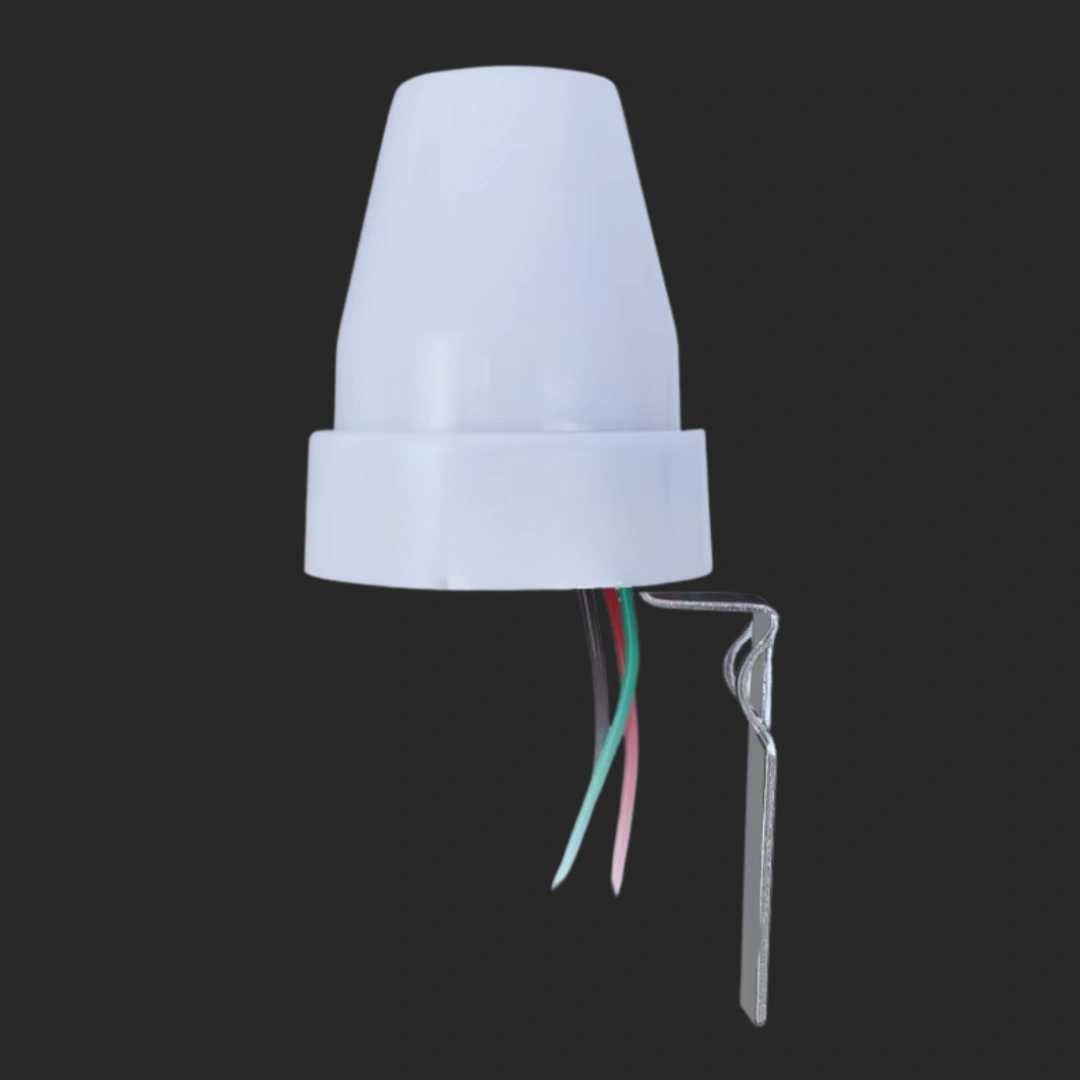

The AutronX AU-X302 is an LDR-based light sensor designed to automate lighting control based on ambient light intensity. With an adjustable sensing range of 5–50 LUX, it ensures lighting systems activate only when required, optimising energy consumption.

Operating on a 220–240V AC power supply, the AU-X302 is ideal for signboards, garden lights, and township street lighting. Its IP44-rated enclosure provides protection against environmental factors, making it suitable for reliable outdoor use.

Download Datasheet
Download Catalogue

Ambient Light Control

Automatically switches lights based on 5–50 LUX adjustable settings.

Weather Resistant Design

IP44 rated for outdoor installations like signboards and street lights.

High Load Capacity

Supports up to 10A current, ensuring compatibility with heavy-duty lighting.

Technical Specifications

ModelAU-X302
Sensing TypeLight Dependent (Photocell)
Input Power Supply220–240V AC, 50/60Hz
Ambient Light<5–50 LUX (adjustable)
Rated Load10 Amp
Working Temperature–20°C to +40°C
Working Humidity<93% RH
IP RatingIP44
Number of Wires3 Wires

Key Functional Modes

LUX-Based Switching
Controls load activation based on ambient light
  • Adjustable from 5 to 50 LUX
  • Ensures lights operate only when needed
  • Supports energy-efficient automation
Day/Night Automation Mode
Seamless light control for outdoor use
  • Activates load at night, deactivates in daylight
  • Ideal for signage and landscape lighting
  • Maintains optimal energy usage
Environmental Protection Mode
IP44-rated for outdoor reliability
  • Withstands moderate rain and dust
  • Suitable for public installations
  • Ensures longevity and stable operation

Installation Guide

  • Power Off: Ensure power is disconnected before installation.

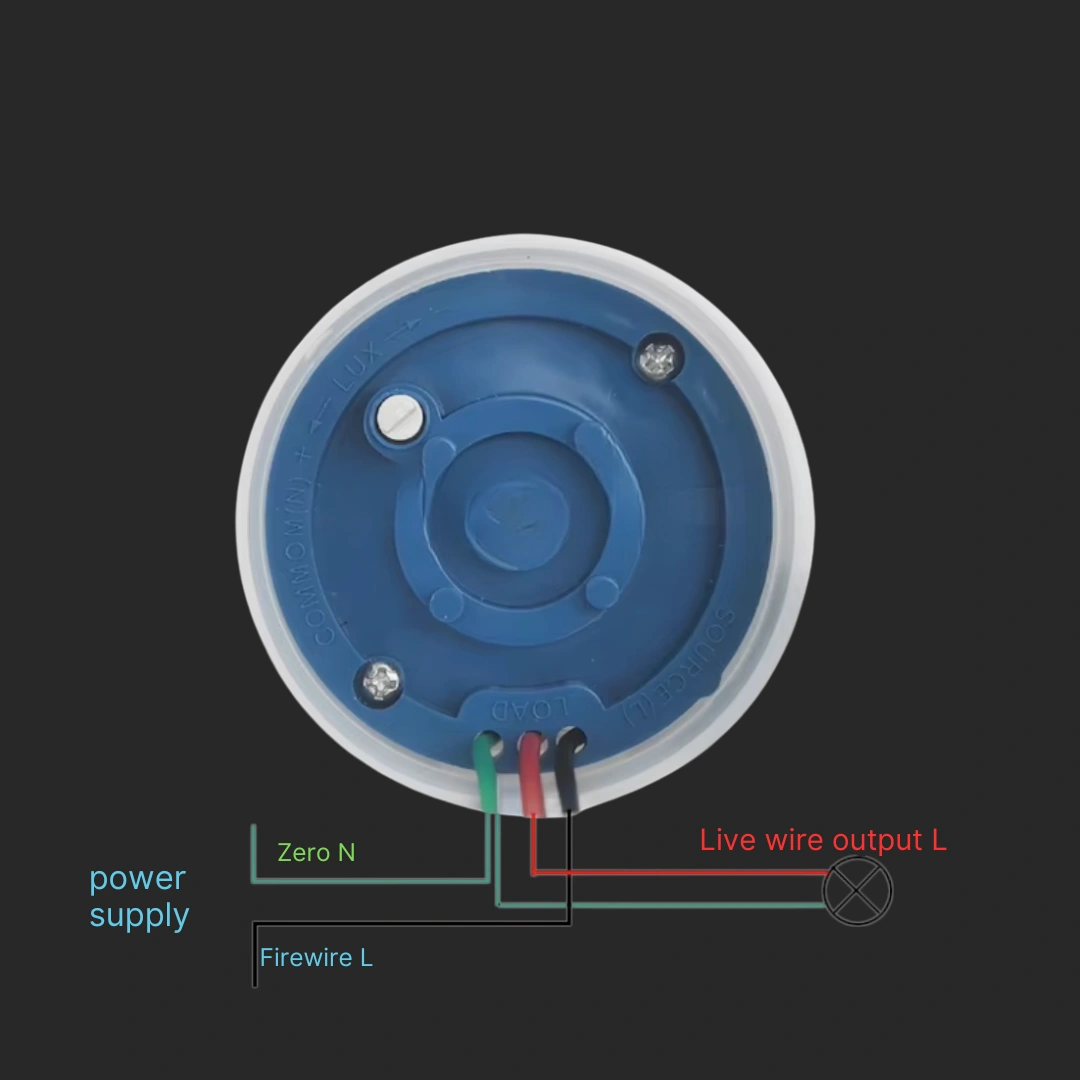

  • Wiring: Connect input and load wires as per the wiring diagram.

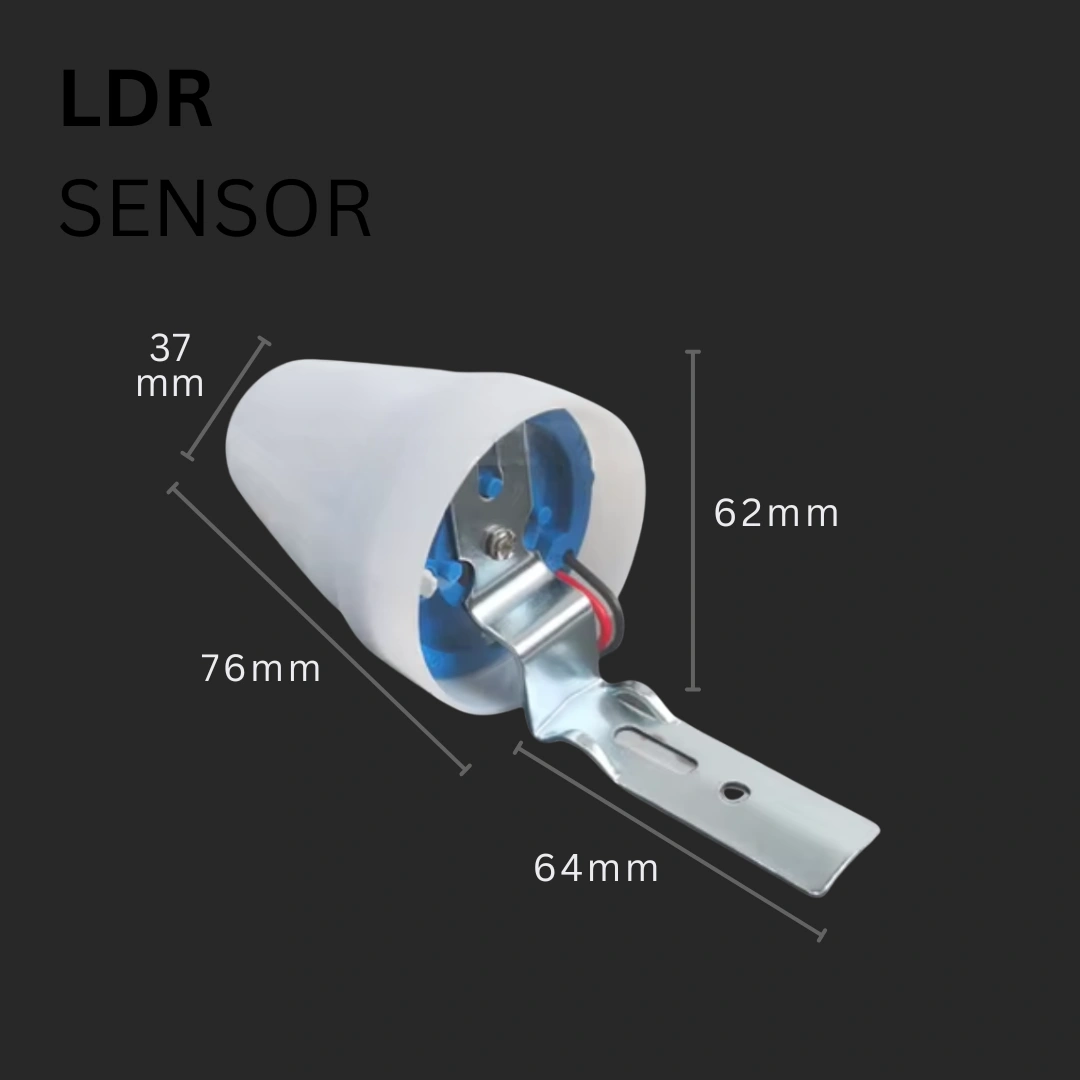

  • Mounting: Fix the sensor using the provided metal bracket and screws.
  • Test Sensor: Cover the detection window with a black cloth to simulate darkness for testing.
  • Adjust Settings: Set the LUX knob to desired threshold for operation (5 to 50 LUX).

Troubleshooting & FAQs

1
Why doesn’t the sensor activate the load during testing?
Cover the sensor with a black opaque cloth to simulate darkness and check LUX settings.
2
Can this sensor be used in exposed outdoor locations?
Yes, with IP44 protection, it can be used for outdoor lighting applications.
3
How do I adjust the light sensitivity?
Rotate the LUX knob anti-clockwise for lower light activation (5 LUX) or clockwise for higher light activation (up to 50 LUX).
4
What happens if the power supply is unstable?
The sensor's internal timer will reset if power is interrupted for more than 2–5 seconds.
5
Is this sensor suitable for garden lighting?
Yes, it is ideal for garden, signboard, and streetlight automation based on light levels.
