AU-X300

Smart, Energy Saving Detection for your spaces

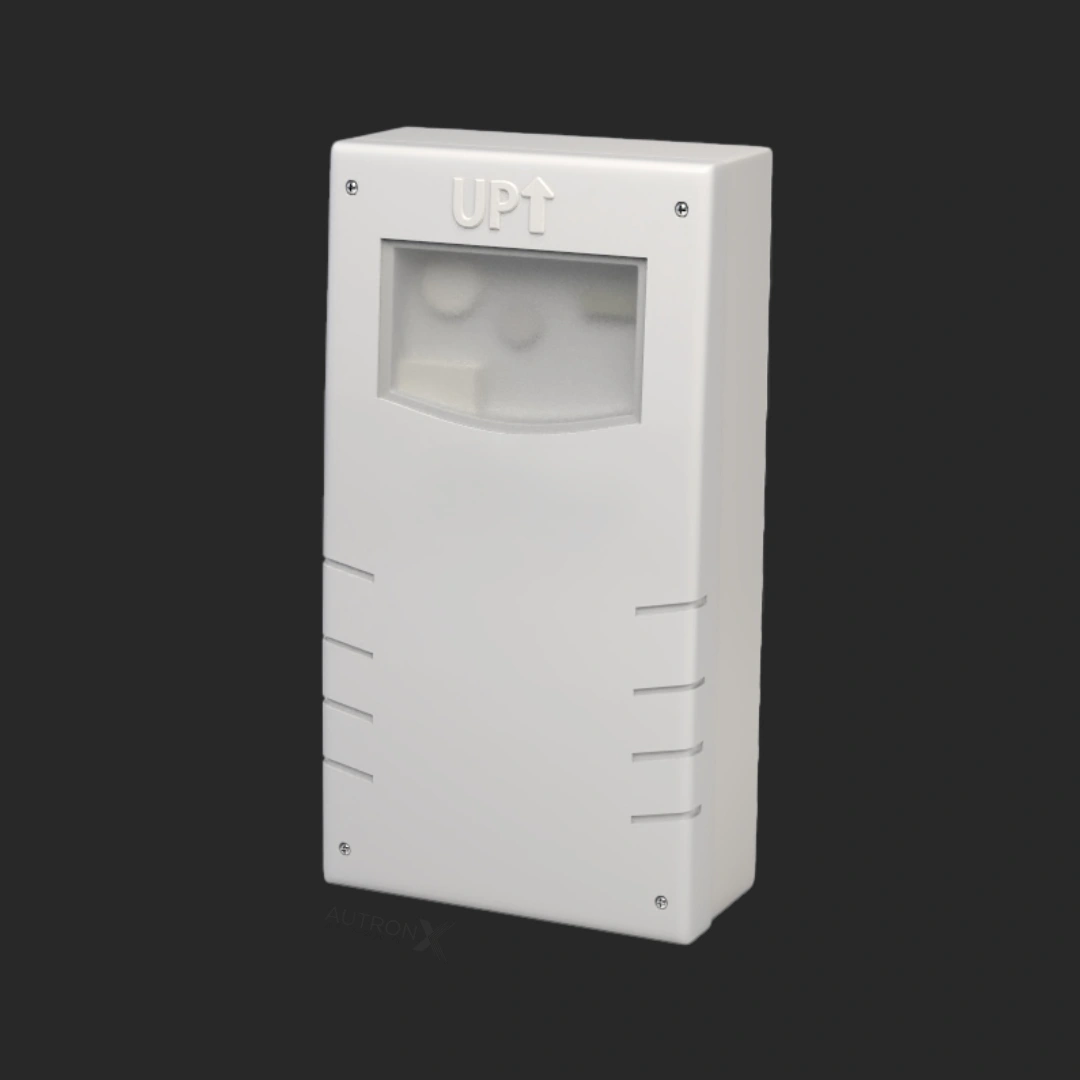

AU_X300_1

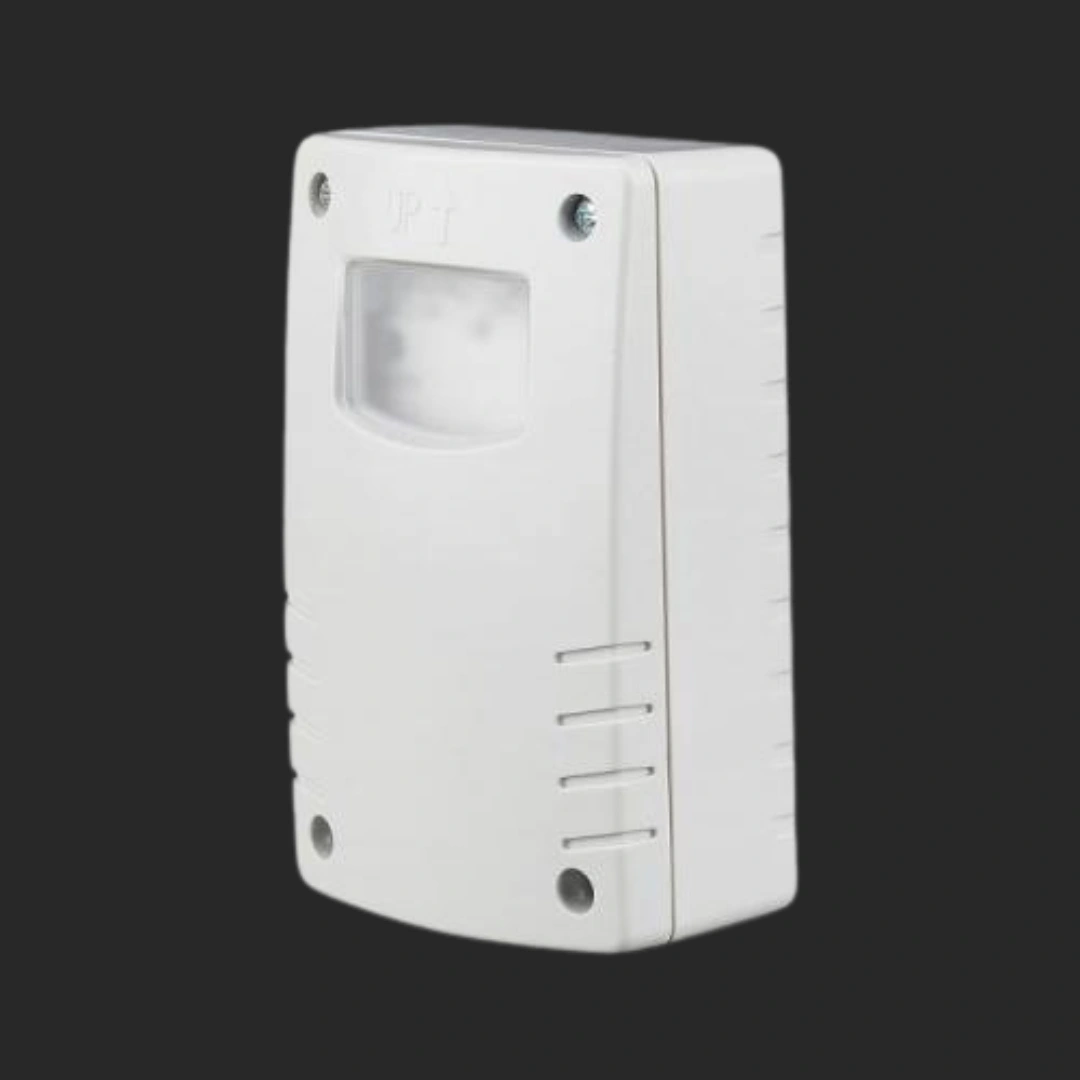

AU_X300_2

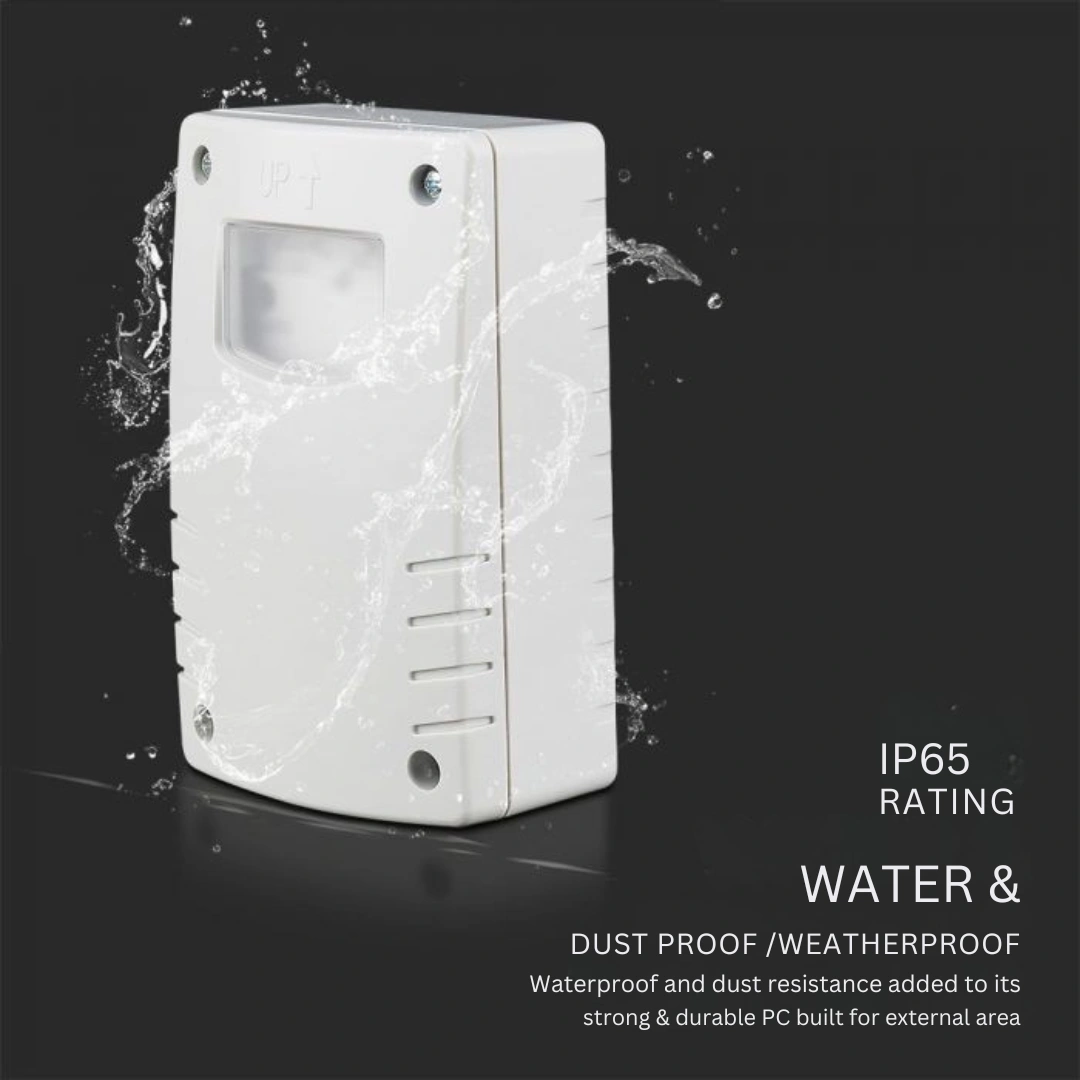

AU_X300_3

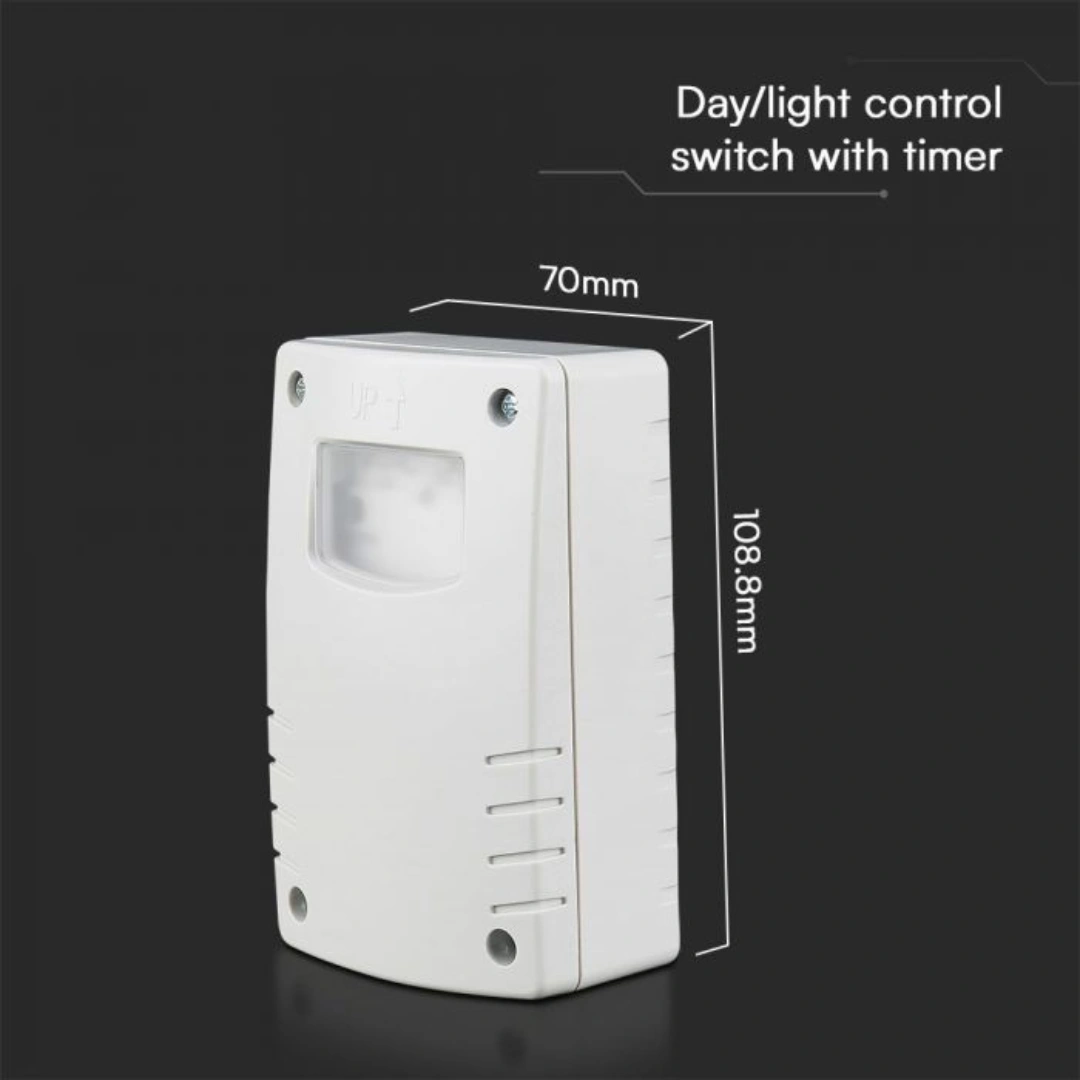

AU_X300_4

AU-X300

The AutronX AU-X300 is a light-dependent resistor (LDR) sensor timer designed to automate lighting control based on ambient light levels. With an adjustable sensing range of 5–500 LUX, it triggers connected loads like lamps or streetlights to switch on or off depending on light intensity.

Featuring a built-in timer (1–9 hours), the AU-X300 ensures efficient energy usage by controlling light operation duration. Its robust design is suitable for outdoor applications such as garden lighting, signboards, and township street lights, providing seamless day/night automation.

Download Datasheet
Download Catalogue

Day/Night Light Automation

Turns lights ON/OFF based on ambient light levels between 5–500 LUX.

Integrated Timer Function

Set operational time from 1 to 9 hours for controlled usage.

High Load Capacity

Handles up to 10A current load with stable performance for outdoor lighting.

Technical Specifications

ModelAU-X300
Sensing TypeLight Dependent (Photocell)
Input Power Supply220–240V AC, 50Hz
Ambient Light<5–500 LUX (adjustable)
Rated Load10 Amp
Built-in Timer1–9 Hours (adjustable)
Working Temperature–20°C to +40°C
Working Humidity<93% RH
Number of Wires4 Wires

Key Functional Modes

LUX-Based Light Control
Automatically switches load based on light intensity
  • Adjustable from 5 to 500 LUX
  • Ideal for night-time activation
  • Enhances energy savings
Programmable Timer Mode
Allows load to stay ON for selected hours
  • Timer adjustable from 1 to 9 hours
  • Ensures controlled light usage
  • Resets if power is interrupted for over 2–5 seconds
Outdoor Lighting Automation
Perfect for signage and public lighting
  • Reliable performance in varying light
  • IP-rated protection (as per usage)
  • Practical for street and garden lights

Installation Guide

  • Power Off: Switch off power before installation for safety.
  • Access Terminals: Open the cover by loosening four screws.
  • Wiring: Connect input and load wires as per the provided diagram.
  • Mounting: Fix the product using enclosed screws in the desired location.
  • Test Operation: Cover the sensor to simulate darkness and verify activation, adjusting LUX and timer settings as needed.

Troubleshooting & FAQs

1
Why doesn’t the load activate during testing?

Cover the sensor with a black polythene to simulate low light; ensure settings are correct.

2
How does the timer function work?
Once triggered, the load will stay ON for the set time (1–9 hours), then switch off.
3
Can the timer reset if power is interrupted?
Yes, a power cut over 2–5 seconds resets the timer.
4
Can it be used under direct lighting fixtures?
No, avoid installing the photocell where light directly irradiates the sensor.
5
What is the maximum load capacity?
Supports up to 10 Amp load for connected lighting systems.
