AU-X15

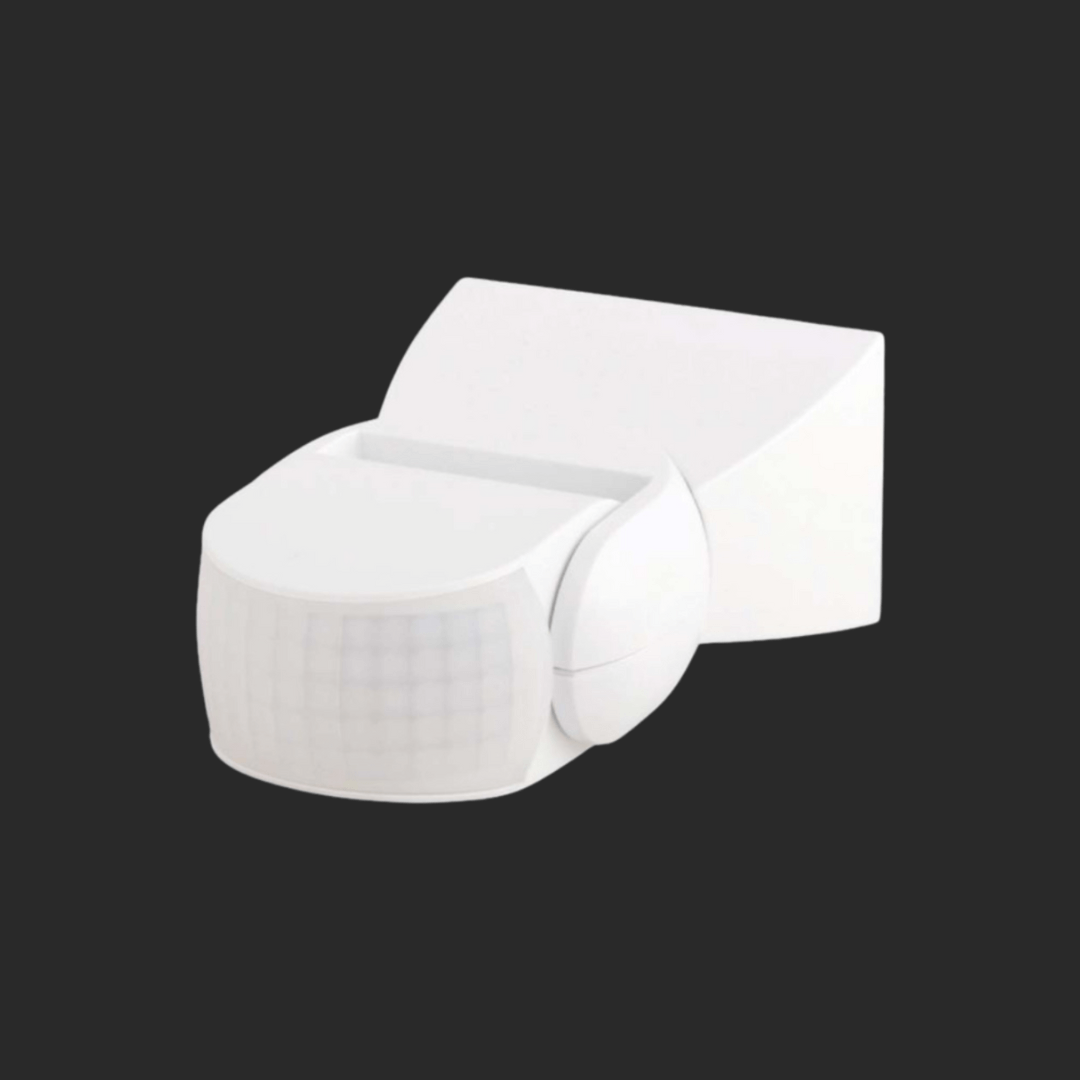

The AutronX AU-X15 is a ceiling-mounted PIR motion sensor designed for efficient and intelligent lighting control. It integrates a high-sensitivity infrared detector with an advanced internal circuit to deliver instant activation upon detecting human motion within its coverage zone.

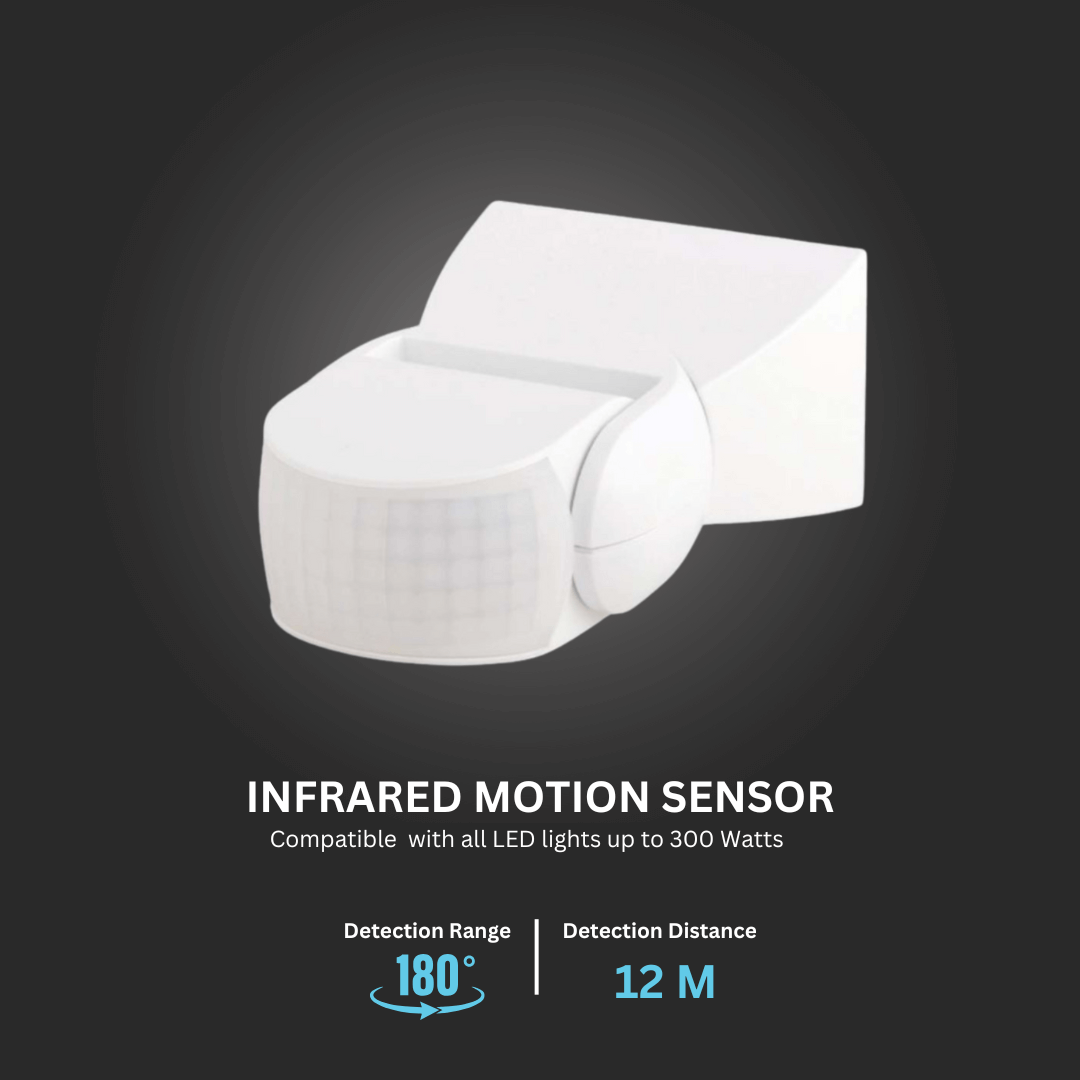

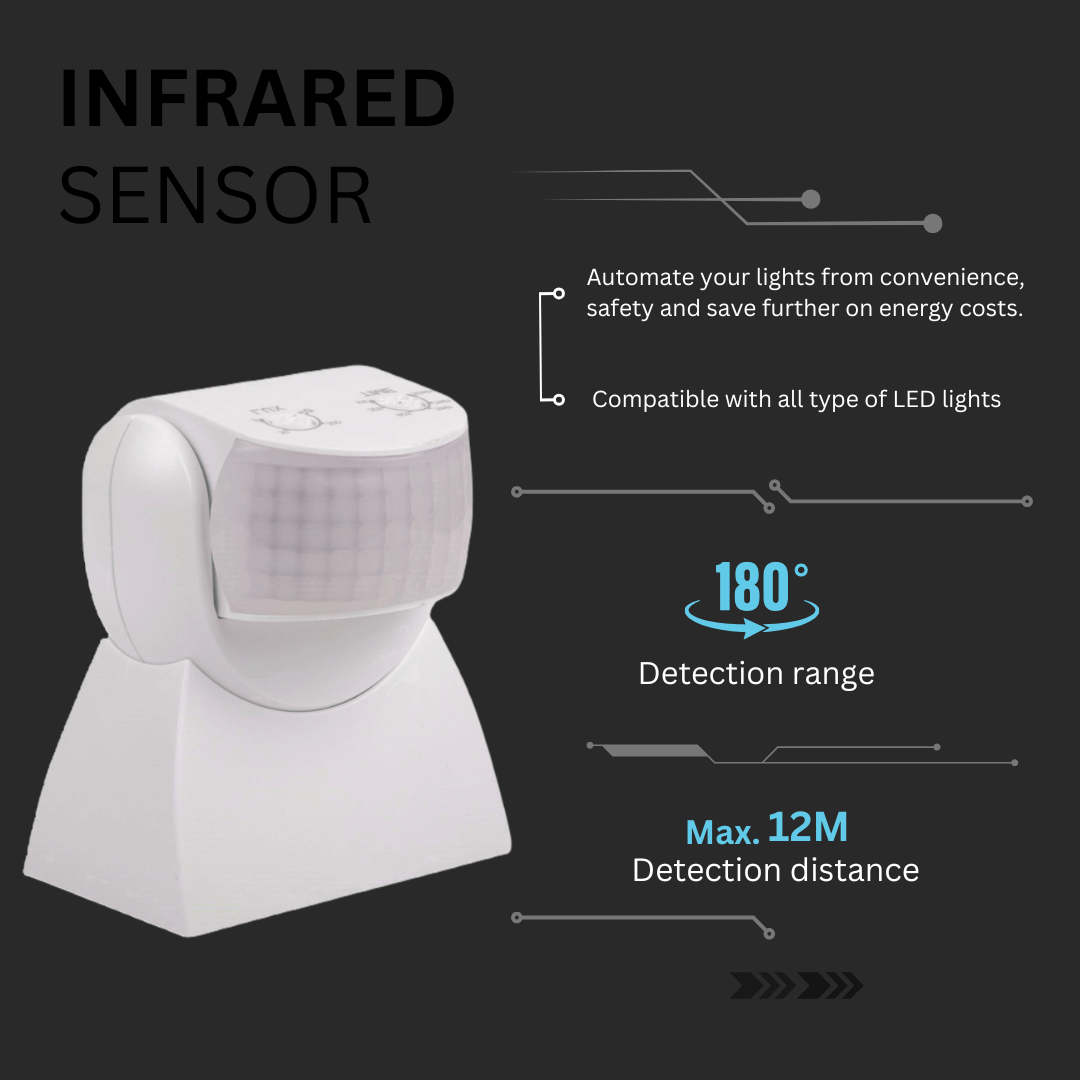

With a wide 180° detection angle and up to 12 meters range, the AU-X15 automatically responds to body heat and movement, making it ideal for energy-saving applications. The sensor can distinguish between day and night using an adjustable LUX setting, allowing it to operate only when required.

Perfect for environments like staircases, parking areas, lift lobbies, stores, and fire exits, the AU-X15 ensures convenience, safety, and reduced energy wastage through reliable motion sensing automation.

Download Datasheet
Download Catalogue

Wide Detection Coverage

Monitors a 180° field with up to 12m sensing distance, ensuring large area coverage.

Day/Night Detection Control

Adjustable LUX allows operation based on ambient light conditions.

Energy Efficient

Consumes just 0.5W and reduces unnecessary lighting, ideal for high-traffic zones.

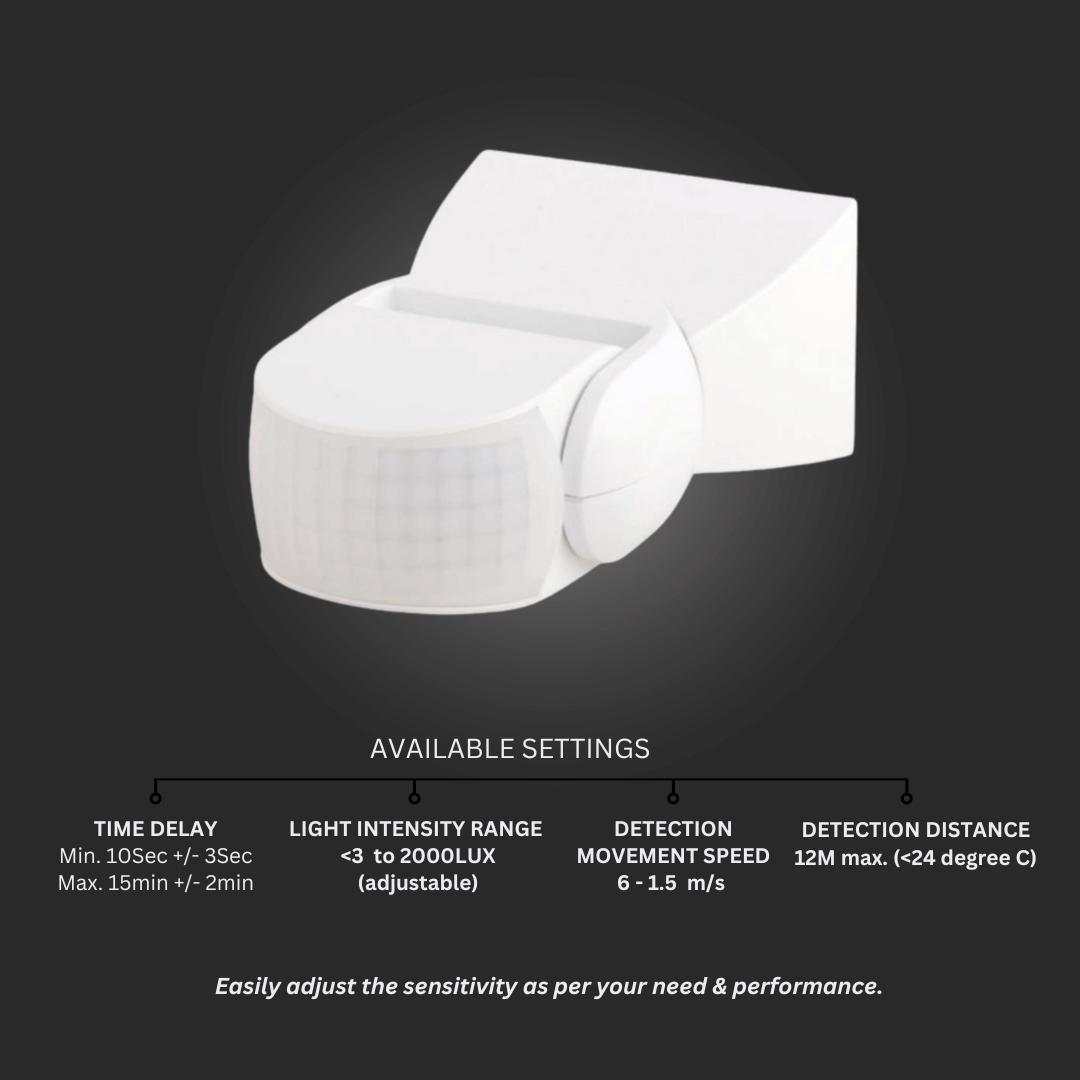

Technical Specifications

Specification ItemAU-X15
Power Source220–240V AC, 50Hz
Detection Range180°
Detection DistanceUp to 12m (<24°C)
Ambient Light<3–2000 LUX (Adjustable)

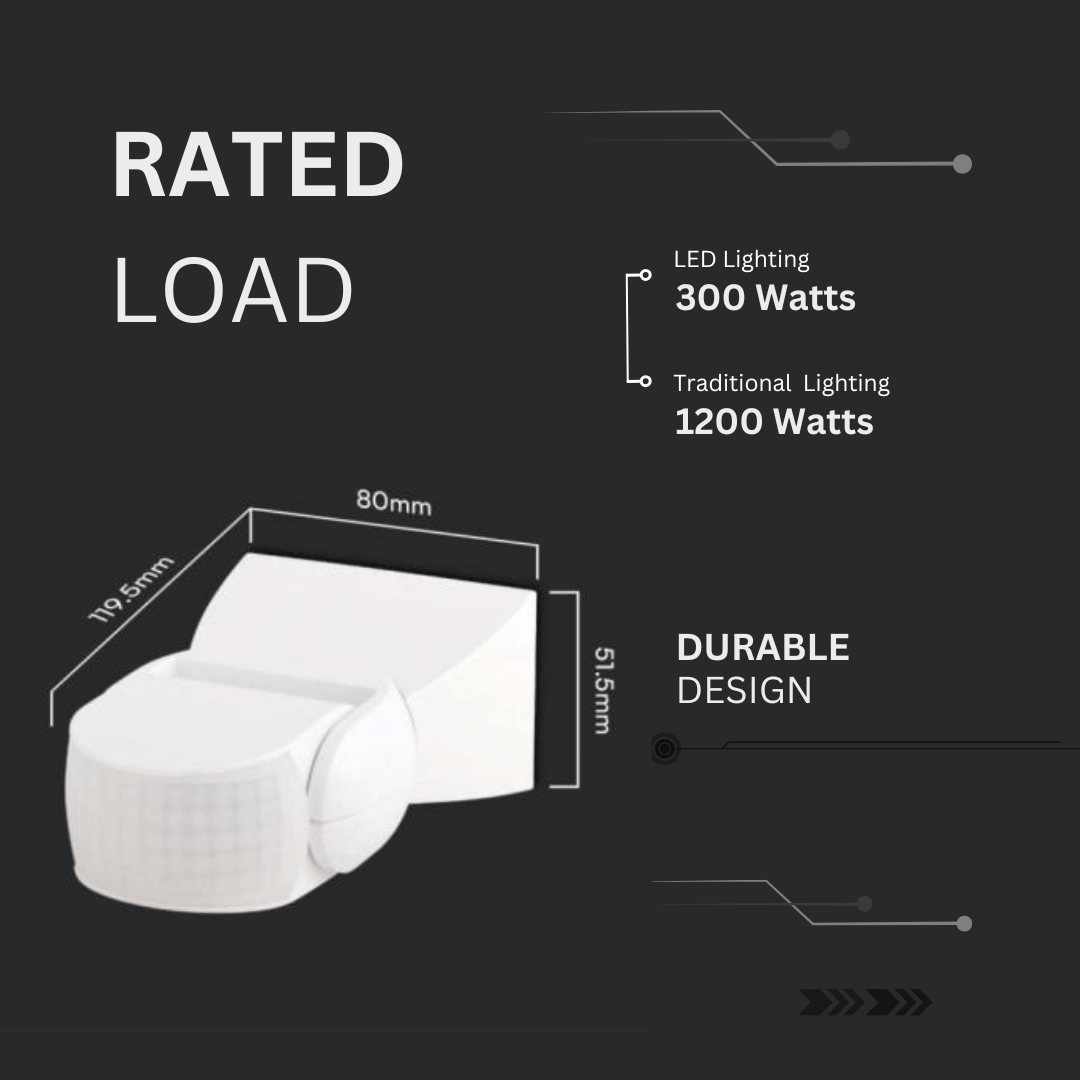

Rated Load1200W (Incandescent), 300W (LED)
Time DelayMin. 10 sec ±3 sec, Max. 15 min ±1 min
Installation HeightCeiling: 2.2–4m
Power ConsumptionApprox. 0.5W
Working Temperature-20°C to +40°C
Working Humidity<93% RH
No. of Wires3 Wires
Detection Motion Speed0.6–1.5 m/s

Key Functional Modes

Day/Night Auto Detection
Automatically identifies ambient light to decide when to operate.
  • Set to “Sun” mode for all-day activation.
  • Set to “3 LUX” for dark-only environments.

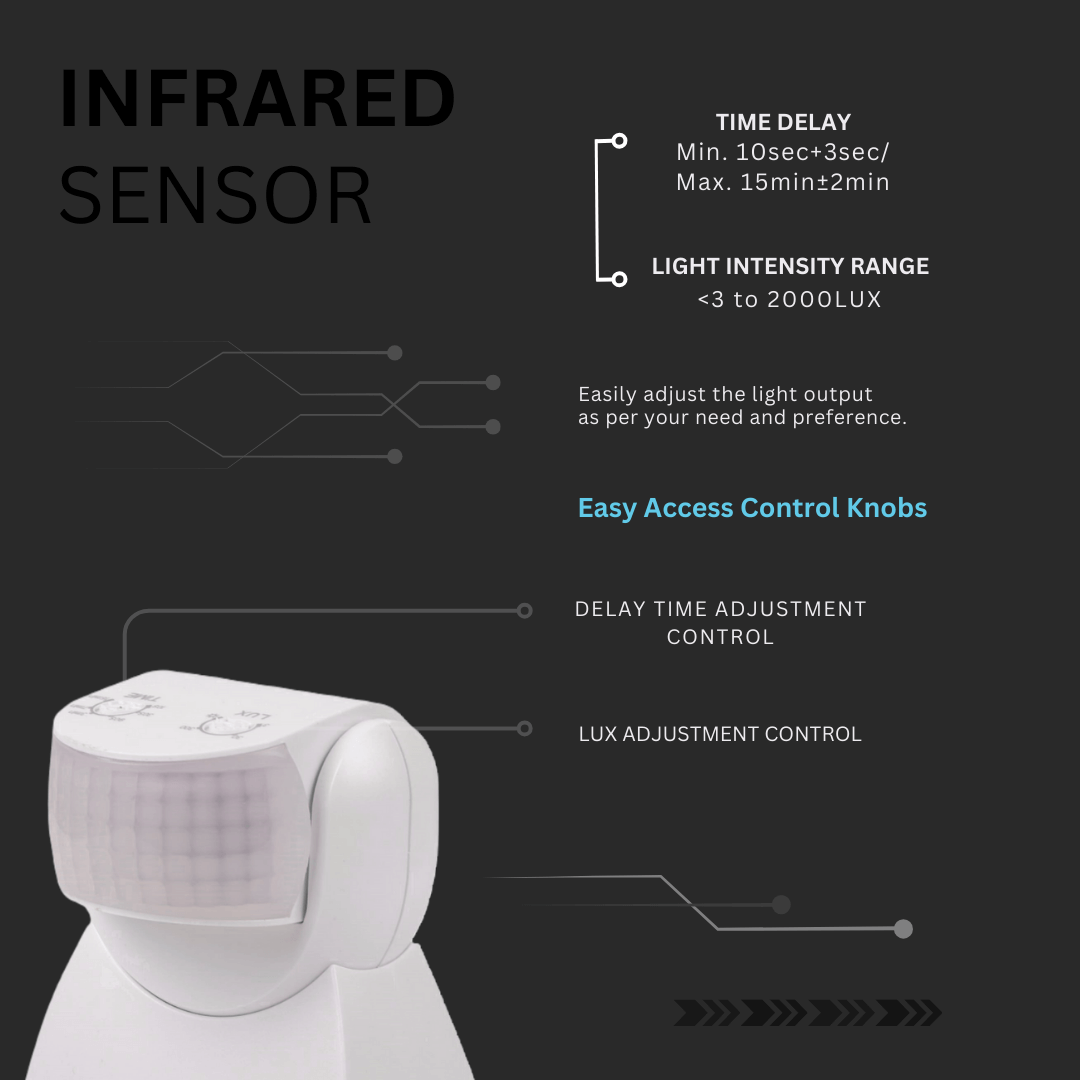

  • Adjust using the LUX knob.
Smart Time Delay Reset
Resets countdown each time new motion is detected.
  • Avoids lights switching off during ongoing activity.
  • Delay adjustable up to 15 minutes.
  • Enhances user convenience.
Motion-Activated Brightness
Lights activate to full brightness when motion is detected.
  • Ideal for hallways and high-traffic areas.
  • Returns to off after set duration.
  • Prevents energy waste.

Installation Guide

  • Avoid reflective surfaces like mirrors and nearby heat sources.
  • Ensure the sensor is not facing moving objects like curtains or plants.
  • Unscrew the base and route wires through the provided gasket hole.
  • Connect wires as per the diagram and securely fix the base.
  • Reattach the sensor, tighten the screw, and power on for testing.

Troubleshooting & FAQs

1
Why is the sensor not turning on during the day?
Ensure the LUX knob is set to the "Sun" position for daylight operation.
2
The light stays on constantly. What could be wrong?
Check for continuous movement in the detection zone or reduce sensitivity.
3
The sensor doesn't detect motion. What should I do
Verify mounting position and ensure no obstructions or reflective surfaces affect detection.
4
How do I test the sensor quickly?
Set TIME to minimum and LUX to maximum. The sensor should activate after a 30s warm-up if motion is present.
5
What causes erratic operation in dark environments?
Check LUX settings and ensure the environment's light level is below the set threshold.
