AU-X123

Smart, Energy Saving Detection for your spaces

AU_X123_1
AU_X123_2
AU_X123_3
AU_X123_4

AU-X123

The AutronX AU-X123 is a compact infrared sensor designed to automate lighting and cooling based on door movement. With a sensing range of 5–6cm, it detects the opening and closing of cabinet or wardrobe doors, triggering electrical loads accordingly.

This sensor enhances energy efficiency by ensuring lights or cooling systems operate only when necessary. Suitable for concealed or surface mount installation, the AU-X123 is perfect for wardrobes, cabinets, and kitchen applications where automated control is essential.

Download Datasheet
Download Catalogue

Precise Door Detection

Monitors door position with a 5–6cm IR sensing range for instant response.

Energy-Saving Automation

Automatically switches lights or systems ON/OFF based on door status.

Flexible Installation

Supports concealed and surface mount options for various cabinet designs.

Technical Specifications

ModelAU-X123
Product NameSingle Door AC Sensor
Input Power Supply220–240V AC, 50/60Hz

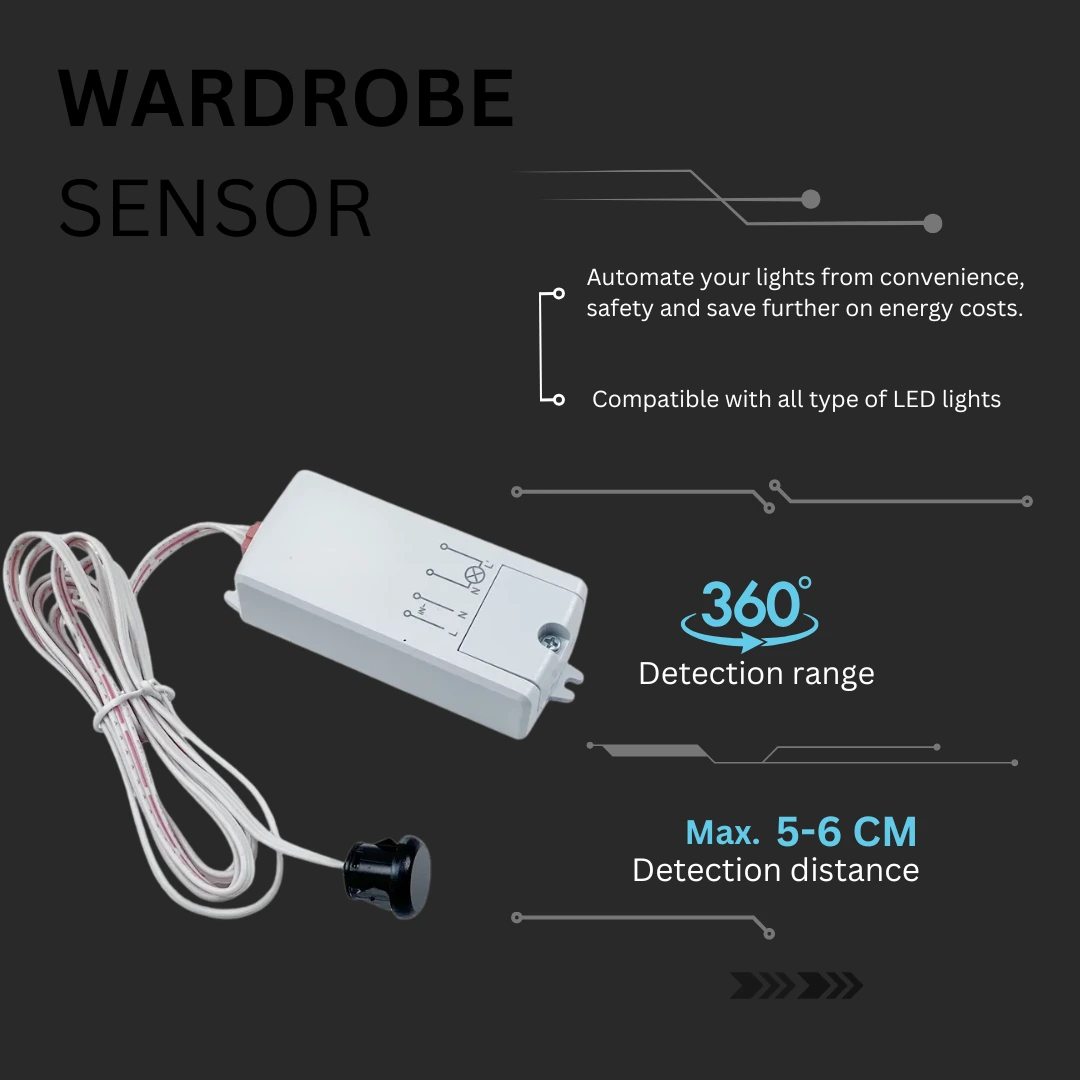

Sensing Range5–6cm

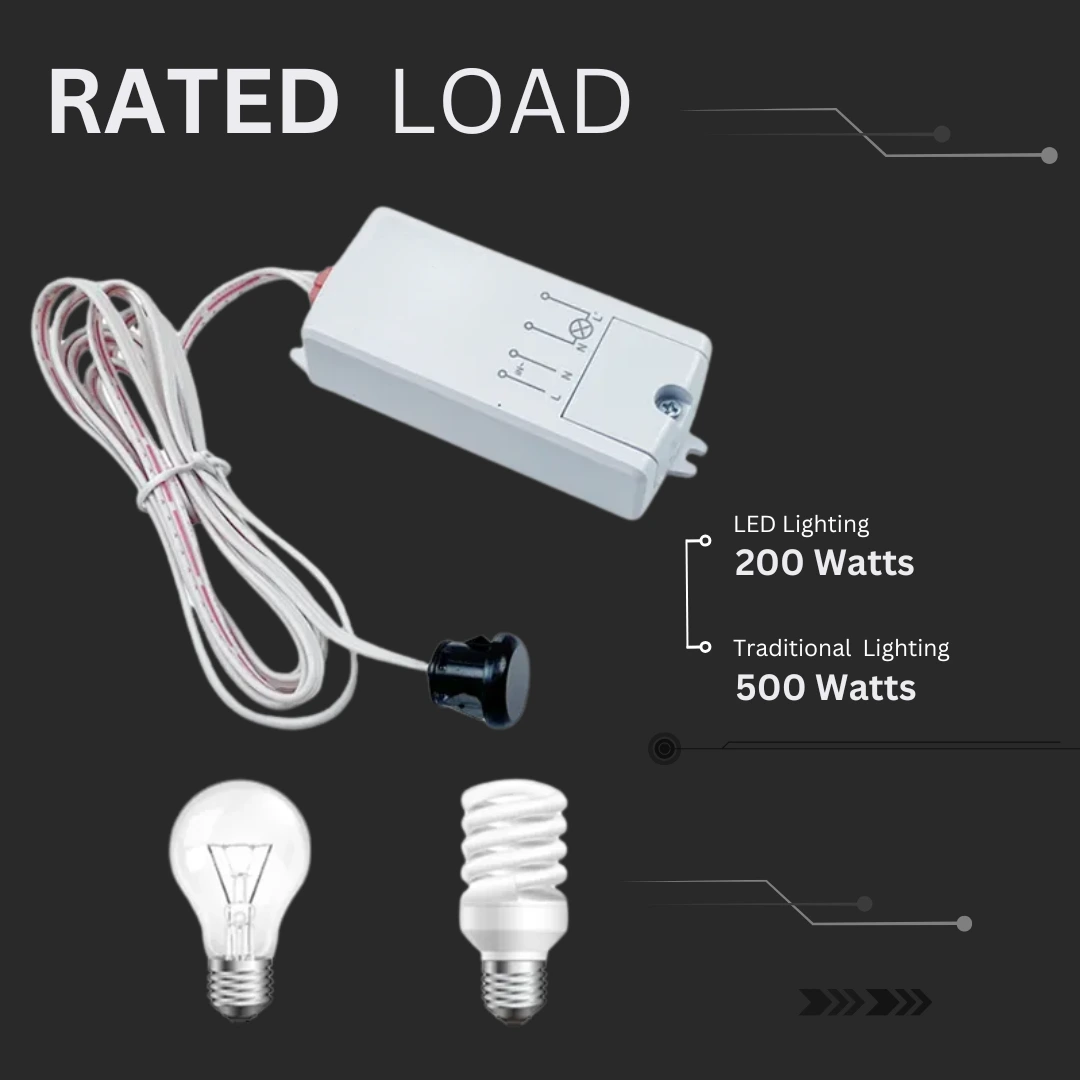

Rated Load200W (LED Load)
Rated Load-Current5 Amp
Stand-by Current8mA

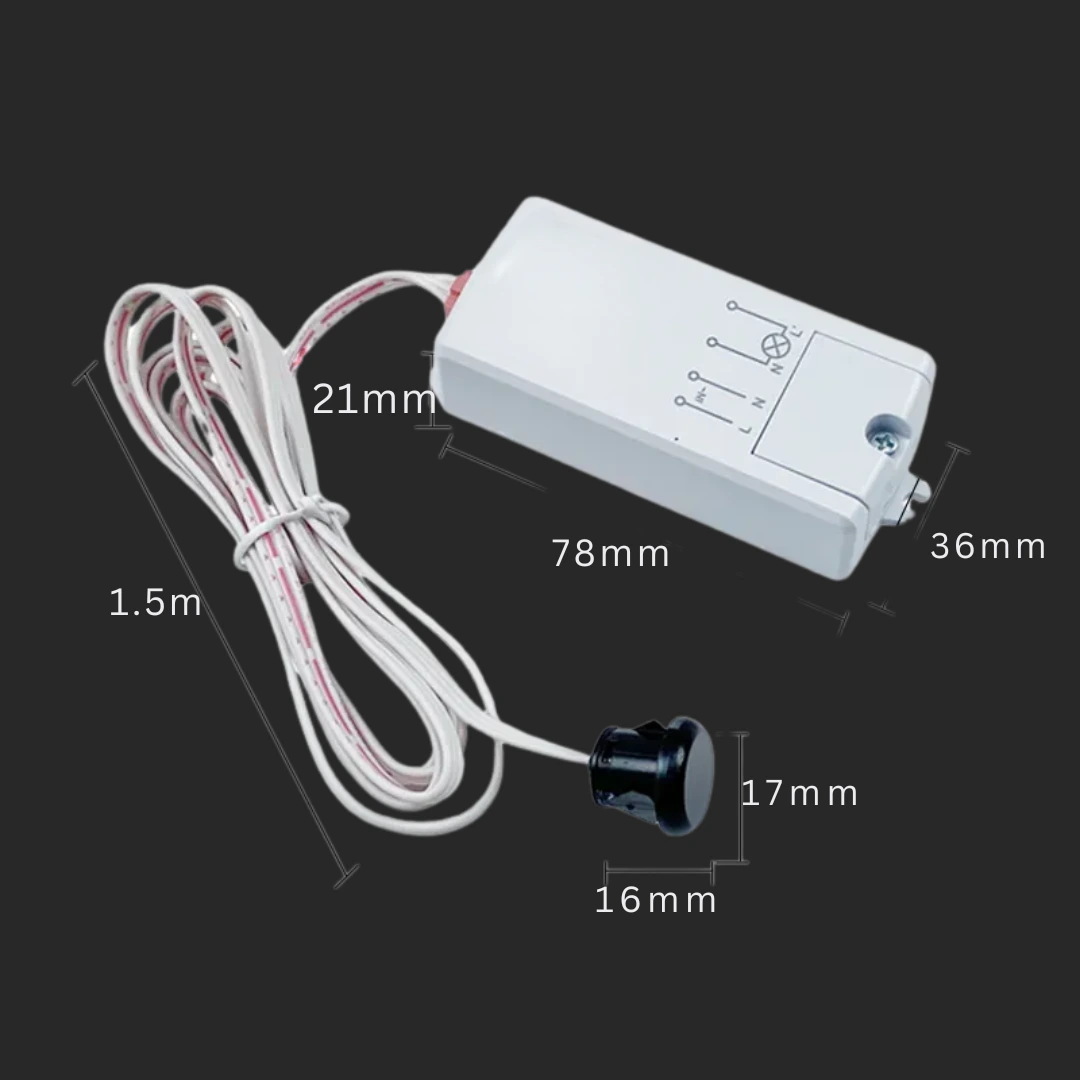

Sensor Head Wire Length1 metre
Operating ModeDoor Sensing Mode
Installation MethodConcealed / Surface Mount
Working Temperature–20°C to +40°C
Working Humidity<93% RH

Key Functional Modes

Door Open Detection

Activates load when door opens beyond 5cm

  • Triggers lights or cooling systems
  • Instant activation for user convenience
  • Helps energy efficiency by auto control
Door Close Detection

Deactivates load when door closes within 5cm

  • Turns off lights or systems
  • Minimises power wastage
  • Maintains clean aesthetics without switches
Ambient Light Independence

Works in varying light conditions

  • Day/night operation as per door status
  • Reliable infrared detection
  • Eliminates false triggers

Installation Guide

  • Power Off: Disconnect power before installation for safety.
  • Mount Sensor: Install the sensor on the cabinet wall using provided screws.
  • Wire Connection: Connect the sensor to the power supply and load as per wiring diagram.
  • Silver Label Adjustment: For better sensitivity, place the provided silver label facing the sensor on the door.
  • Power On & Test: Switch on power and verify sensor operation with door movements.

Troubleshooting & FAQs

1
The sensor does not detect door opening.
Ensure the silver label is correctly placed and the door moves beyond 5cm from the sensor.
2
Lights stay on continuously.
Check if the door is fully closed and sensor alignment is correct.
3
Can I install it in a humid environment?
Ensure humidity stays below 93% RH and avoid direct water exposure.
4
Sensor response is delayed.
Verify power supply and check for obstructions in the IR path.
5
Is it suitable for concealed installation?
Yes, AU-X123 supports both concealed and surface mount installations.
