Premium Automation Motor
Smart, Energy Saving Detection for your spaces

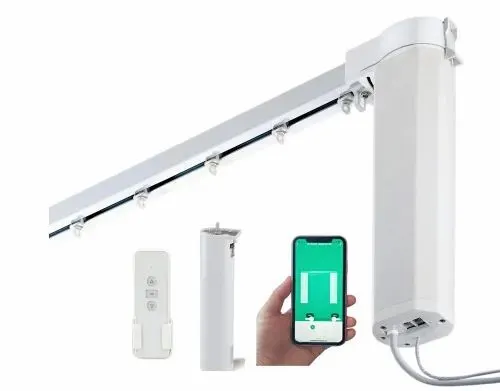

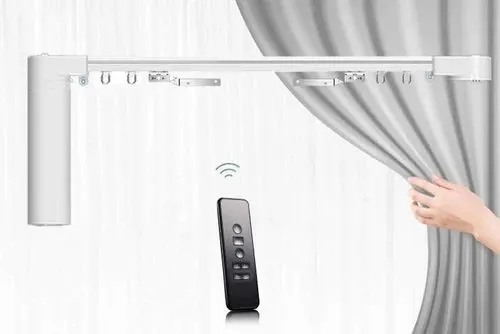

Premium Automation Motor
The Premium Automation Motor delivers high-performance operation with a 90Kg load capacity at 100 RPM speed. Operating at 100-240V AC (50/60Hz), this 65W motor combines built-in automation with 433.92MHz RF remote control for flexible operation.
Featuring ultra-quiet 35dB performance and 1.5Nm torque, the motor includes convenient one-touch functionality and fast assembly. Its IP20 rating makes it suitable for indoor residential and commercial applications requiring silent, heavy-duty automation.
Heavy-Duty Capacity
90Kg maximum load support at 100 RPM.
Dual Control System
Integrated automation and RF remote (433.92MHz).
Silent Performance
35dB noise level for discreet performance.
Technical Specifications
| Operating Voltage | 100-240V/AC | 50/60Hz |
|---|---|
| Rated Power | 65W |
| Frequency | 433.92 MHz |
| Rated Speed | 100 RPM |
| Rated Torque | 1.5Nm |
| IP Rating | IP20 |
| Max. Load | 90Kg |
| Noise Level | 35 dB |
| Control | Automation & RF Remote |
Key Functional Modes
Automation Mode
Seamless integration with smart control systems.
- Built-in automation protocol
- Scheduled operation
- Remote monitoring capability
High-Capacity Operation
90Kg load handling at consistent speed.
- 100 RPM maintained under load
- 1.5Nm torque output
- Commercial-grade performance
One-Touch Control
Instant operation with single command.
- Quick activation
- Manual override capability
- User-friendly interface
Installation Guide
- Power Off: Disconnect mains power before installation.
- Load Verification: Confirm ≤90Kg load capacity.
- Mounting: Utilize fast-assembly brackets.
- Wiring: Connect to 100-240V AC power source.
- Control Setup: Pair with RF remote and automation hub.
- Testing: Verify one-touch function and load handling.
