Eco Automation Motor
Smart, Energy Saving Detection for your spaces
Eco Automation Motor

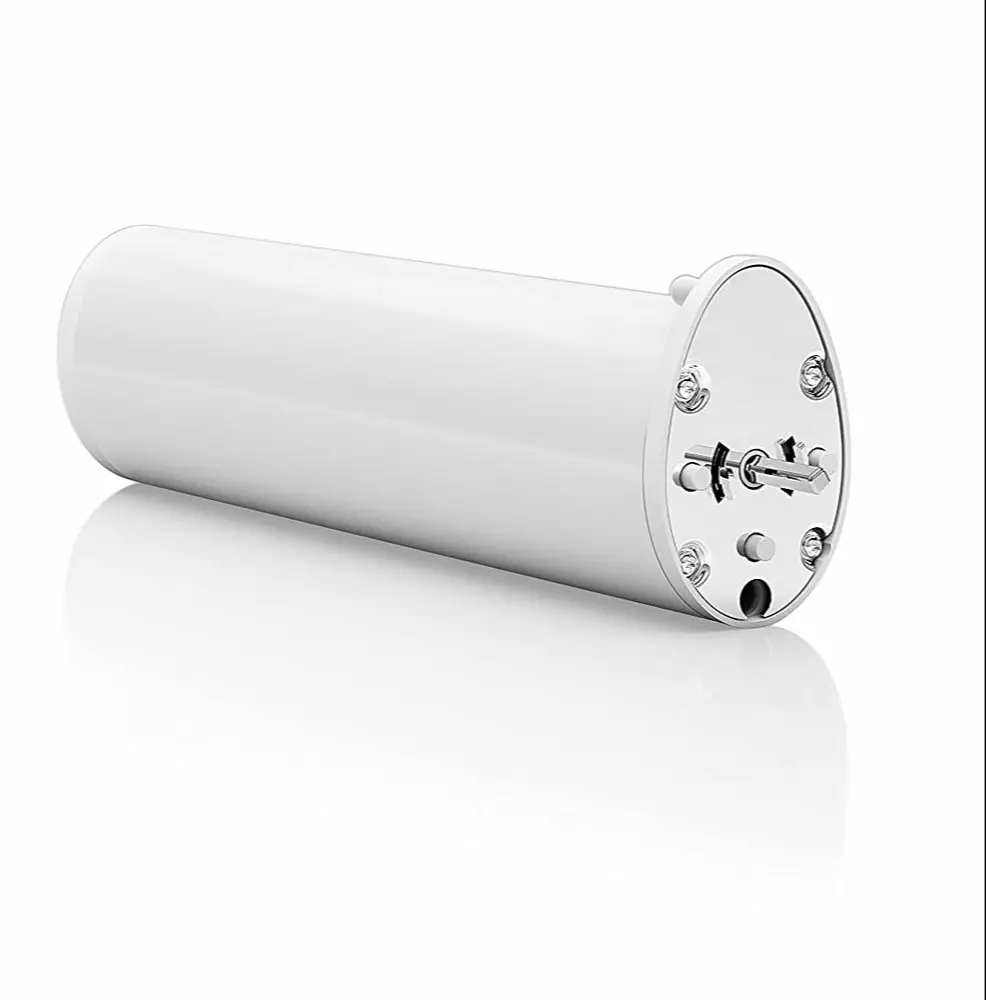

The Eco Automation Motor operates at 100-240V AC with a rated power of 48W and variable speed of 70-120 RPM. Designed for efficiency, it combines built-in automation with RF remote control in a compact, lightweight package.
With a remarkable 40Kg load capacity at just 2Nm torque, this IP20-rated motor features smooth, silent operation. Its one-touch functionality and fast assembly make it ideal for both residential and light commercial applications.
High Load Capacity
Supports up to 40Kg at 2Nm torque.
Dual Control
Built-in automation and RF remote operation.
Silent Operation
Smooth motor performance with minimal noise.
Technical Specifications
| Operating Voltage | 100-240V/AC | 50/60Hz |
|---|---|
| Rated Power | 48W |
| Frequency | 433.92 MHz |
| Rated Speed | 70-120 RPM |
| Rated Torque | 2Nm |
| IP Rating | IP20 |
| Max. Load | 40Kg |
| Control | Automation & RF Remote |
Key Functional Modes
Automation Mode
Seamless integration with smart control systems.
- Built-in automation protocol
- Scheduled operation
- Remote monitoring
RF Remote Control
Wireless operation at 433.92MHz.
- Manual override capability
- One-touch operation
- 40m+ range
Silent Operation
Optimized for noise reduction.
- Smooth motor performance
- Vibration damping
- Residential-friendly
Installation Guide
- Power Off: Disconnect mains power before installation.
- Load Verification: Confirm ≤40Kg load capacity.
- Mounting: Use included brackets for fast assembly.
- Wiring: Connect to 100-240V AC power source.
- Remote Pairing: Sync RF remote at 433.92MHz.
- Automation Setup: Configure via compatible hub.
