AU-X4CZ
Smart, Energy Saving Detection for your spaces

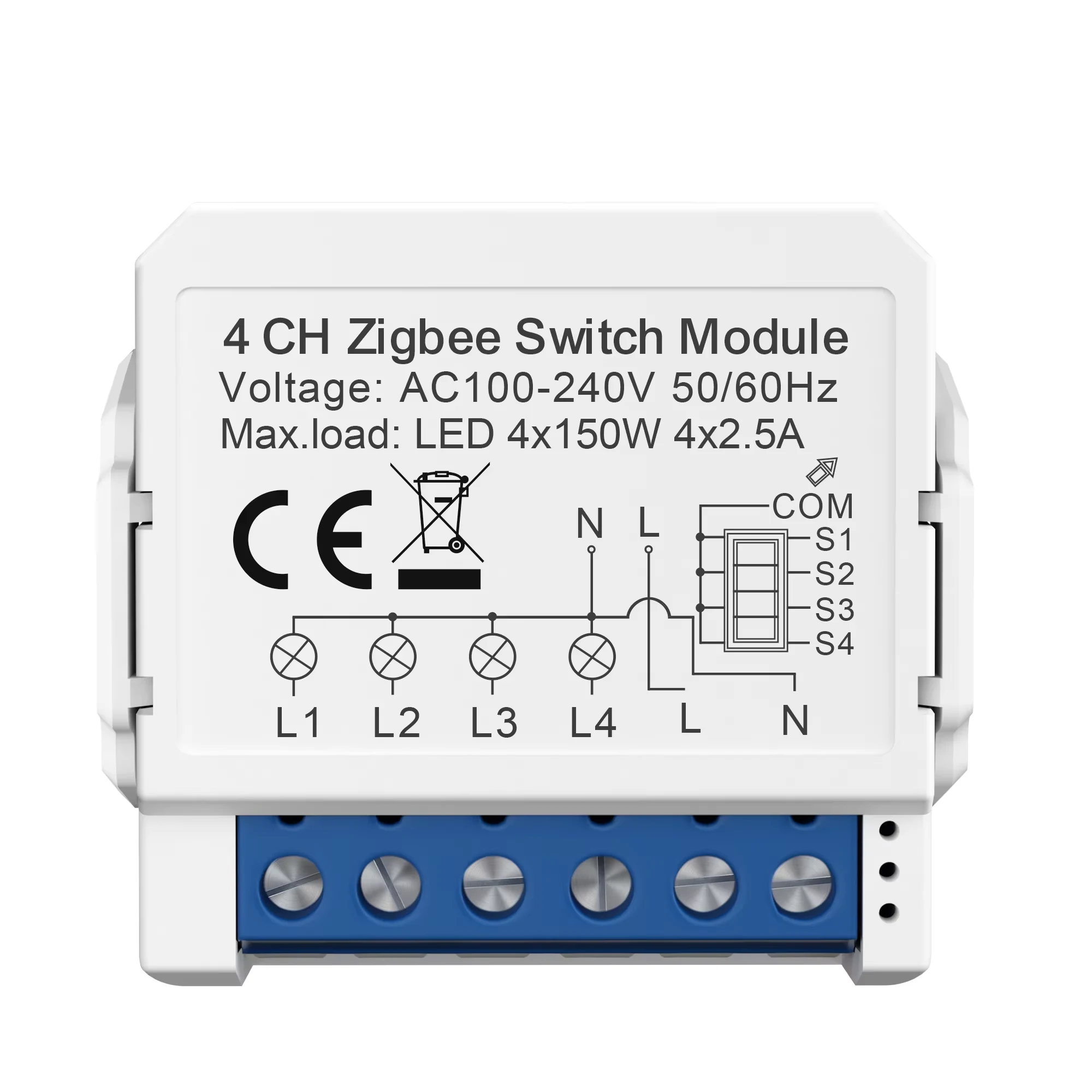

AU-X4CZ
The AU-X4CZ Four Channel Controller delivers advanced multi-device control with a 150W total capacity across four independent channels. Featuring Zigbee 3.0 connectivity, it seamlessly integrates with modern smart home systems while fitting standard installation boxes.
This versatile controller offers comprehensive automation features including scheduling, timers, and scene creation, all in a compact IP20-rated housing suitable for indoor environments (-10°C to +40°C).
Quad-Channel Control
Manage four devices simultaneously with independent channel settings
Zigbee 3.0 Connectivity
Reliable connectivity within smart home networks
Universal Installation
Compatible with 98% of standard electrical boxes
Technical Specifications
| Model | AU-X4CZ |
|---|---|
| Input Voltage | 100-240V AC | 50/60Hz |
| Output Current | Max. 2.5Amp |
| Output Power | Max. 150Watt |
| Operation Temp. | -10°C to +40°C |
| Network Protocol | Zigbee 3.0 |
| IP Rating | IP20 |
| Box Compatibility | Fits 98% installation boxes |
Key Functional Modes
Multi-Device Management
Control four devices with independent configurations- Per-channel power monitoring
- Individual scheduling
- 150W total power limit
Advanced Automation
Create sophisticated control routines- Time-based triggers
- Device grouping
- Energy usage tracking
Scene Configuration
Save and activate custom device presets- Multi-device scene creation
- Voice assistant compatible
- Remote access capability
Installation Guide
- Power Safety: Disconnect mains power before installation
- Box Requirements: Standard 86×86mm backbox recommended
- Electrical Connection: Wire to 100-240V AC supply

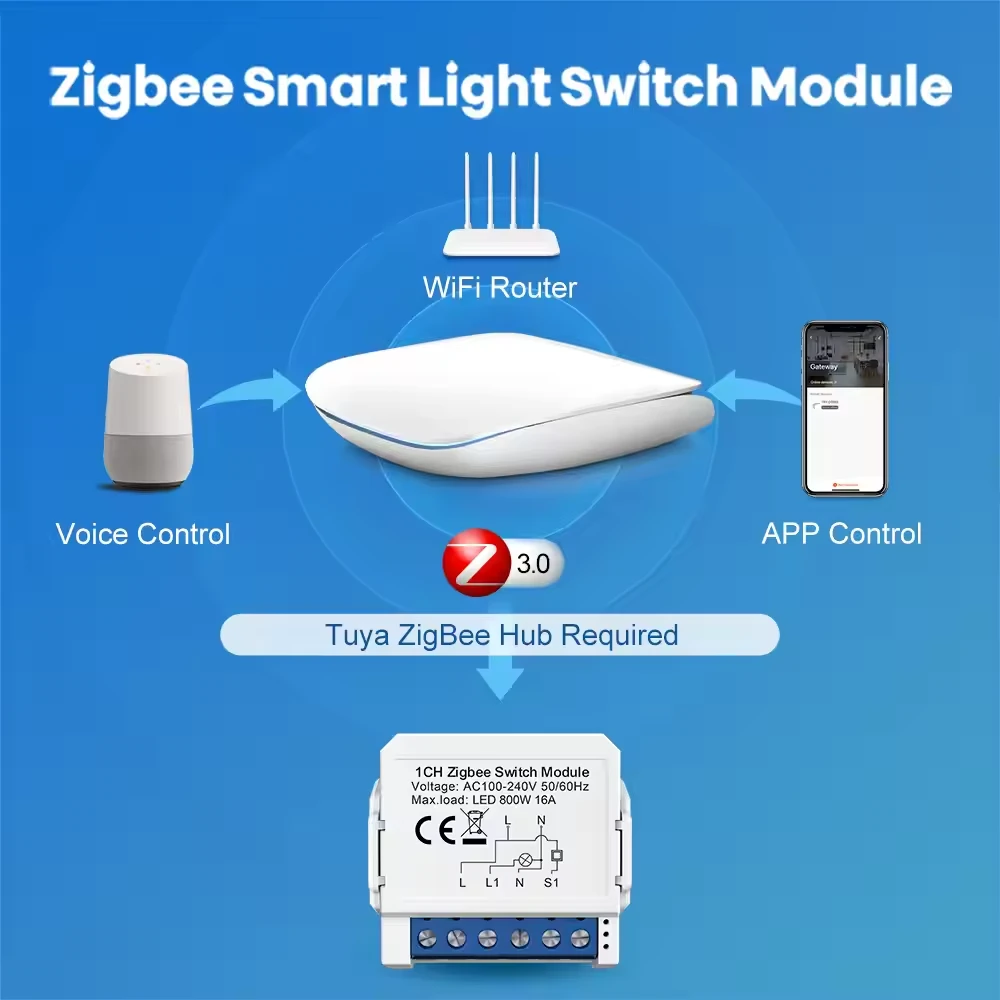

- Network Setup: Pair with Zigbee 3.0 gateway
- Load Calculation: Ensure total load ≤150W across all channels
- System Integration: Configure via manufacturer’s app
