AU-X3CZ
Smart, Energy Saving Detection for your spaces
AU-X3CZ

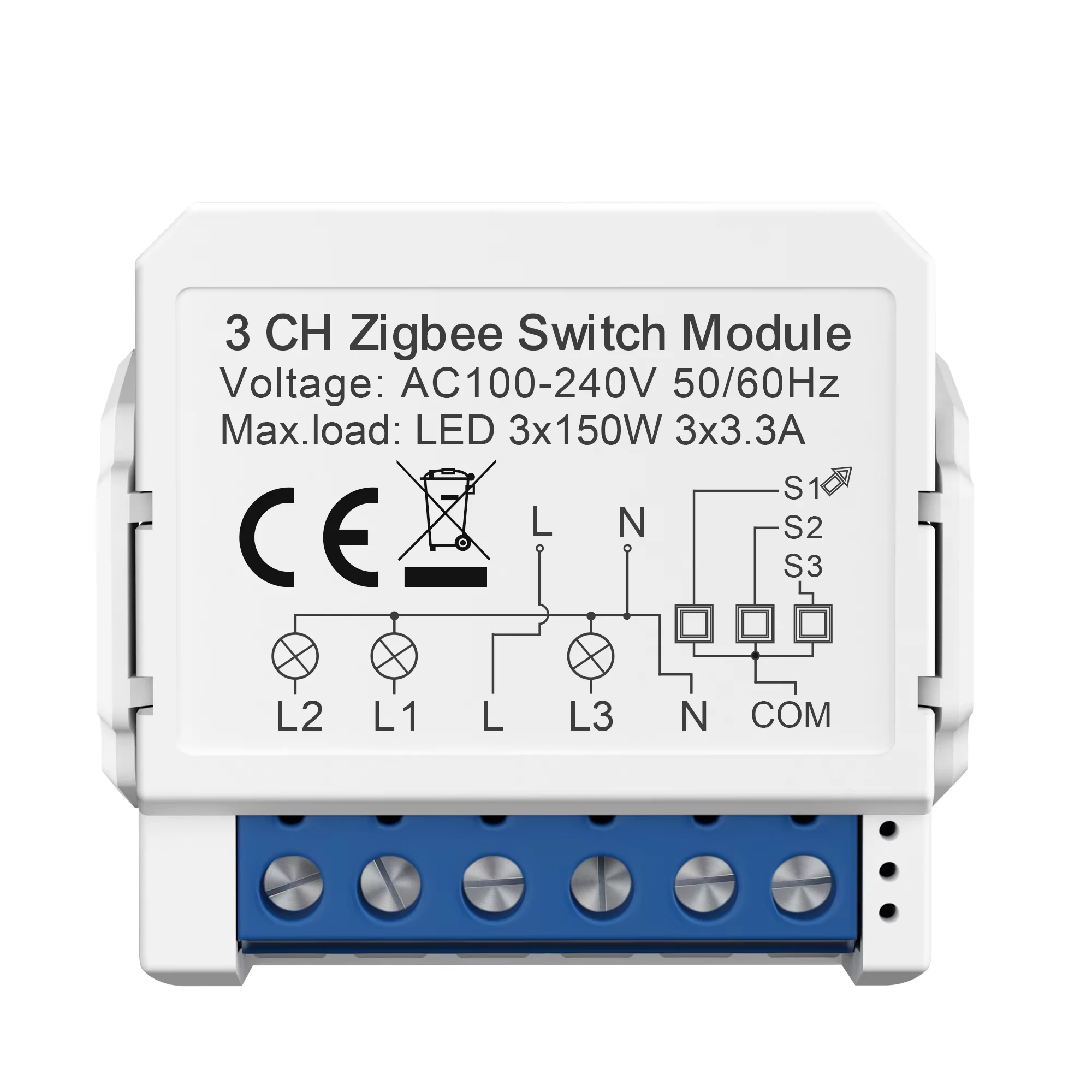

The AU-X3CZ Three Channel Controller provides centralized control for three devices with a combined 150W capacity. Utilizing Zigbee 3.0 technology, it delivers reliable smart home integration with robust automation capabilities.
Featuring scheduling, timers, and scene creation in a compact form factor, this controller fits standard installation boxes while operating reliably between -10°C to 40°C.
Triple-Channel Control
Manage three devices independently from one unit

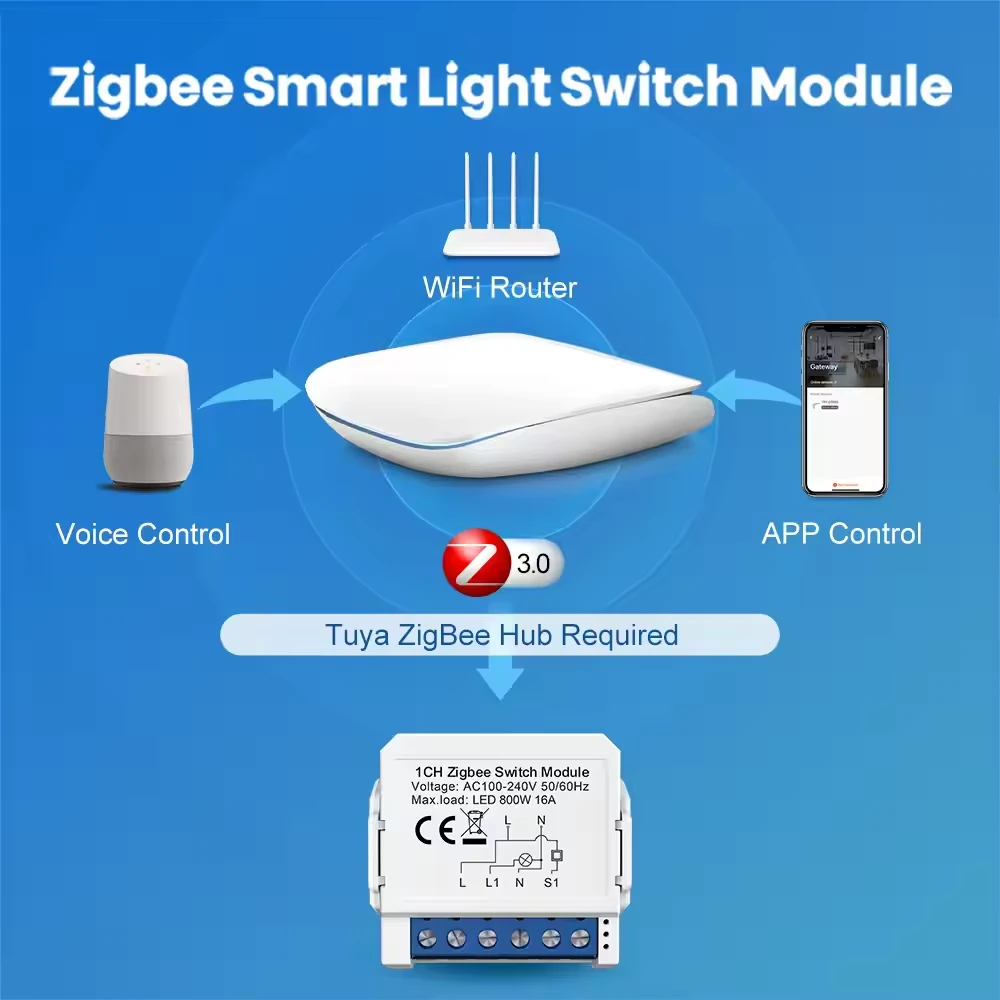

Zigbee 3.0 Connectivity
Enhanced stability in smart home ecosystems

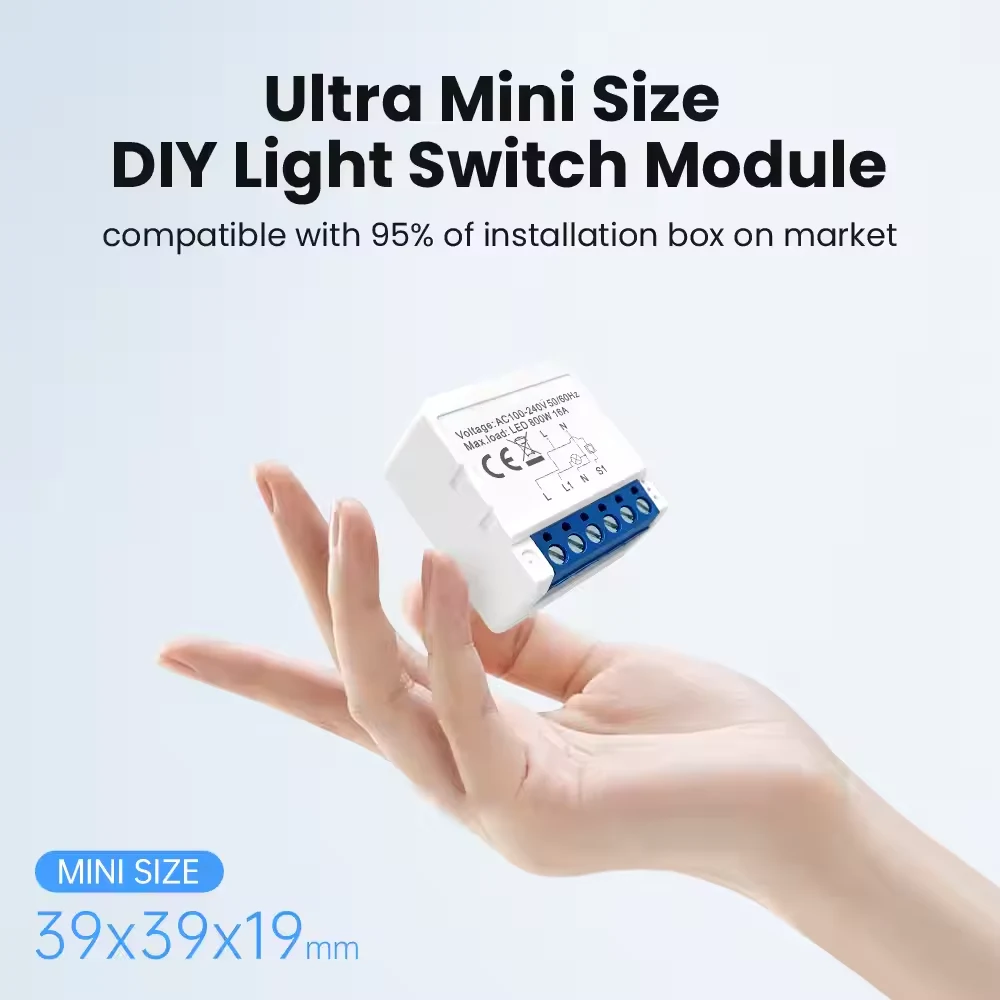

Universal Compatibility
Fits 98% of standard installation boxes
Technical Specifications
| Model | AU-X3CZ |
|---|---|
| Input Voltage | 100-240V AC | 50/60Hz |
| Output Current | Max. 3.3Amp |
| Output Power | Max. 150Watt |
| Operation Temp. | -10°C to +40°C |
| Network Protocol | Zigbee 3.0 |
| IP Rating | IP20 |
| Box Compatibility | Fits 98% installation boxes |
Key Functional Modes
Multi-Device Control
Independent management of three connected devices- Per-channel configuration
- Combined 150W power limit
- Individual scheduling
Smart Automation
Advanced automation capabilities- Custom time schedules
- Sunrise/sunset triggers
- Energy monitoring
Scene Mode
Create and activate device presets- Multi-device scene creation
- Voice control compatible
- Remote access enabled

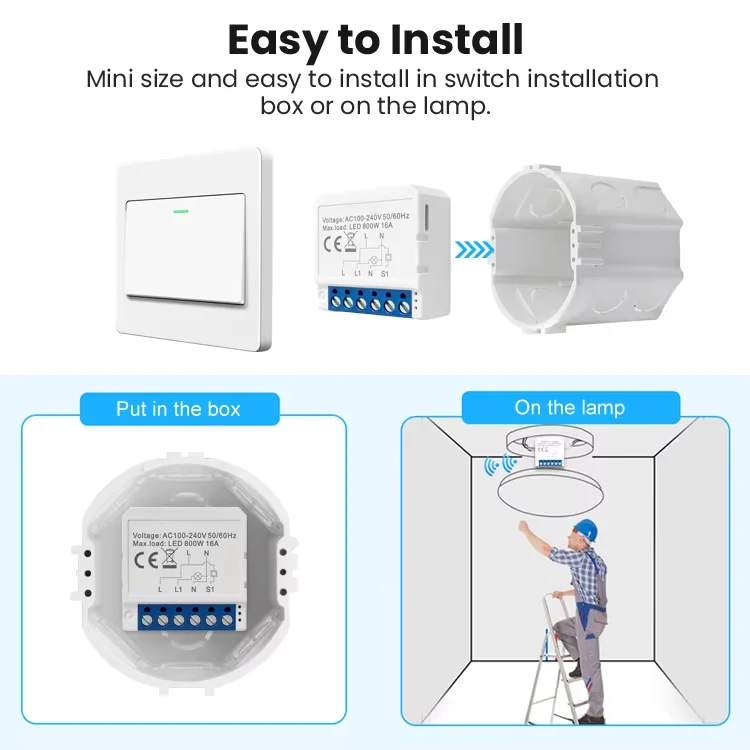

Installation Guide
- Safety First: Turn off power at breaker
- Box Preparation: Standard 86×86mm backbox compatible
- Wiring: Connect to 100-240V AC supply
- Network Pairing: Connect via Zigbee 3.0 gateway
- Load Management: Ensure total load ≤150W across all channels
- App Configuration: Set up via manufacturer’s application
