AU-X3CW
Smart, Energy Saving Detection for your spaces

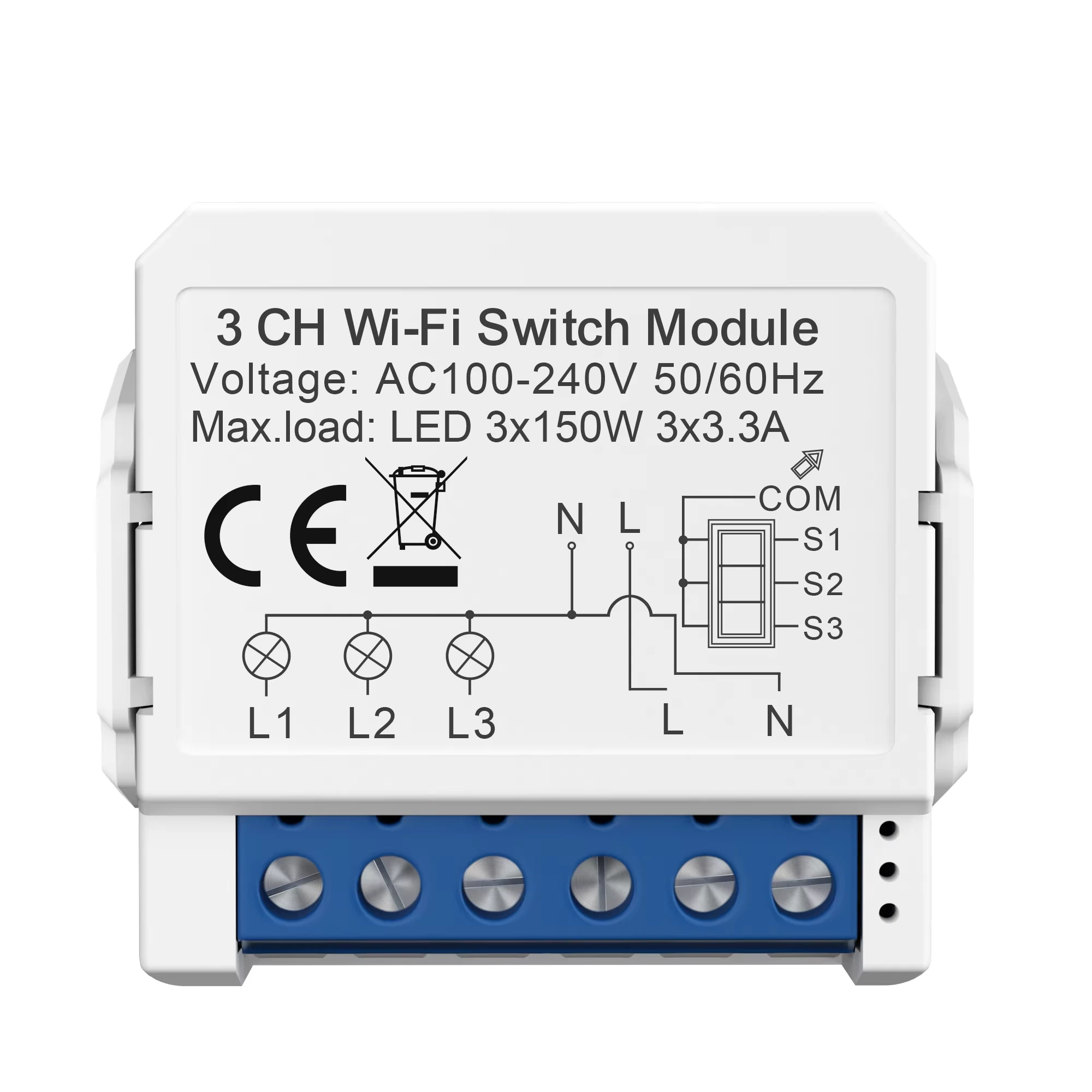

AU-X3CW
The AU-X3CW Three Channel Controller offers advanced control for smart systems, supporting a maximum output of 150W across three channels. Operating on a 2.4GHz Wi-Fi network, it ensures seamless integration into modern smart environments.
With features like scheduling, timer functions, and scene creation, this controller provides flexible automation for home or office use. Its compact design and IP20 rating make it ideal for indoor installations, while its <100m operation range guarantees reliable performance.
Three-Channel Control
Manage up to three devices independently with a single controller.
Smart Scheduling
Automate device operations with custom schedules for effortless management.
Scene Creation
Design and activate custom scenes for coordinated multi-device control.
Technical Specifications
| Model | AU-X3CW |
|---|---|
| Input Voltage | 100-240 V/AC | 50/60Hz |
| Output Current | Max. 3.3Amp |
| Output Power | Max. 150Watt |
| Operation Temp. | 10°C to +40°C |
| Network Protocol | Wi-Fi 2.4GHz |
| IP Rated | IP20 |
Key Functional Modes
Scheduling Mode
Automate device operations at predefined times.- Set daily or weekly schedules
- Supports multiple time slots
- Energy-efficient automation
Timer Mode
Control devices with countdown timers for temporary activation.- Adjustable timer duration
- One-touch activation
- Auto-shutdown after timer ends
Scene Mode
Create and trigger custom scenes for multi-device control.- Save multiple scene presets
- Activate with a single command
- Ideal for lighting or appliance groups

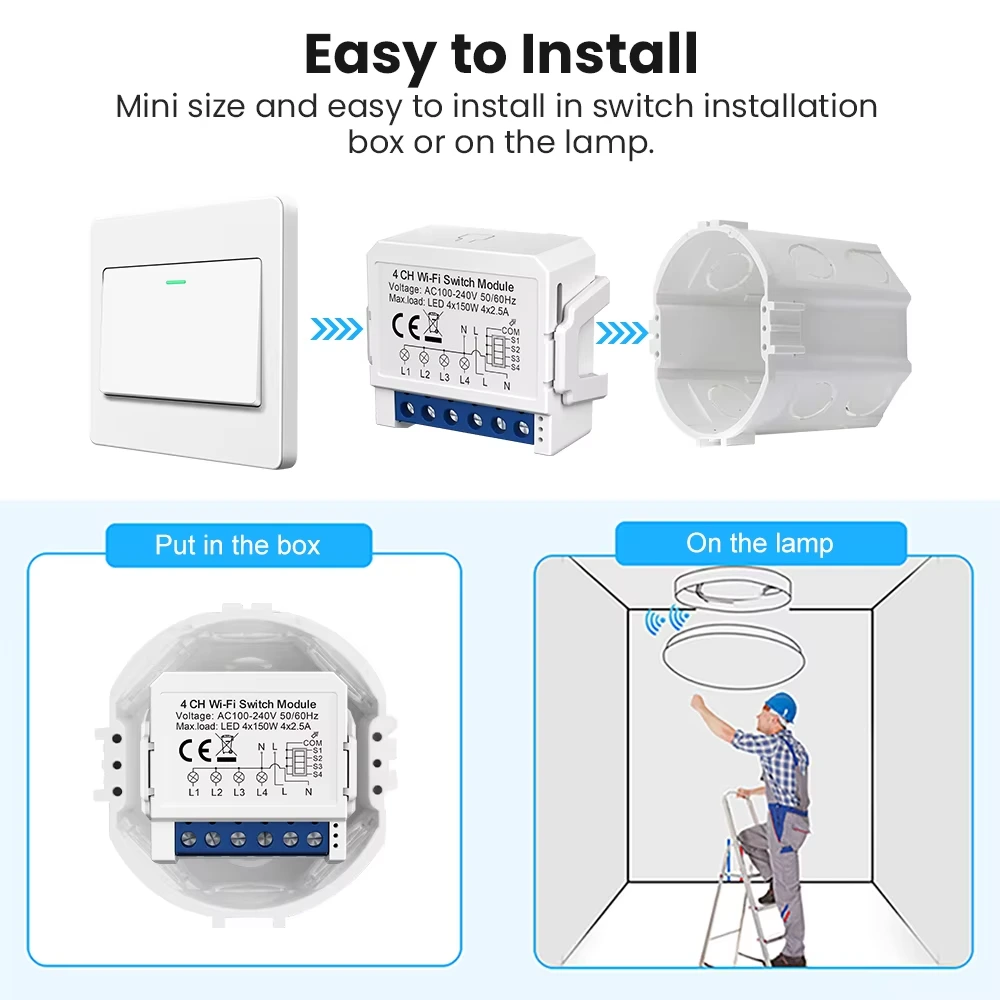

Installation Guide
- Power Down: Switch off the main electrical supply before setup.
- Mounting: Secure the controller in a dry, indoor location.
- Power Connection: Connect to a 100-240 V/AC power source.
- Network Setup: Configure Wi-Fi 2.4GHz via the companion app.
- Device Binding: Pair compatible devices using the app for unified control.
