AU-X2CDZ
Smart, Energy Saving Detection for your spaces
AU-X2CDZ

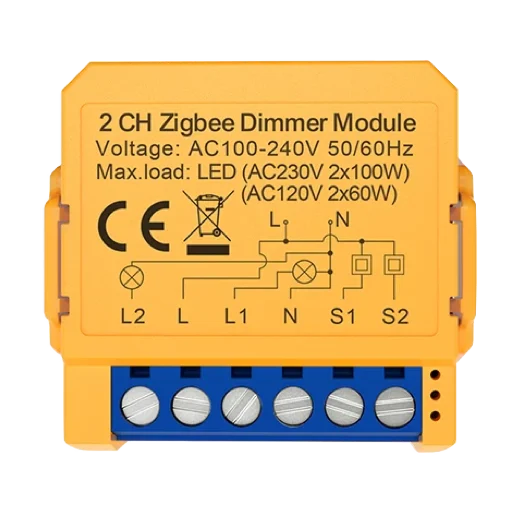

The AU-X2CDZ is a dual channel Zigbee dimmer module measuring 39x39x19.4mm (WxDxH). It supports 2x100W at 230V (2x60W at 120V) across two independent channels using Zigbee IEEE 802.11b/g/n protocol (2.412GHz-2.484GHz).
This IP20-rated module operates in temperatures from -10°C to +40°C with a 100m range. Its compact 1.54" square design makes it suitable for space-constrained installations.
Dual Channel Control
Independent dimming for two circuits (2x100W at 230V).
Compact Design
Space-saving 39x39x19.4mm (1.54×1.54×0.76in) dimensions.
Zigbee Connectivity
Reliable wireless control via IEEE 802.11b/g/n.
Technical Specifications
| Model | AU-X2CDZ |
|---|---|
| Product Type | 2-Gang Zigbee Dimmer Module |
| Voltage | AC100-240V 50/60Hz |
| Max. Load | 2x100W (230V) / 2x60W (120V) |
| Dimensions | 39x39x19.4mm (WxDxH) |
| Protocol | Zigbee IEEE 802.11b/g/n |
| Frequency | 2.412GHz-2.484GHz |
| Operation Temp. | -10°C to +40°C |
| IP Rating | IP20 |
Key Functional Modes
Dual Channel Dimming
Independent control of two lighting circuits.
- 100W max per channel (230V)
- Separate dimming curves
- Channel-specific scheduling
Compact Installation
Space-efficient module for constrained spaces.
- 39x39x19.4mm dimensions
- 1/2 gang compatible
- Minimal wiring space required
Zigbee Automation
Wireless control via Zigbee protocol.
- IEEE 802.11b/g/n standard
- 100m operation range
- Scene creation support
Installation Guide
- Power Down: Disconnect mains power before installation.
- Size Verification: Confirm 39x39x19.4mm module fits your enclosure.
- Wiring: Connect L, L1, N, S1 terminals as per diagram.
- Load Check: Ensure ≤100W per channel (230V).
- Network Pairing: Connect to Zigbee hub within 100m range.
- Testing: Verify independent channel operation post-installation.
