AU-X2CDW
Smart, Energy Saving Detection for your spaces
AU-X2CDW

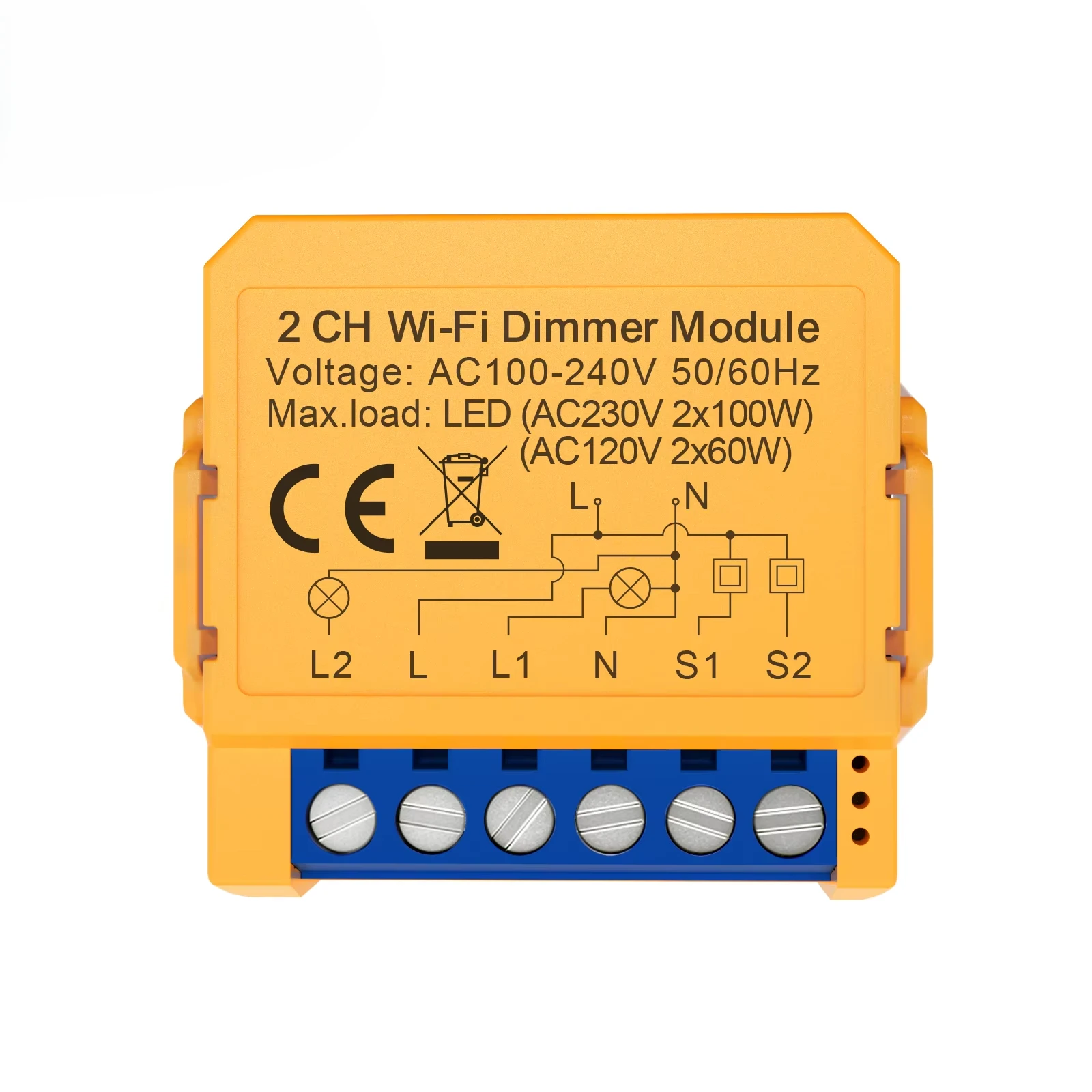

The AU-X2CDW Dual Channel Dimmer provides independent dimming control for two lighting circuits up to 100W each. Operating on 2.4GHz Wi-Fi (IEEE802.11b/g/n), it enables wireless lighting automation within a 100m range.
This IP20-rated dimmer features scheduling capabilities and scene creation across both channels. Its compact design suits residential installations, operating reliably between -10°C to +40°C.
Dual Channel Control
Independent dimming for two lighting circuits.
Smooth Dimming
Flicker-free dimming performance on both channels.
Scene Creation
Save and activate custom lighting presets for both channels.
Technical Specifications
| Model | AU-X2CDW |
|---|---|
| Input Voltage | 100-240 V/AC | 50/60Hz |
| Output Load | Max. 100Watt per channel |
| Operation Frequency | 2.412GHz – 2.484GHz |
| Network Protocol | Wi-Fi 2.4GHz |
| Operation Temp. | -10°C to +40°C |
| IP Rated | IP20 |
Key Functional Modes
Dual Dimming Control
Independent dimming management for two lighting circuits.
- Separate channel configuration
- 100W max per channel
- Individual brightness adjustment
Scheduled Dimming
Automated dimming schedules for both channels.
- Time-based dimming programs
- Channel-specific scheduling
- Energy-saving automation
Multi-Channel Scenes
Create combined lighting presets across both channels.
- Unified scene control
- Channel balancing presets
- One-touch scene activation

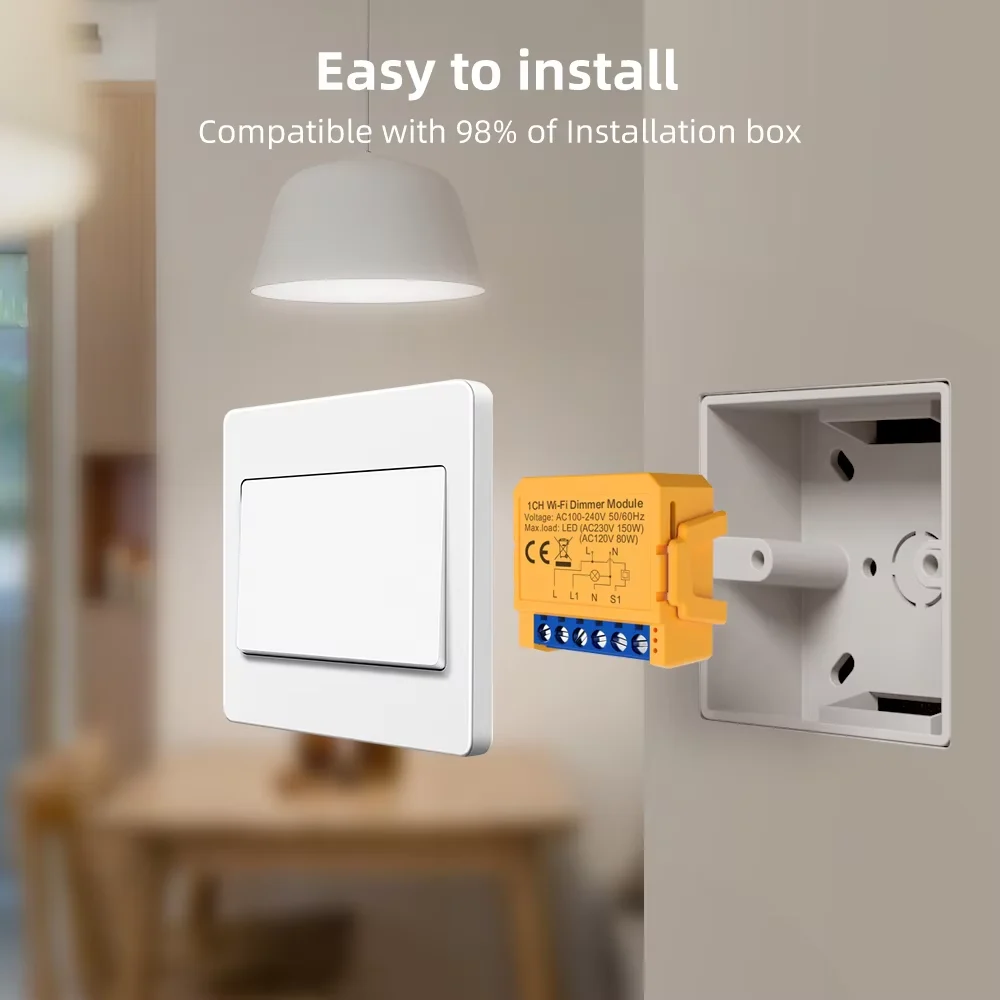

Installation Guide
- Power Down: Switch off the main electrical supply before setup.
- Load Verification: Ensure connected lights are dimmable and ≤100W per channel.
- Power Connection: Connect to a 100-240 V/AC power line.
- Network Setup: Configure Wi-Fi 2.4GHz settings during installation.
- Channel Binding: Pair lights to each channel via manufacturer’s app.
- Dimming Calibration: Set minimum/maximum levels for each channel.
