AU-X1CDZ
Smart, Energy Saving Detection for your spaces
AU-X1CDZ

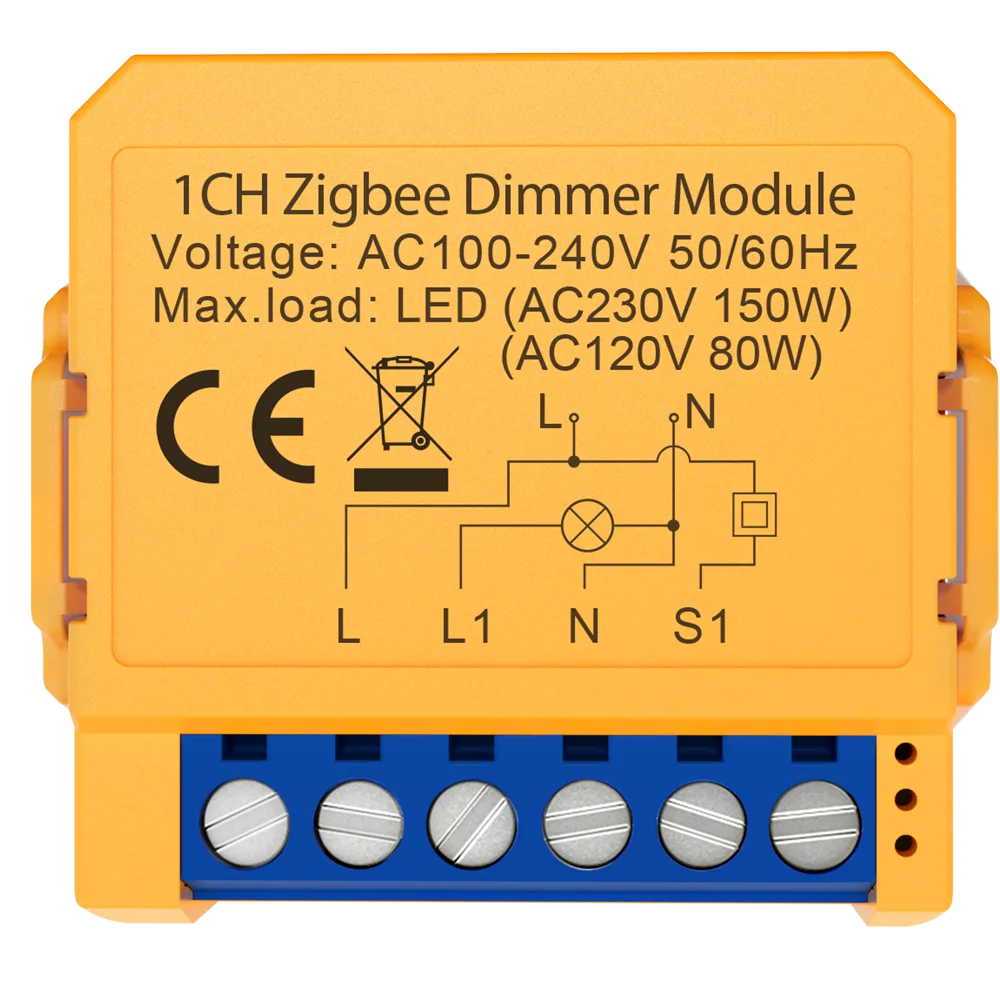

The AU-X1CDZ Single Channel Dimmer provides precise dimming control for compatible lighting up to 150W. Operating on Zigbee 3.0 (IEEE802.15.4) with a frequency range of 2.405GHz-2.480GHz, it enables wireless lighting automation within a 100m range.
This IP20-rated dimmer features scheduling capabilities and scene creation for custom lighting presets. Its compact design suits residential installations, operating reliably between -10°C to +40°C.
Smooth Dimming
Flicker-free dimming performance for compatible lights.
Dimming Schedule
Programmable lighting schedules for automated control.
Zigbee 3.0 Connectivity
Reliable wireless control via IEEE802.15.4 protocol.
Technical Specifications
| Model | AU-X1CDZ |
|---|---|
| Input Voltage | 100-240 V/AC | 50/60Hz |
| Output Load | Max. 150Watt |
| Operation Frequency | 2.405GHz - 2.480GHz |
| Network Protocol | Zigbee 3.0 |
| Operation Temp. | -10°C to +40°C |
| IP Rated | IP20 |
Key Functional Modes
Precision Dimming
Smooth brightness adjustment for compatible lights.
- Flicker-free performance
- Customisable dimming curves
- Wide compatibility range
Scheduled Automation
Automated lighting control via time-based schedules.
- Multiple daily programs
- Sunrise/sunset triggers
- Energy-saving modes
Scene Configuration
Create and activate custom lighting presets.
- Multiple scene storage
- One-touch activation
- Voice control compatible
Installation Guide
- Power Down: Switch off the main electrical supply before setup.
- Load Verification: Ensure connected lights are dimmable and ≤150W.
- Power Connection: Connect to a 100-240 V/AC power line.
- Network Pairing: Connect to Zigbee 3.0 gateway during setup.
- Device Binding: Pair with compatible lights via manufacturer’s app.
- Dimming Calibration: Adjust minimum/maximum brightness levels.
