AU-X1CDW
Smart, Energy Saving Detection for your spaces

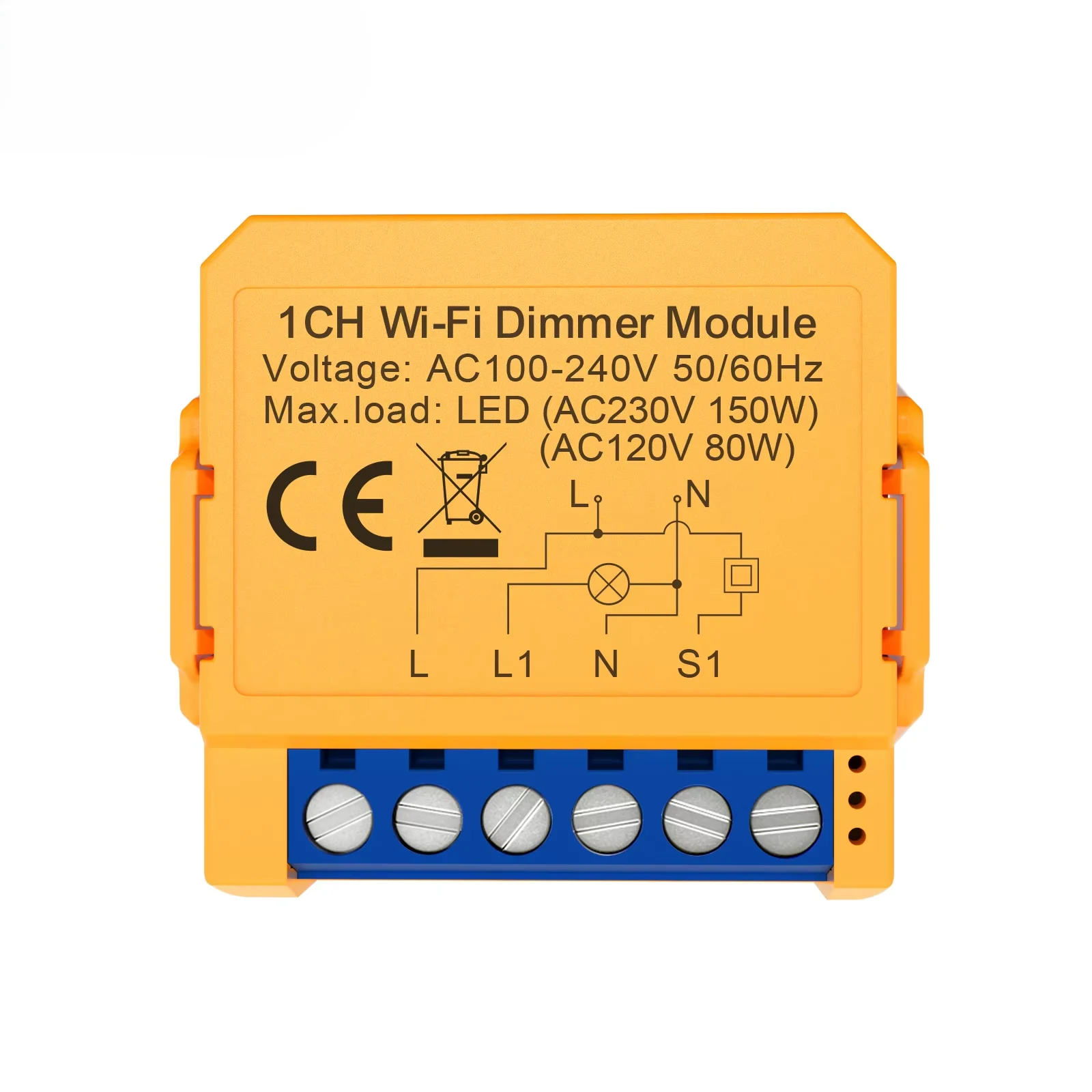

AU-X1CDW
The AU-X1CDW Single Channel Dimmer provides precise dimming control for compatible lighting up to 150W. Operating on 2.4GHz Wi-Fi (IEEE802.11b/g/n), it enables wireless lighting automation with a frequency range of 2.412GHz–2.484GHz.
This IP20-rated dimmer features scheduling capabilities and scene creation for custom lighting presets. Its compact design suits residential installations, operating reliably between -10°C to +40°C within a 100m network range.
Smooth Dimming
Flicker-free dimming performance for compatible lights.
Dimming Schedule
Programmable lighting schedules for automated control.
Scene Creation
Save and activate custom lighting presets.
Technical Specifications
| Model | AU-X1CDW |
|---|---|
| Input Voltage | 100-240 V/AC | 50/60Hz |
| Output Load | Max. 150Watt |
| Operation Frequency | 2.412GHz – 2.484GHz |
| Network Protocol | Wi-Fi 2.4GHz |
| Operation Temp. | -10°C to +40°C |
| IP Rated | IP20 |
Key Functional Modes
Dimming Schedule
Programmable lighting schedules for automated control.- Time-based dimming adjustments
- Multiple schedule slots
- Energy-saving automation

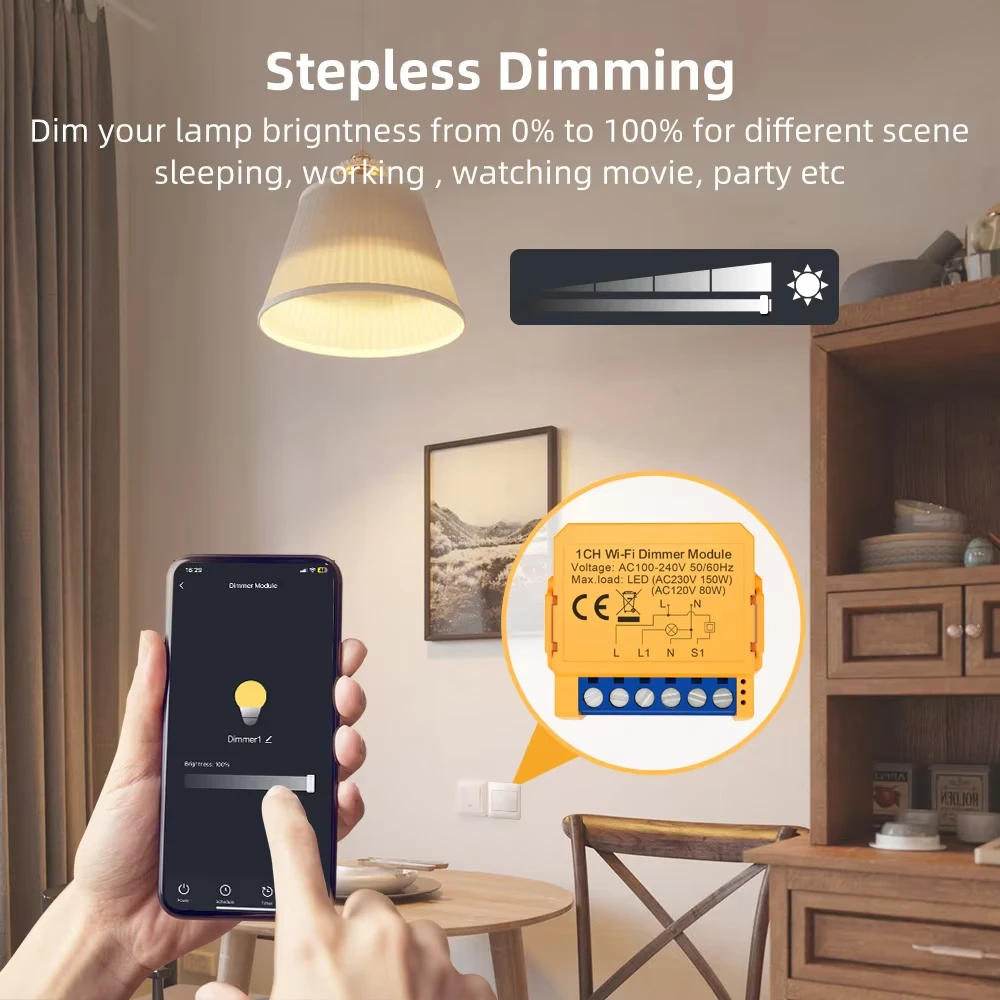

Smooth Dimming
Gradual brightness adjustment for compatible lights.- Flicker-free performance
- Customisable dimming curves
- Wide compatibility range
Scene Creation
Save and activate custom lighting presets.- Multiple scene storage
- One-touch activation
- Integration with automation

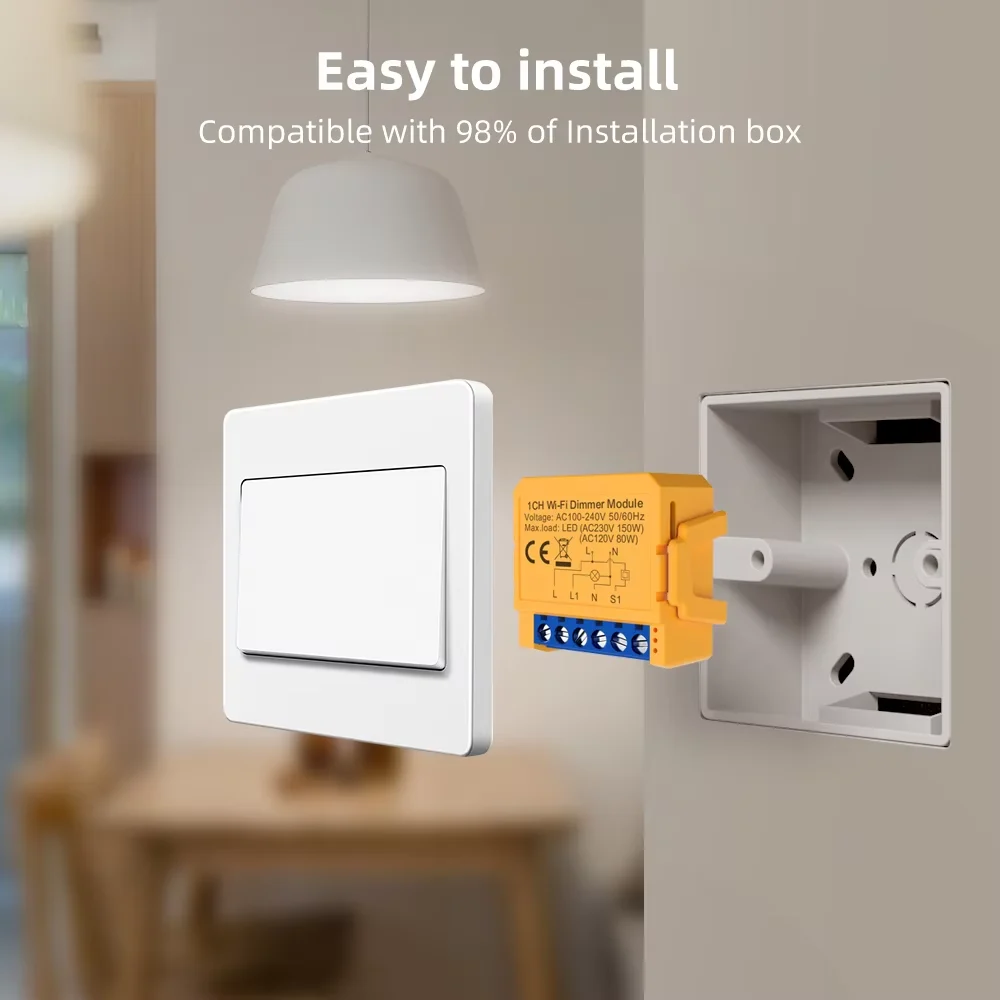

Installation Guide
- Power Down: Switch off the main electrical supply before setup.
- Load Verification: Ensure connected lights are dimmable and ≤150W.
- Power Connection: Connect the unit to a 100-240 V/AC power line.
- Network Setup: Configure Wi-Fi 2.4GHz settings during setup.
- Device Binding: Pair with compatible lights via manufacturer’s app.
- Dimming Calibration: Adjust minimum/maximum brightness levels as needed.
