AU-X019
Smart, Energy Saving Detection for your spaces
AU-X019

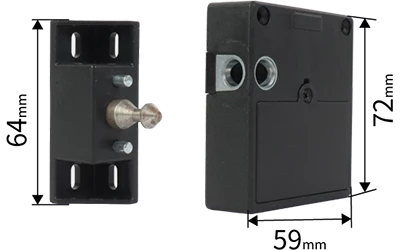

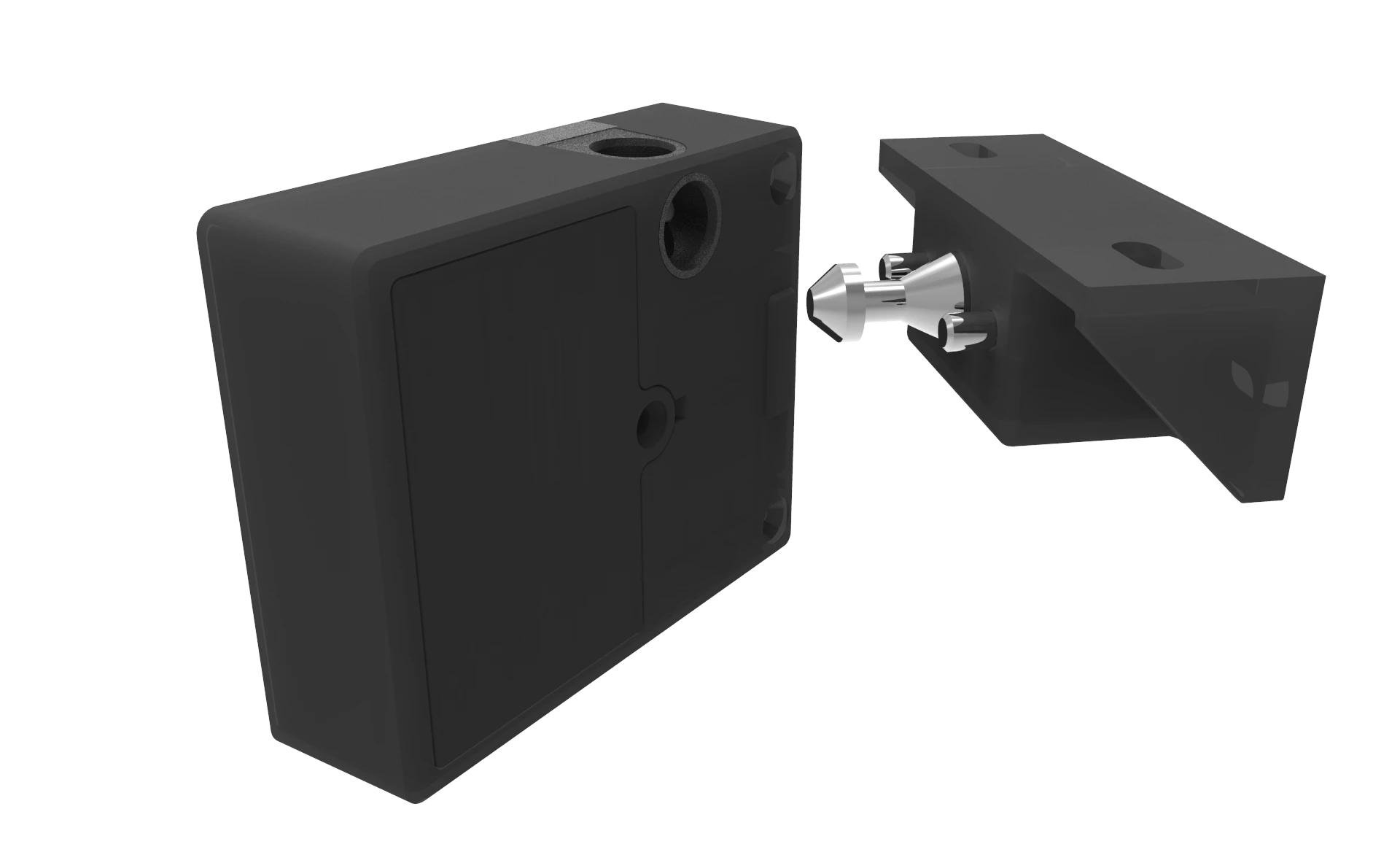

The AutronX AU-X019 RFID Cabinet Lock provides secure access control for drawers, cabinets, and sliding doors. Utilizing 13.56MHz Mifare-1 technology, it supports up to 15 RFID cards (1 master + 14 users) with a swift 5-second unlock time.
Operating on 3×AAA batteries (4.5V), this black ABS lock consumes <20μA in standby and features automatic/manual locking modes. Its compact design suits residential and commercial applications, functioning reliably between +10℃ to +70℃ temperatures.
Multi-Card Management
15-card capacity with master/user hierarchy
Energy Efficient
<20μA static current for long battery life
Versatile Mounting

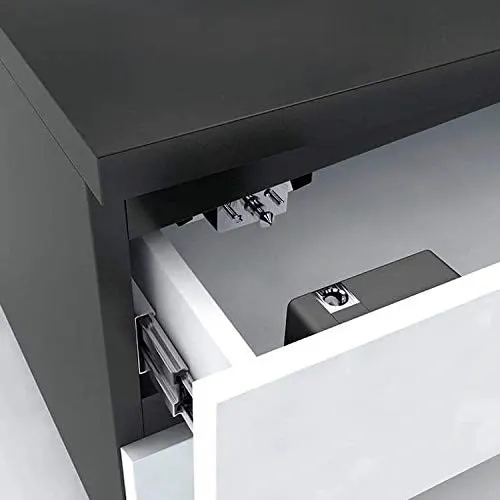

Ideal for drawers, wardrobes, and sliding doors
Technical Specifications
| Model | AU-X019 |
|---|---|
| Color | Black |
| RFID Technology | Mifare-1, 13.56MHz |
| Card Capacity | 15 (1 master + 14 users) |
| Power | 3×AAA alkaline (4.5V) |
| Current | <20μA (static), <220mA (dynamic) |
| Unlock Time | ≤5 seconds |
| Operating Temp. | +10℃ to +70℃ |
| Low Voltage Warning | 3.6V±0.2V |
Key Functional Modes
Master Card Mode
Administrative control for system management.- First card scanned becomes master
- Authorizes new user cards
- Factory reset capability
Auto-Locking Mode
Automatic securing after unlock.- Configurable auto-lock delay
- Manual override available
- Audible confirmation beeps
Low-Power Mode
Energy-efficient operation.- Visual/audible low battery alerts
- 3.7V cutoff threshold
- Extended battery life
Installation Guide
- Positioning: Mark mounting lines per template.
- Lock Body: Secure at desired height with screws.
- Battery Installation: Insert 3×AAA batteries.

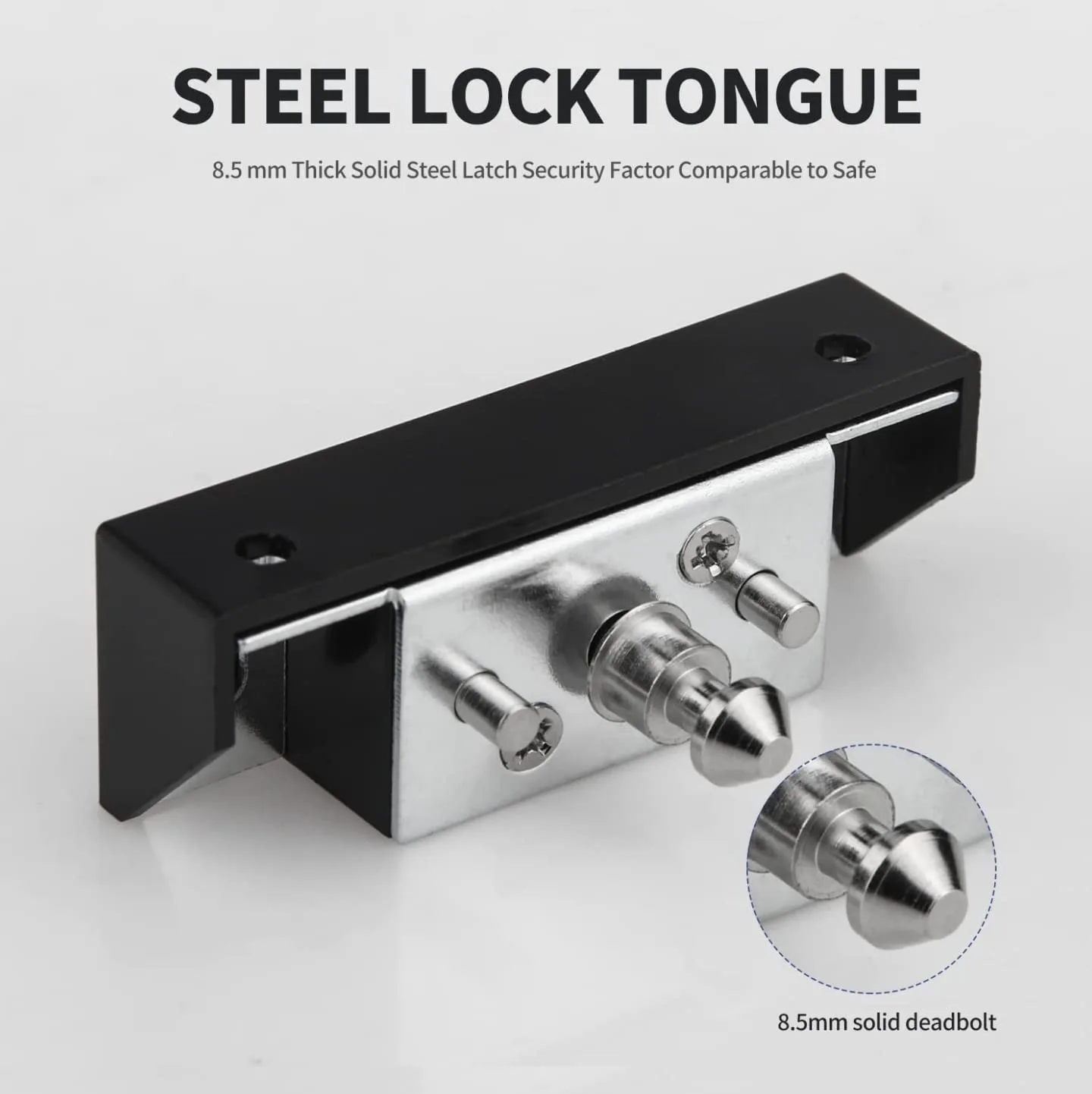

- Strike Plate: Align and fix to door/drawer frame.
- Testing: Verify card recognition and auto-lock function.
- Card Programming: Initialize master card first.
