AU-X SVDP71

Smart, Energy Saving Detection for your spaces

AU-X SVDP-7I_1
AU-X SVDP-7I_2
AU-X SVDP-7I_3

AU-X SVDP71

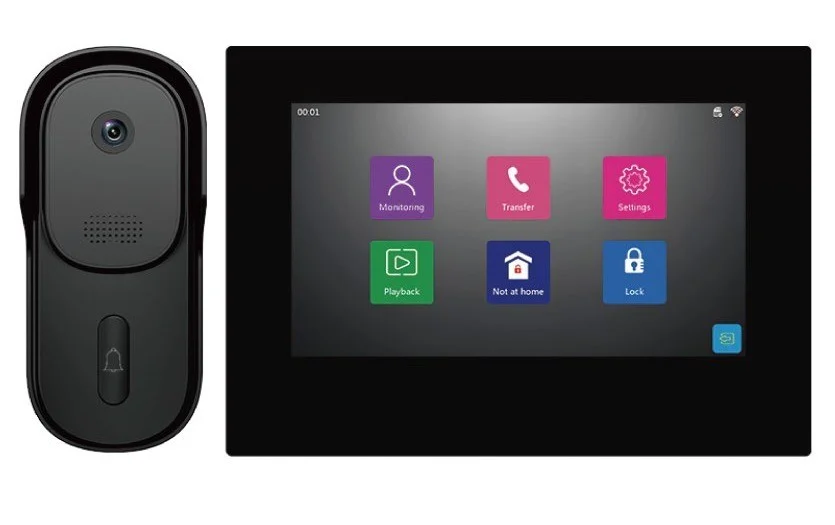

The AU-X SVDP71 Video Door Phone System features a 7-inch HD capacitive touch screen (1024×900 pixels) with two-way audio and 1920×1080 resolution. The outdoor unit boasts an IP65-rated waterproof design with powerful night vision and motion detection that sends alerts to your phone.

This system supports one-to-one intercom calls between indoor screens and mobile devices via 2.4GHz Wi-Fi (IEEE802.11b/g/n). With both cloud and micro SD card storage (up to 64GB), it records all visitor interactions while allowing remote door unlocking through the app.

Download Datasheet
Download Catalogue

Full HD Monitoring

1920×1080 resolution with 2MP CMOS camera

Dual Storage Options

Cloud and local micro SD card (64GB max) recording

Smart Alerts

Instant phone notifications for motion/doorbell presses

Technical Specifications

OUTDOOR UNIT
Camera2MP CMOS, 1/2.7" sensor
Resolution1920×1080 max
WeatherproofIP65 rated
PowerAC110-240V, 50/60Hz
NetworkRJ45 wired + 2.4GHz Wi-Fi
INDOOR UNIT

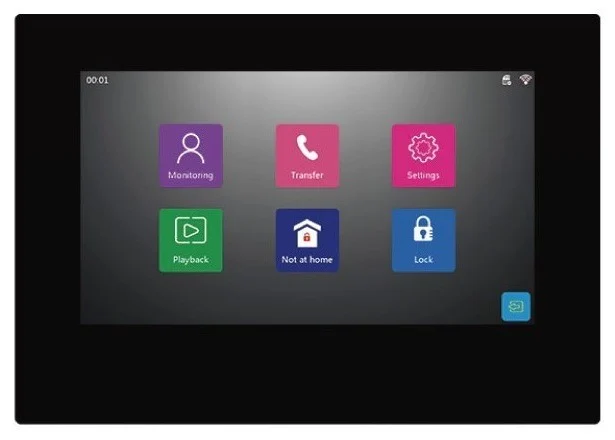

Screen7" capacitive touch (1024×900)
PowerDC 12V, 1.5A (±5%)
Languages7 languages supported
StorageCloud + micro SD (max 64GB)
Operating Temp.10°C to 45°C

Key Functional Modes

Intercom Mode

Real-time two-way communication with visitors.

  • Mobile/indoor screen call transfer
  • Hands-free talk option
  • Multi-screen support (1-to-many)
Security Mode

24/7 monitoring with smart alerts.

  • Motion-triggered recordings
  • Instant phone notifications
  • Night vision capability
Remote Control

Full system access via smartphone.

  • Remote door unlocking
  • Live video streaming
  • Storage management

Installation Guide

  • Pre-Installation: Test functionality before mounting.
  • Positioning: Avoid metal doors to prevent Wi-Fi interference.
  • Outdoor Unit: Use included screws or double-sided tape.
  • Wiring: Connect RJ45 and 12V power (AC110-240V input).
  • Indoor Unit: Secure to wall bracket with screws.
  • Network Setup: Configure Wi-Fi via pairing button.

Troubleshooting & FAQs

1
No video/image on indoor screen.
Check RJ45 connections and 12V power supply.
2
Motion alerts not working.
Ensure detection sensitivity is properly set in the app.
3
Wi-Fi connection drops.
Avoid metal obstructions and check router proximity (≤100m).
4
SD card not recognized.
Format card to FAT32 (max 64GB capacity).
